Schneider Electric NSYCRN108250P
Spacial CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It has a nominal height, width, and depth of 1000mm, 800mm, and 250mm, respectively The enclosure is…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

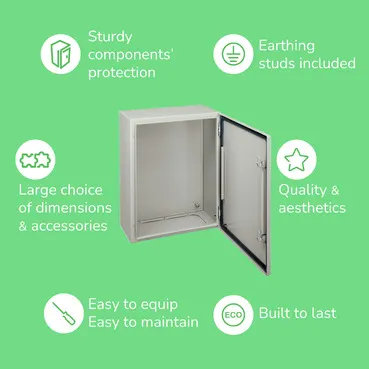

Spacial CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It has a nominal height, width, and depth of 1000mm, 800mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a door with a lock, a mounting plate, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside The door has a three-point lock with a 3mm double-bar insert The door, the cable gland plates, and the mounting plate can be removed for maintenance purposes The mounting plate is made of galvanised steel The net weight of the enclosure is 42kg It has been certified by cUL, UL, and DNV-GL The enclosure meets IEC 62208 standards, with an IK10 (IEC62262) rating and an IP66 rating (IEC60529)
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door with lock, 1 mounting plate, 2 cable gland plate: bottom |
| Door type | Plain |
| Mounting plate description | Plain |
| Body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, DNV-GL |
| Net weight | 42 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 81.500 cm |
| Package 1 Length | 101.500 cm |
| Package 1 Weight | 42.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 176.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 349.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
