Schneider Electric NSYCRN108250
Spacial CRN steel wall-mounting enclosure is a multi-purpose product designed to withstand harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and IP66 (IEC6052…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

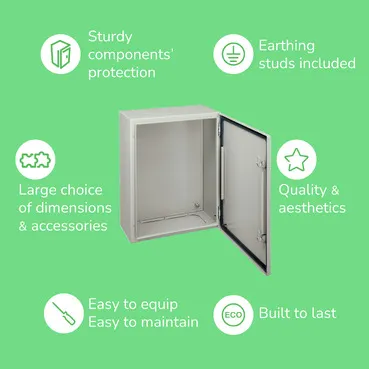

Spacial CRN steel wall-mounting enclosure is a multi-purpose product designed to withstand harsh environments It is certified by UL, cUL, and DNV-GL and has an IK10 (IEC62262) rating and IP66 (IEC60529) rating for high impact and dust/water resistance The enclosure has a nominal height, width, and depth of 1000mm, 800mm, and 250mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a three-point lock with a 3mm double-bar insert, and two cable gland plates The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 33kg The variant particularity of this enclosure is that the back is welded with double profile forming a protected sealed area and the sides are made from a single folded section
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT CRN |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
1000 mm |
| Enclosure nominal width |
800 mm |
| Enclosure nominal depth |
250 mm |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 2 cable gland plate: bottom |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Body type |
Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Type of gland plate |
Standard |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, cUL, DNV-GL |
| Net weight |
33 kg |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
27.000 cm |
| Package 1 Width |
81.000 cm |
| Package 1 Length |
101.000 cm |
| Package 1 Weight |
33.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
177.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
275.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
