Schneider Electric NSYCRN1010300D
Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1000x300mm, IP55, IK10, RAL7035
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

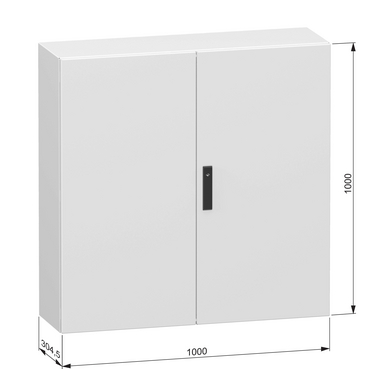

| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 lock, 2 cable gland plate: bottom, 2 door |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Body type | Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 5 mm double-bar |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL |
| Net weight | 50 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.000 cm |
| Package 1 Width | 102.500 cm |
| Package 1 Length | 102.500 cm |
| Package 1 Weight | 44.900 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 117.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 149.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
