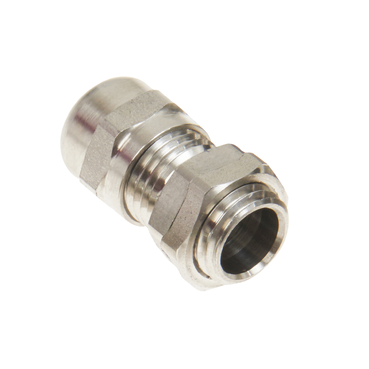

Schneider Electric NSYCGX25H
Set of cable gland + nut stainless steel M25 AISI316L, IP68, UL approved
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure top, Enclosure bottom |
| Cable entry | Cable gland M25 |
| Device composition | 1 cable gland, 1 lock nut, 1 seal |
| Quantity per set | Set of 4 |
| Material | Seal: CR (chloroprene), Body: stainless steel AISI 316L |
| Colour | Grey |
| Fixing mode | Screwed, By nut |
| Height | 35.5 mm |
| Net weight | 0.041 kg |
| Product certifications | VDE |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 50.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 6.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 200.000 g |
| Warranty | 18 months |
