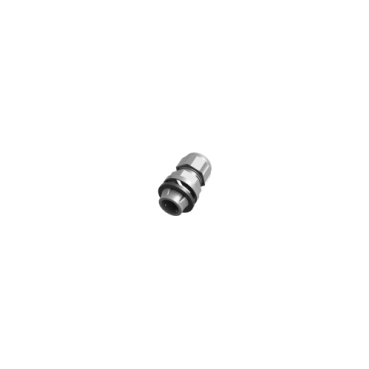

Schneider Electric NSYCGSP25
Cable gland SNAP-IN quick fixing M25, polyamide IP68 UL approved UV resistant
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT PLM, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure bottom, Enclosure top |
| Cable entry | Cable gland M25 |
| Device composition | 1 cable gland, 1 seal |
| Quantity per set | Set of 10 |
| Material | Seal: CR (chloroprene), Body: PA (polyamide) 6 |
| Colour | Grey (RAL 7035) |
| Fixing mode | Push and turn clockwise |
| Net weight | 0.022 kg |
| Product certifications | UL, VDE |
| Environmental characteristic | UV resistant |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -30…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 22.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 11.000 cm |
| Package 2 Width | 19.000 cm |
| Package 2 Length | 19.000 cm |
| Package 2 Weight | 568.000 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 70.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 90.000 kg |
| Warranty | 18 months |
