Schneider Electric NSYCAG45LP

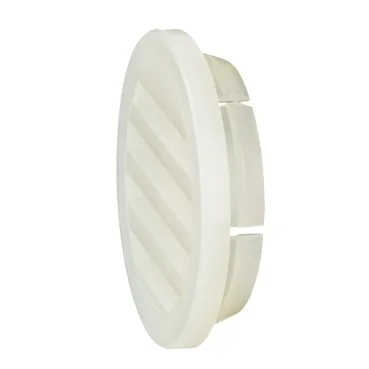

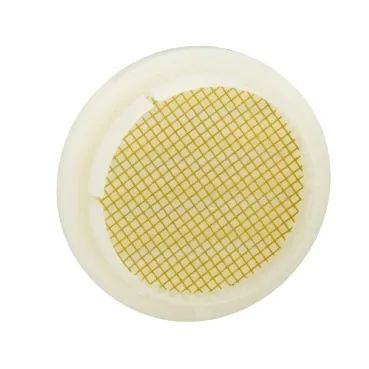

Plastic ventilation louvre 55,8 x 55,8mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 55,8mm Ingress prot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plastic ventilation louvre 55,8 x 55,8mm made from polyamide 6 for Thalassa PLS, Thalassa PLM and Thalassa TBS enclosures The kit is made of 2 plastic louvres The external width is 55,8mm Ingress protection rating (according to IEC 60529) is IP22 Fixing by clips Cut-out dimensions is 45,5mm Painted in white
Specification
| Range | ClimaSys |
|---|---|
| Product | ClimaSys CA |
| Range compatibility | Thalassa Thalassa PLS, Thalassa Thalassa PLM, Thalassa Thalassa TBS |
| Product or component type | Plastic ventilation louvre |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Fixing mode | Clipped |
| Device composition | 2 plastic louvre |
| Material | Polyamide 6 |
| Colour | White |
| Cut-out dimensions | 45.5 mm |
| Height | External: 55.8 mm |
| Width | External: 55.8 mm |
| Depth | External : 12.8 mm |
| IP degree of protection | IP22 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 25.000 g |
| Warranty | 18 months |
