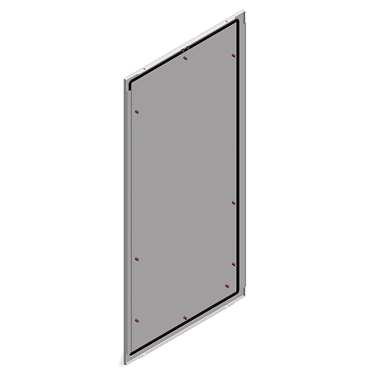

Schneider Electric NSYBP126
Rear panel made from grey steel (RAL 7035) for Spacial SF enclosures The nominal width is 600mm The nominal height is 1200mm The kit is made up of fixing elements and 1 rear panel Anti-corrosion prote…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Rear panel made from grey steel (RAL 7035) for Spacial SF enclosures The nominal width is 600mm The nominal height is 1200mm The kit is made up of fixing elements and 1 rear panel Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Rear panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | – |
| Mounting location | Rear of enclosure |
| Quantity per set | Set of 1 |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 1 rear panel |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws – screw type captive – from the outside of enclosure location |
| Height | Nominal: 1200 mm |
| Width | Nominal: 600 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 122.000 cm |
| Package 1 Width | 58.500 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 10.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 52.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 125.000 cm |
| Package 2 Weight | 113.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
