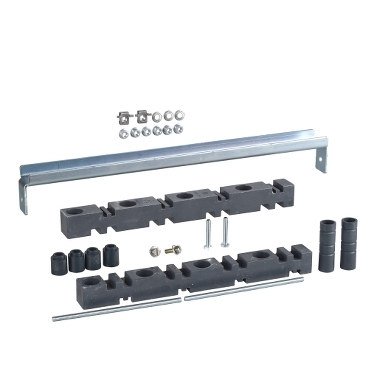

Schneider Electric NSYBHS500
Horizontal bar support up to 3200 A 500 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | – |
| Mounting location | On structure of enclosure |
| Mounting support | Vertical uprights |
| Busbar position | Horizontal |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy BS, Prisma Prisma PH, PanelSeT PanelSeT SFX |
| Cubicle-device connection | Linergy BS horizontal busbar – fixed |
| Device composition | Fixing elements, 1 metal support, 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element |
| Height | 59.25 mm |
| Width | Fixing centers: 410 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 42.000 cm |
| Package 1 Weight | 1.492 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 45.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 29.840 kg |
| Warranty | 18 months |
