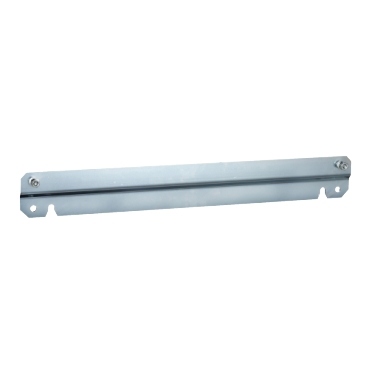

Schneider Electric NSYAEFPFS3DW60
Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 400 mm W: 600 mm D: 200 mm, – H: 400 mm W: 600 mm D: 250 mm, – H: 600 mm W: 600 mm D: 200 mm, – H: 600 mm W: 600 mm D: 250 mm, – H: 600 mm W: 600 mm D: 300 mm, – H: 600 mm W: 600 mm D: 400 mm, – H: 800 mm W: 600 mm D: 200 mm, – H: 800 mm W: 600 mm D: 250 mm, – H: 800 mm W: 600 mm D: 300 mm, – H: 800 mm W: 600 mm D: 400 mm, – H: 1000 mm W: 600 mm D: 250 mm, – H: 1000 mm W: 600 mm D: 300 mm, – H: 1000 mm W: 600 mm D: 400 mm, – H: 1200 mm W: 600 mm D: 300 mm, – H: 1200 mm W: 600 mm D: 400 mm |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT |
| Device composition | Fixing screws, 2 lug, 2 pre-mounted sealing gasket |
| Quantity per set | Set of 1 |
| Material | Zinc coated steel |
| Fixing mode | Screwed – screw type M8 – inside location |
| Permanent permissible load | 350 kg |
| Height | Fixing centers: 47 mm |
| Width | 600 mm |
| Depth | Wall-enclosure separation : 7.5 mm |
| Net weight | 2.004 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 1.922 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 38.440 kg |
| Warranty | 18 months |
