Schneider Electric NSYAEDH180S3D

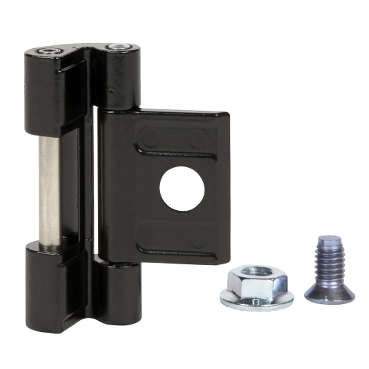

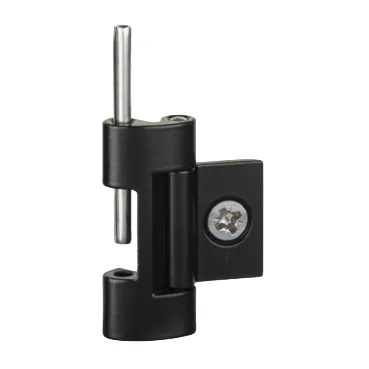

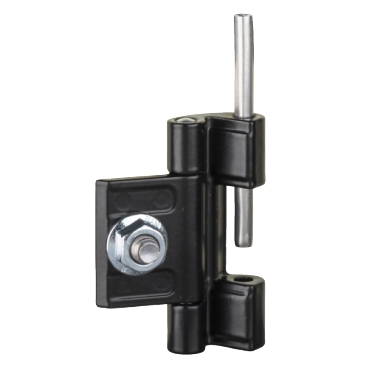

Door hinges for PanelSeT S3D enclosure, door opening: 180°.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Mounting location | Enclosure |
| Range compatibility | PanelSeT S3D enclosure |
| Device composition | Fixing elements, 1 x pin, 1 x hinge |
| Quantity per set | Set of 1 |
| Material | Pin: aluminium, Hinge body: zamak |
| Fixing mode | By screws – on enclosure body location |
| Operating angle | 180 ° |
| Maximum load | 20 kg/m² |
| Net weight | 0.052 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 50.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 20.000 cm |
| Package 2 Length | 30.000 cm |
| Package 2 Weight | 5.350 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 1000 |
| Package 3 Height | 100.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 54.000 kg |
| Warranty | 18 months |
