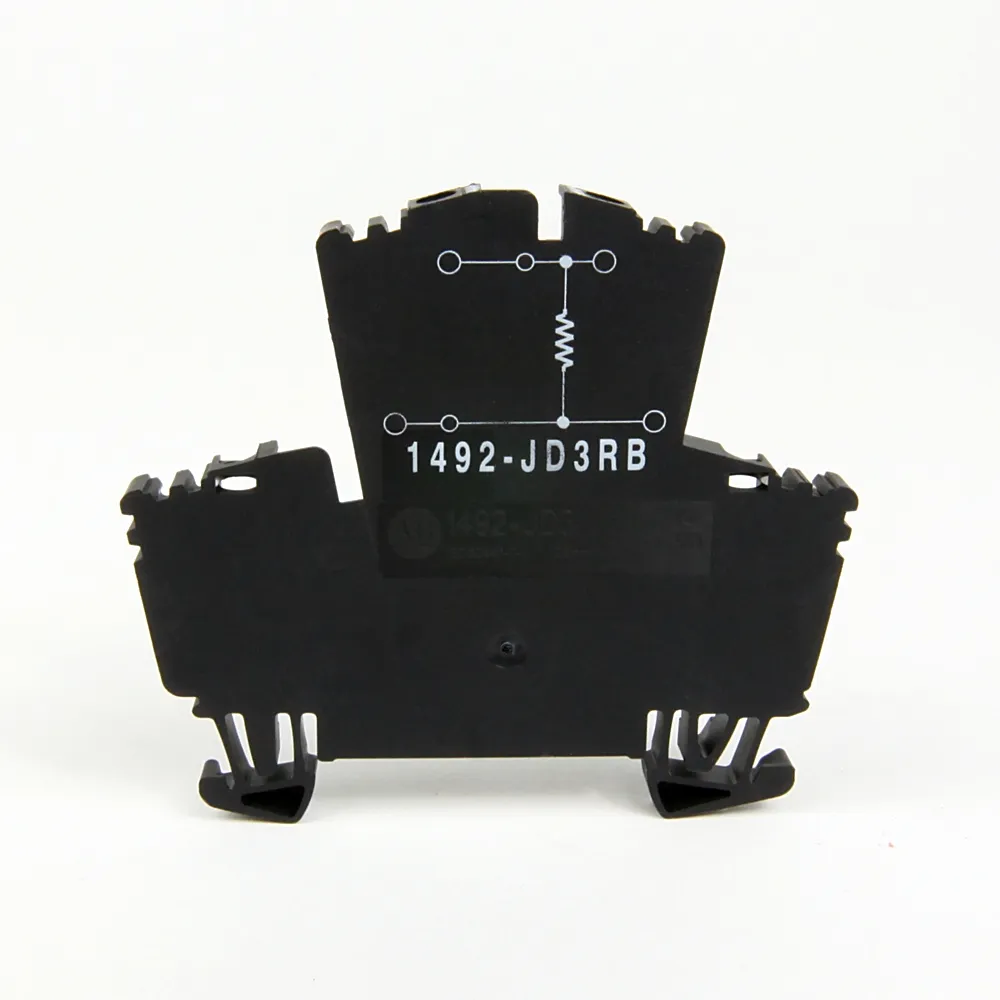

Rockwell Automation / Allen-Bradley 1492-JD3RB202
1492 IEC Screw Terminal Block
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
1492-J IEC Terminal Block, Two-Circuit Feed-Through Block, 2.5 mm (# 24 AWG – # 12 AWG), Two level block with a selectable resistor value between the 2 levels, Black (Standard), 2000 Ohm Resistance
Specification
| Hazardous Location Product Required? | No |
|---|---|
| Base Block Style | Internal Component Blocks |
| Base Block Type | Two-Circuit Feed-Through Block |
| Features | Two level block with a selectable resistor value between the 2 levels |
| Maximum Wire Size & Rating | UL: 22-12 AWG (20A Busbar @600V AC/DC) CSA: 26-12 AWG (10A Busbar @300V AC/DC) IEC: 2.5mm² @152V AC/DC |
| Color | Black (Standard) |
| Resistor Value | 2000 Ohm Resistance |
