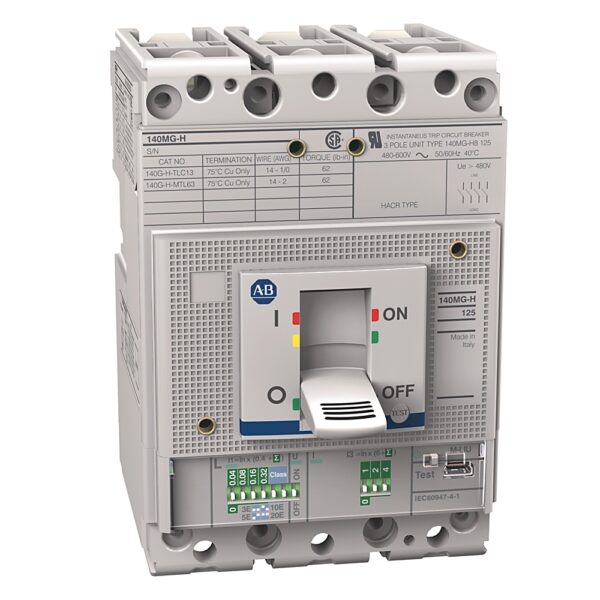

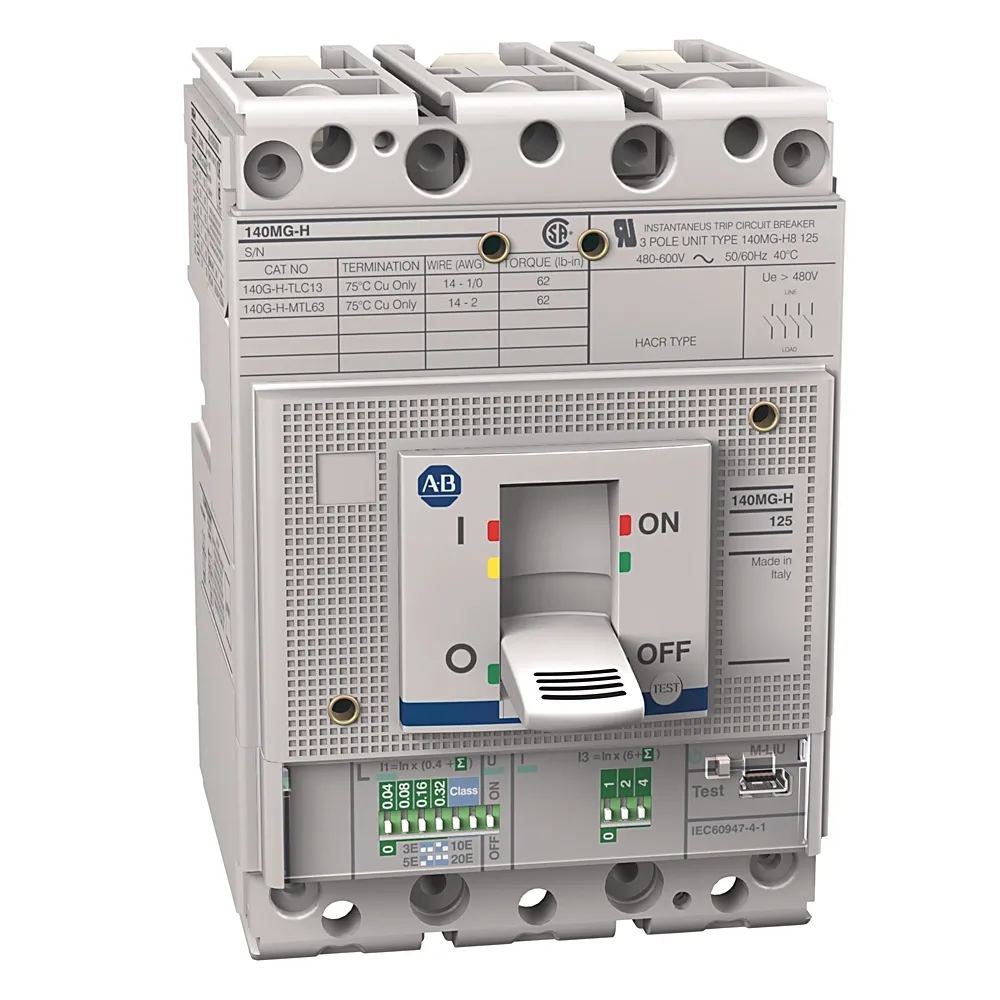

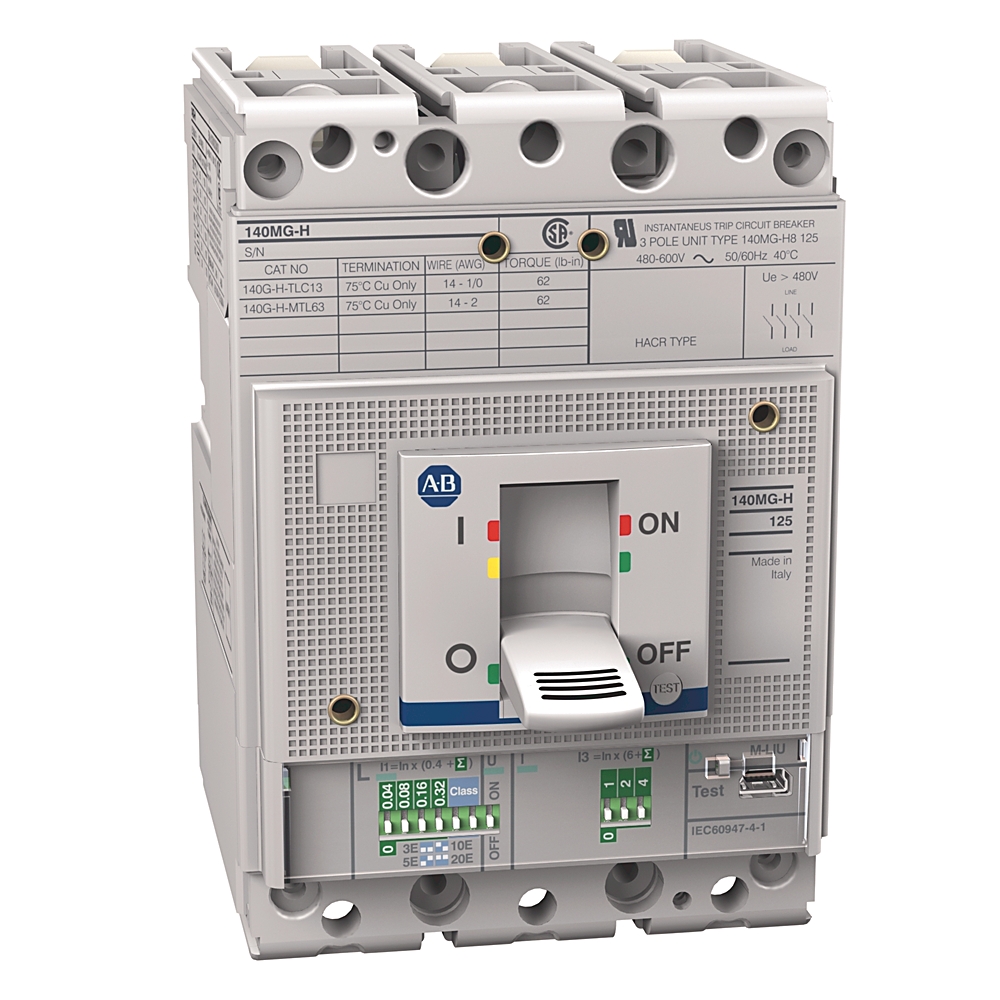

Rockwell Automation / Allen-Bradley 140MG-H8E-D10-SD-AJ-MT
140G 125A H Frame Mtr Protection Ckt-Bkr
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
140MG – Motor Protection Circuit Breakers, H frame, 35..65 kA at 480V, Thermal/Magnetic, TMD, Rated Current 100 A, Shunt Trip 110…127V AC/110…125V DC, 1 NO/NC AUX + Alarm, 24V, Standard Bus Bar Mount, Top Feed
Specification
| Bulletin Number | 140MG – Motor Protection Circuit Breakers |
|---|---|
| Protection Type | Thermal/Magnetic, TMD |
| Frame Size | H frame |
| Rated Operational Current Ie(A) | 100 A |
| Assembly | Factory Assembled |
| Shunt Trip(SNT) and Undervoltage Release(UVT), Left Side Mounting | Shunt open release |
| Control Voltage | 110…120V AC/DC |
| Auxiliaries(AX), Alarm (AL), Auxiliary/Alarm Combination(AX/AL), Right Side Mounting | (1)AX + (1)AL |
| Voltage for Aux Alarm Combination | 24V AC/DC |
| Busbar mounting adapter | Standard Bus Bar Mount, Top Feed |
