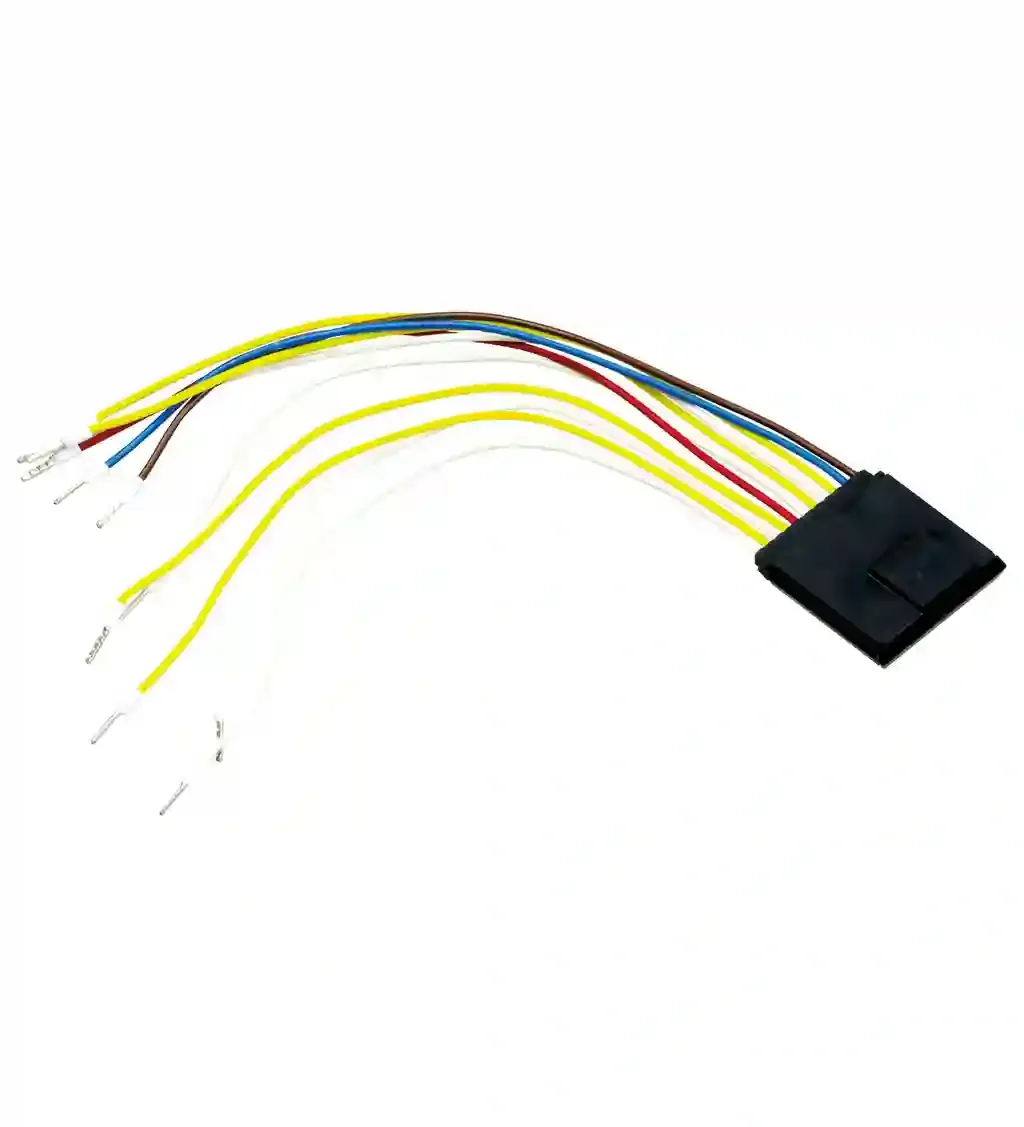

Pepperl Fuchs VBA-4E4A-CB10-ZJ/E1J-FL

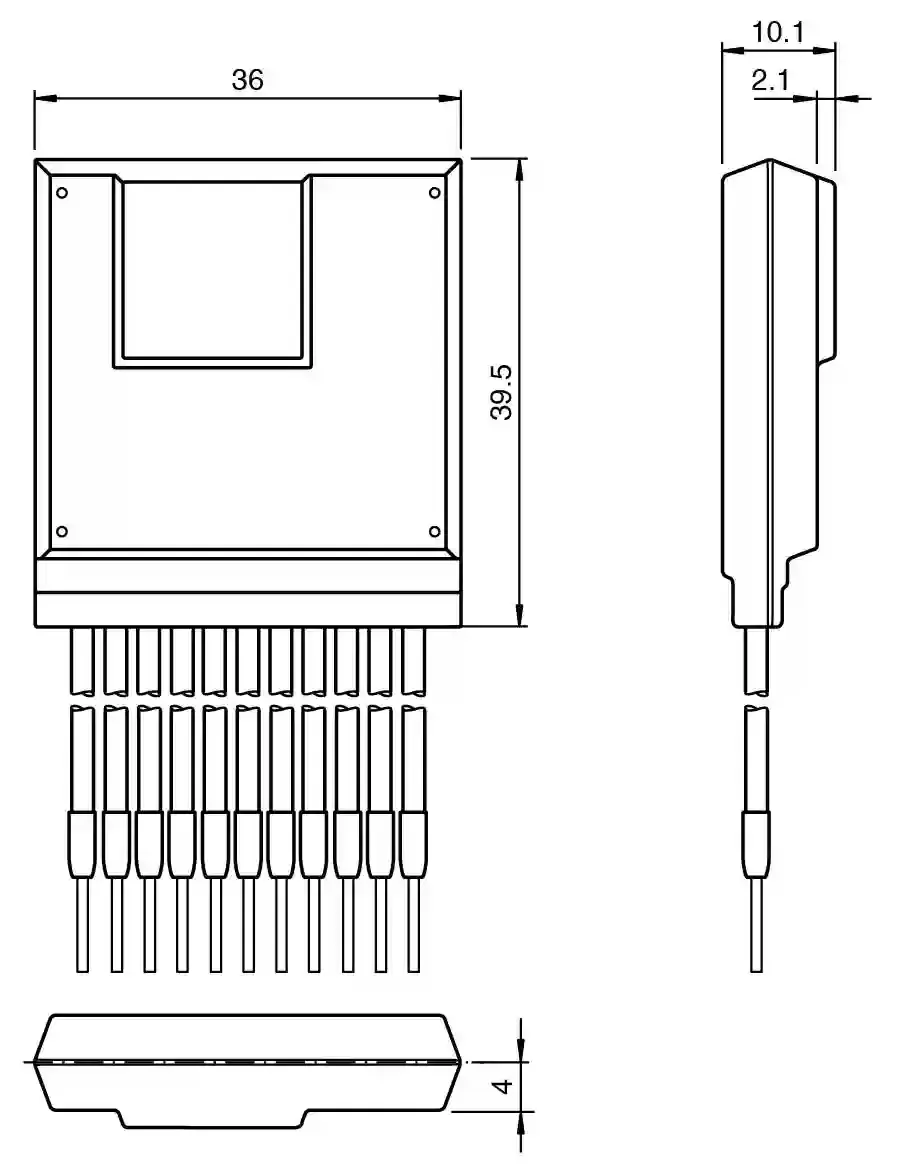

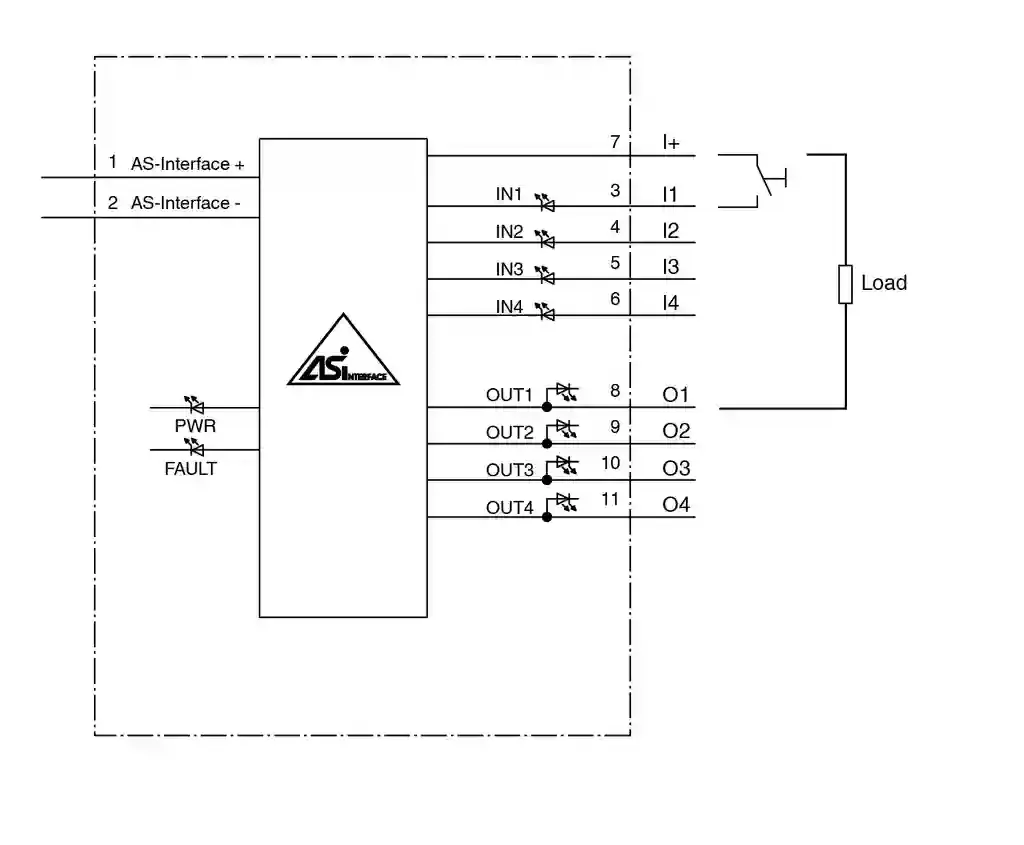

AS-Interface printed circuit board module. Printed circuit board module, 4 inputs/4 outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V3.0. UL File Number: E223772. MTBF: 267 a. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of outputs. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 4 LED yellow. Rated operating voltage: 26.5 … 31.6 V from AS-Interface (PELV). Rated operating current: ≤ 40 mA (without inputs/outputs)/max. 160 mA. Protection class: III. Surge protection: Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: 4 inputs for mechanical contacts. Supply: from AS-Interface. Voltage: 12 … 31 V. Input current: ≤ 4 mA (limited internally). Switching point: . 0 (unattenuated)≤ 0.15 mA1 (attenuated)≥ 1.3 mA: . 0 (unattenuated): ≤ 0.15 mA. 1 (attenuated): ≥ 1.3 mA. Signal delay: < 1 ms (input/AS-Interface). Number/Type: 4 electronic outputs, NPN, overload proof and short-circuit proof. Supply: from AS-Interface. Voltage: 12 … 31 V. Current: ≤ 100 mA per output, ≤ 100 mA total. Usage category: DC-1 "general use" (ohmic and weak inductive loads in accordance with IEC 60947). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Profile: S-7.A.7. IO code: 7. ID code: A. ID1 code: 7. ID2 code: 7. Data bits (function via AS-Interface): InputOutput. D0 IN1 OUT1D1 IN2 OUT2D2 IN3 OUT3D3 IN4 OUT4: . D0: IN1 OUT1. D1: IN2 OUT2. D2: IN3 OUT3. D3: IN4 OUT4. Parameter bits (programmable via AS-i): function. P0not usedP1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings)P3not used: . P0: not used. P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings). P3: not used. UL approval: Protection class IP20 is not included in the UL approval. The protection class is tested by Pepperl+Fuchs.. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 5000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 … 57 Hz , 5 g, 57 Hz … 150 Hz, 10 cycles. Pollution degree: 2. Degree of protection: IP20 according to EN 60529. Connection: 200 mm, PVC cable 0.5 mm2. Material: . HousingPolyamide hot-melt adhesive: . Housing: Polyamide hot-melt adhesive. Mass: 33 g. Dimensions: . Height10 mmWidth36 mmLength39.5 mm: . Height: 10 mm. Width: 36 mm. Length: 39.5 mm. Note: This device is maintenance-free. If the device is used in a manner not specified by the manufaturer, the protection provided by the device may be impaired.
