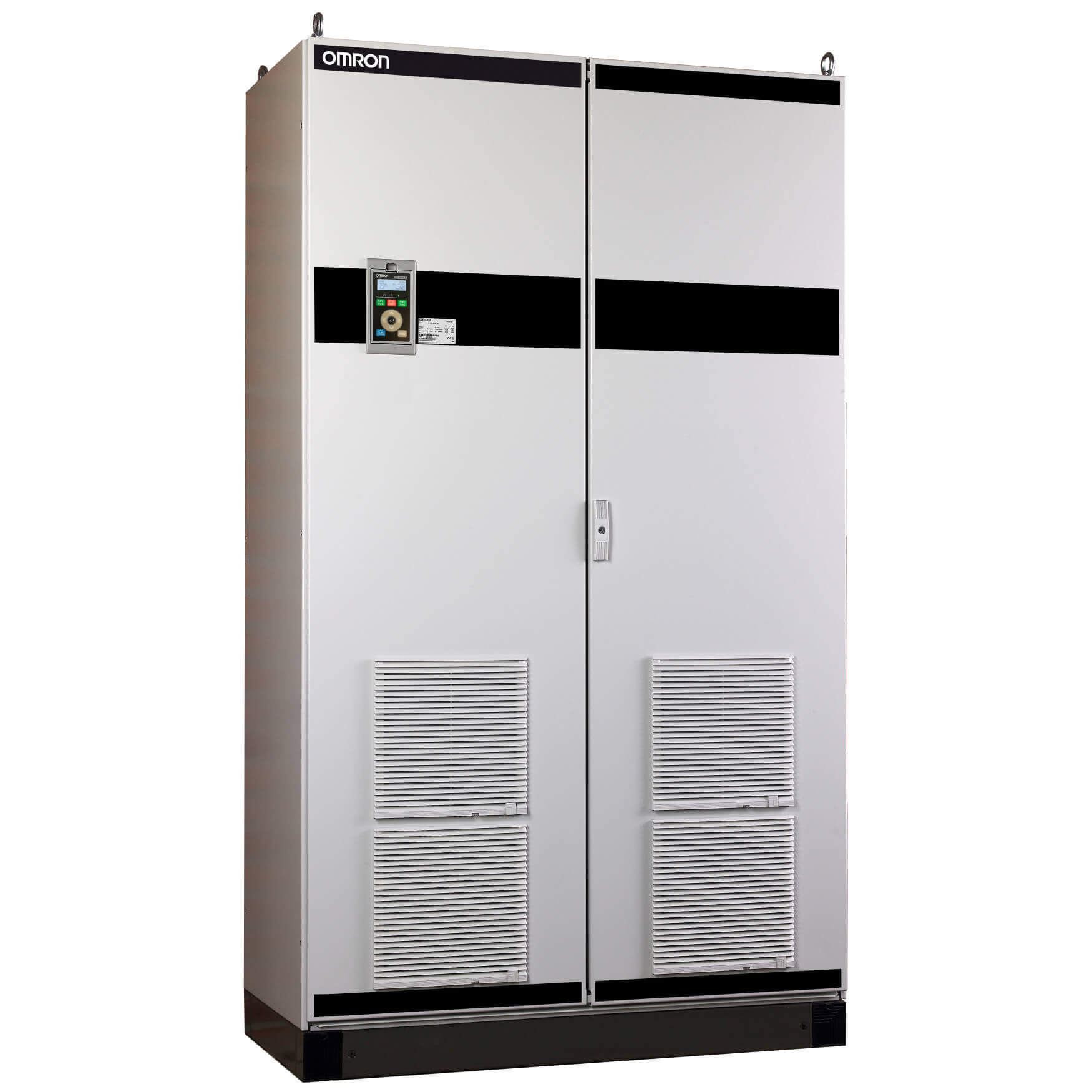

Omron SX-A4355-EVA4
SX inverter IP20, 355 kW, 3~ 400 VAC, V/f drive, built-in filter, max. output freq. 400 Hz
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SX inverter IP20, 355 kW, 3~ 400 VAC, V/f drive, built-in filter, max. output freq. 400 Hz
Specification
| Drive control method | V/f control |
|---|---|
| Drive supply voltage | 400 V three phase |
| Max. motor output at variable torque | 355 kW |
| Max. motor output at constant torque | 315 kW |
| Built in EMC filter | Yes |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication option(s) | Bluetooth, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MODBUS Slave, MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave, Serial RS-232C, Serial RS-485 |
| Product Height (unpacked) | 1036 mm |
| Product Width (unpacked) | 730 mm |
| Product Depth (unpacked) | 450 mm |
| Product Weight (unpacked) | 248000 g |
