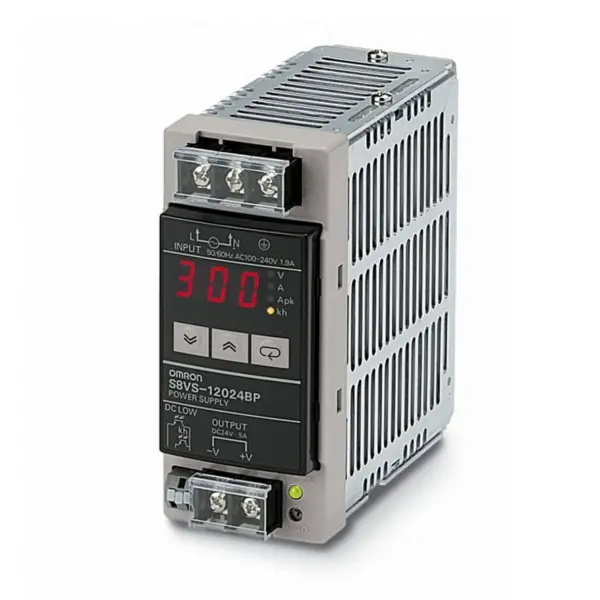

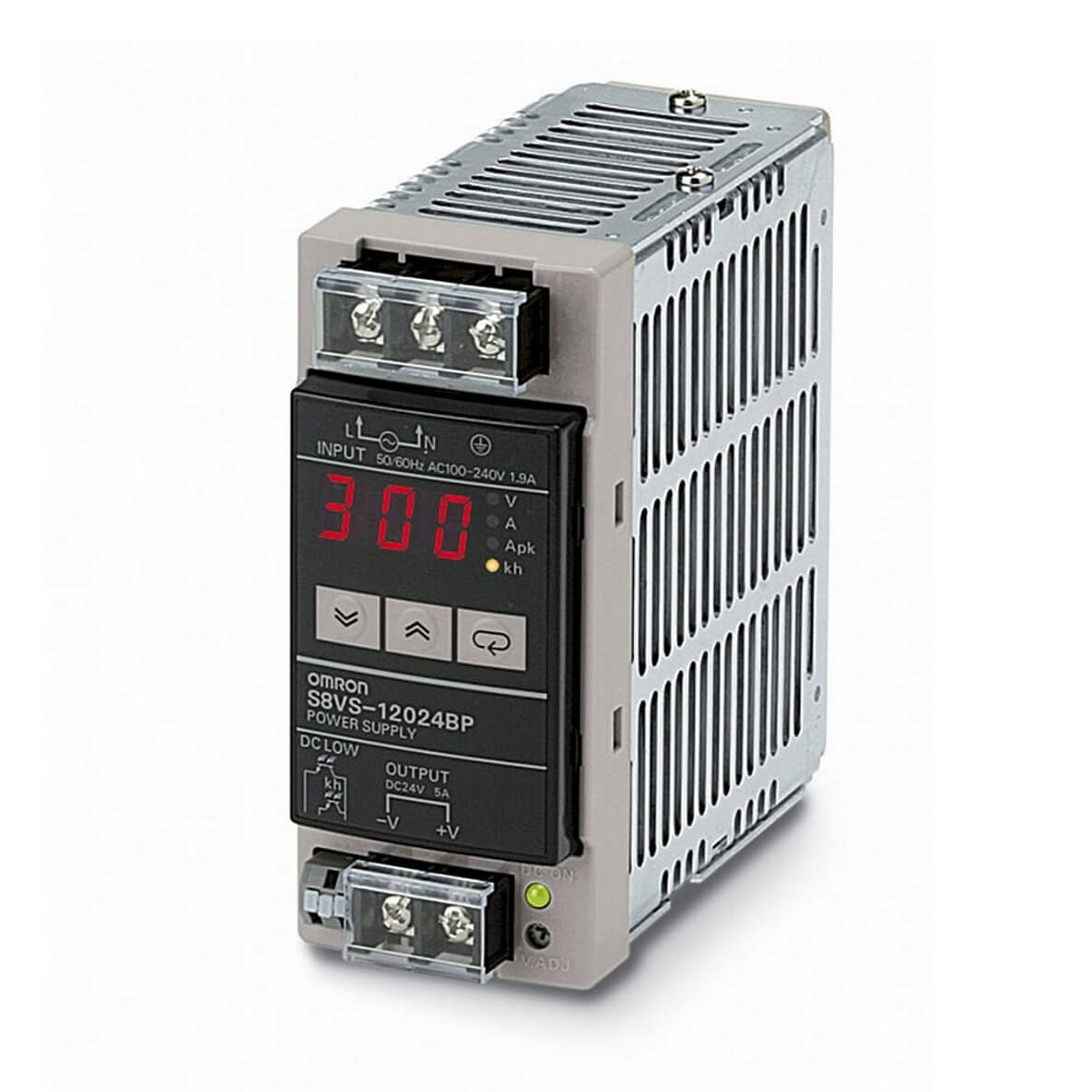

Omron S8VS-12024BP
Power supply, 120 W, 100-240 VAC input, 24 VDC, 5 A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply, 120 W, 100-240 VAC input, 24 VDC, 5 A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Specification
| Type | DIN-rail |
|---|---|
| Mounting method | DIN rail |
| Phase | Single |
| Output voltage | 24 V |
| Power output | 120 W |
| Efficiency | 85 % |
| Rated output current | 5 A |
| Temperature range | 25-85 °C |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | Transistor – sourcing |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 50 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 121.3 mm |
