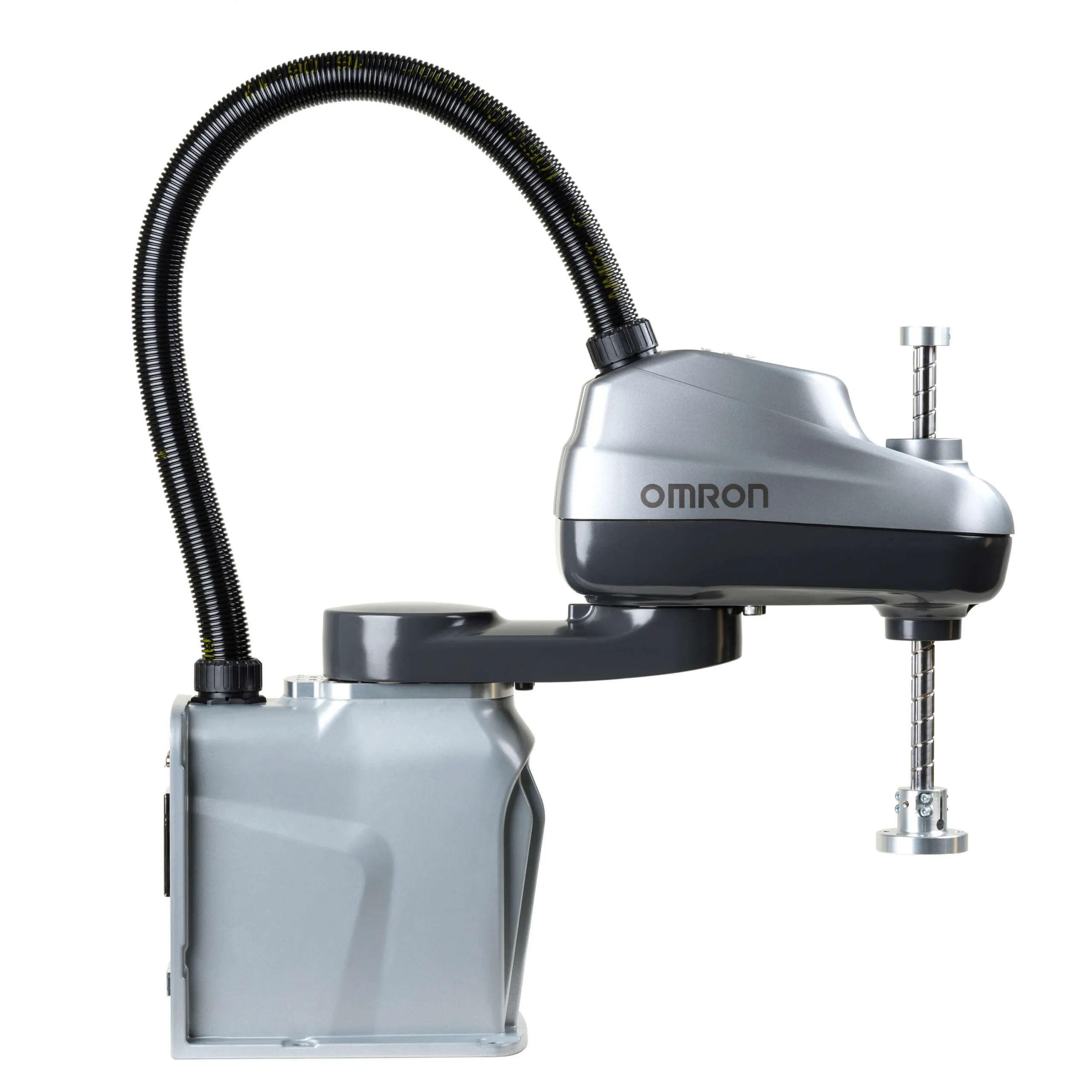

Omron RS4-2063002
i4-350L, 5 kg payload, 350 mm reach, 4 axis, 180 mm Zaxis, Rear Panel, IP20, iCS-ECAT
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
i4-350L, 5 kg payload, 350 mm reach, 4 axis, 180 mm Zaxis, Rear Panel, IP20, iCS-ECAT
Specification
| Robot type | Scara |
|---|---|
| Robot controller | Robotics Integrated Controller |
| Degree of protection (IP) | IP20 |
| Payload | 5 kg |
| Reach | 350 mm |
| Z-Stroke | 180 mm |
| Cycle time | 0.54 s |
| Moment of inertia | 500 kg·cm² |
| Repeatability | 0.01 mm |
| Degrees of freedom | 4 |
| Number of joints | 4 |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| EtherCAT communication | Yes |
| PROFINET communication | No |
| TCP/IP communication | Yes |
| RS232 communication | No |
| Vision | Yes |
| Conveyor tracking | Yes |
| PackXpert | Yes |
| I/O-Blox | Yes |
| Number of I/O-Blox | 4 |
