Fast delivery within 72 Hours

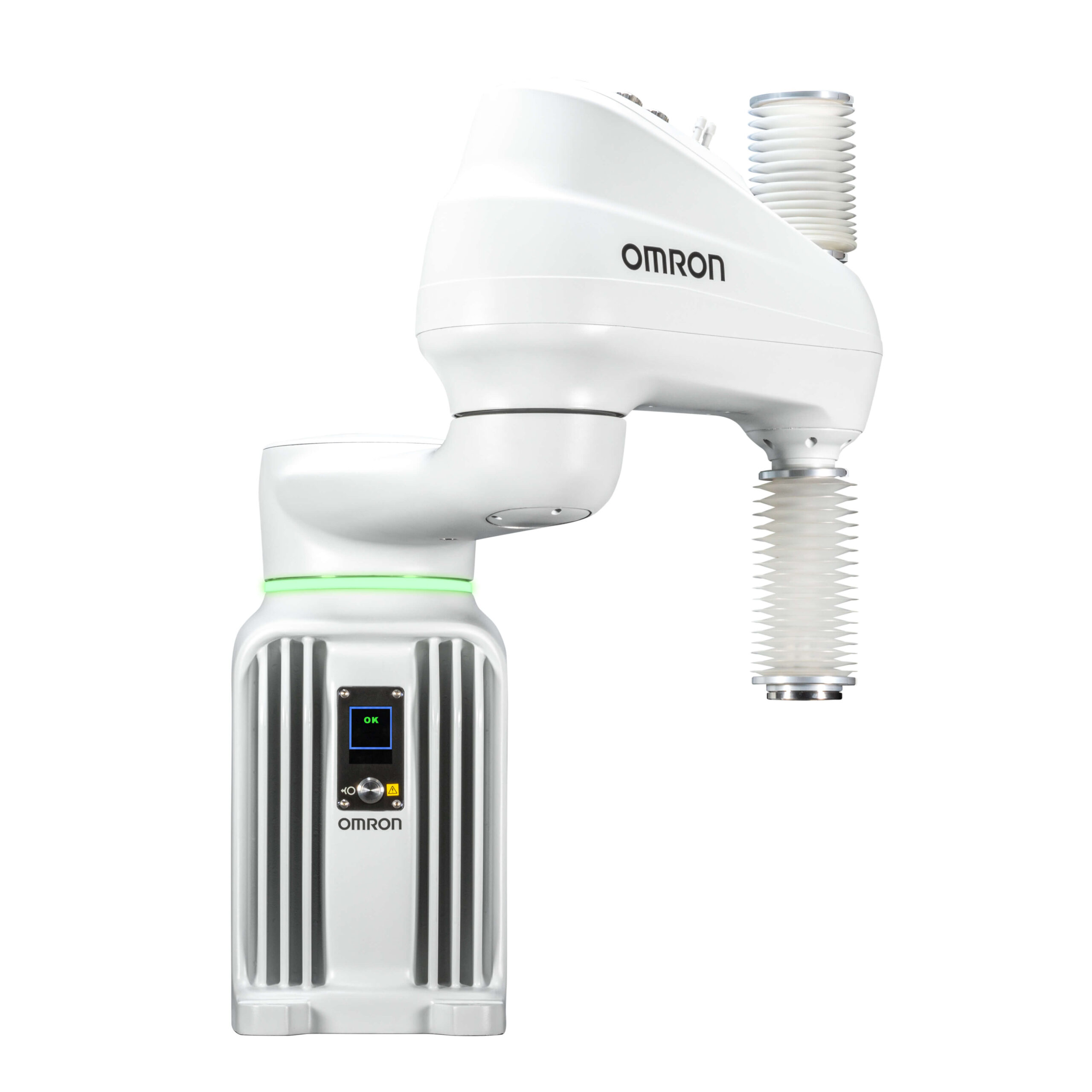

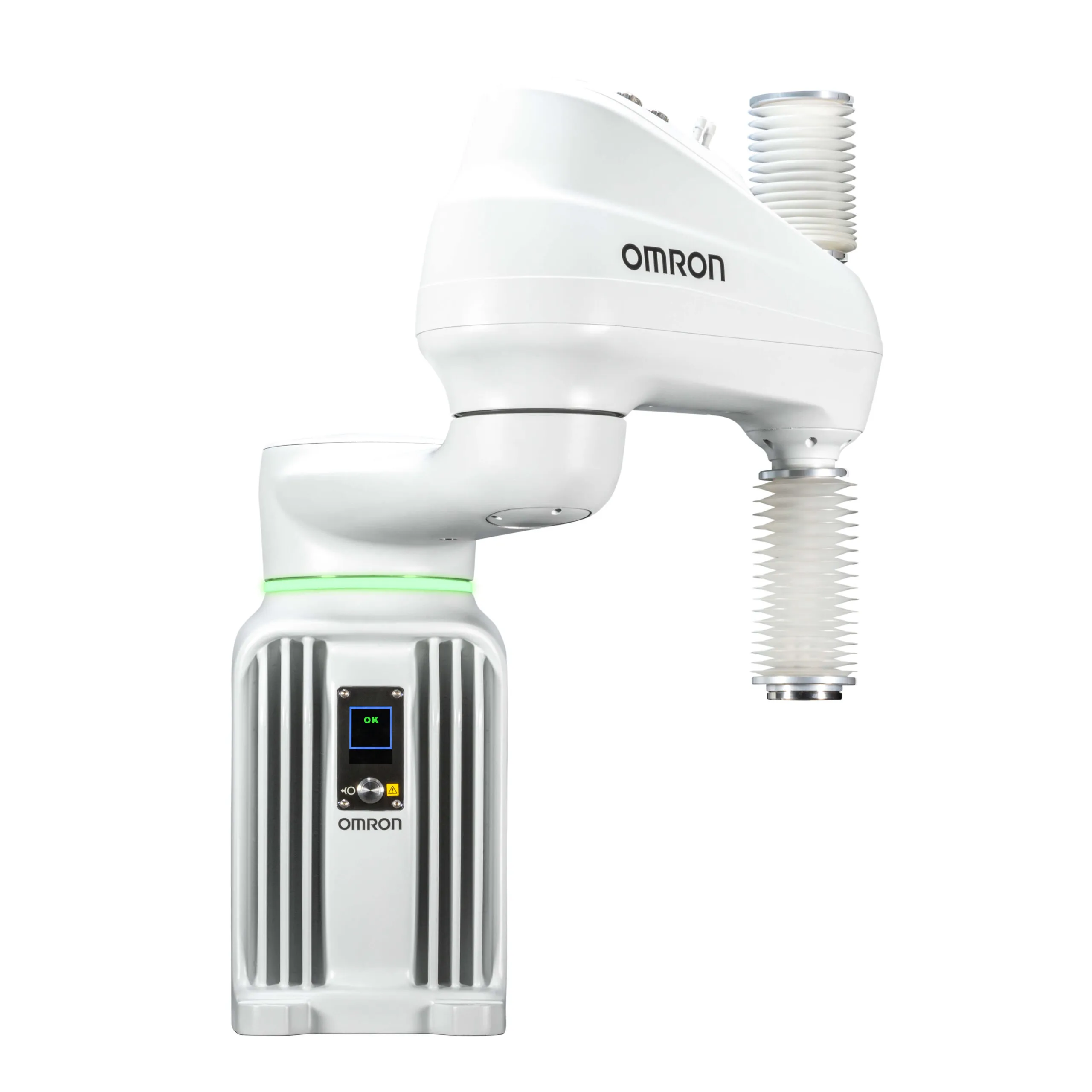

Omron RS4-2056714
i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, CR/ESD, iCS-ENET
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
i4-650H, 15 kg payload, 650 mm reach, 4 axis, 410 mm Zaxis, Inverted Mount, CR/ESD, iCS-ENET
Specification
| Robot type | Scara |
|---|---|
| Robot controller | Not required |
| Degree of protection (IP) | IP20 |
| Payload | 15 kg |
| Reach | 650 mm |
| Z-Stroke | 410 mm |
| Cycle time | 0.37 s |
| Moment of inertia | 5000 kg·cm² |
| Repeatability | 0.015 mm |
| Degrees of freedom | 4 |
| Number of joints | 4 |
| Food grade grease | No |
| ESD protection | Yes |
| Suitable for pedestal/floor mounting | No |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | Yes |
| EtherCAT communication | No |
| PROFINET communication | Yes |
| TCP/IP communication | Yes |
| RS232 communication | Yes |
| Vision | Yes |
| Conveyor tracking | Yes |
| PackXpert | Yes |
| I/O-Blox | Yes |
| Number of I/O-Blox | 4 |
