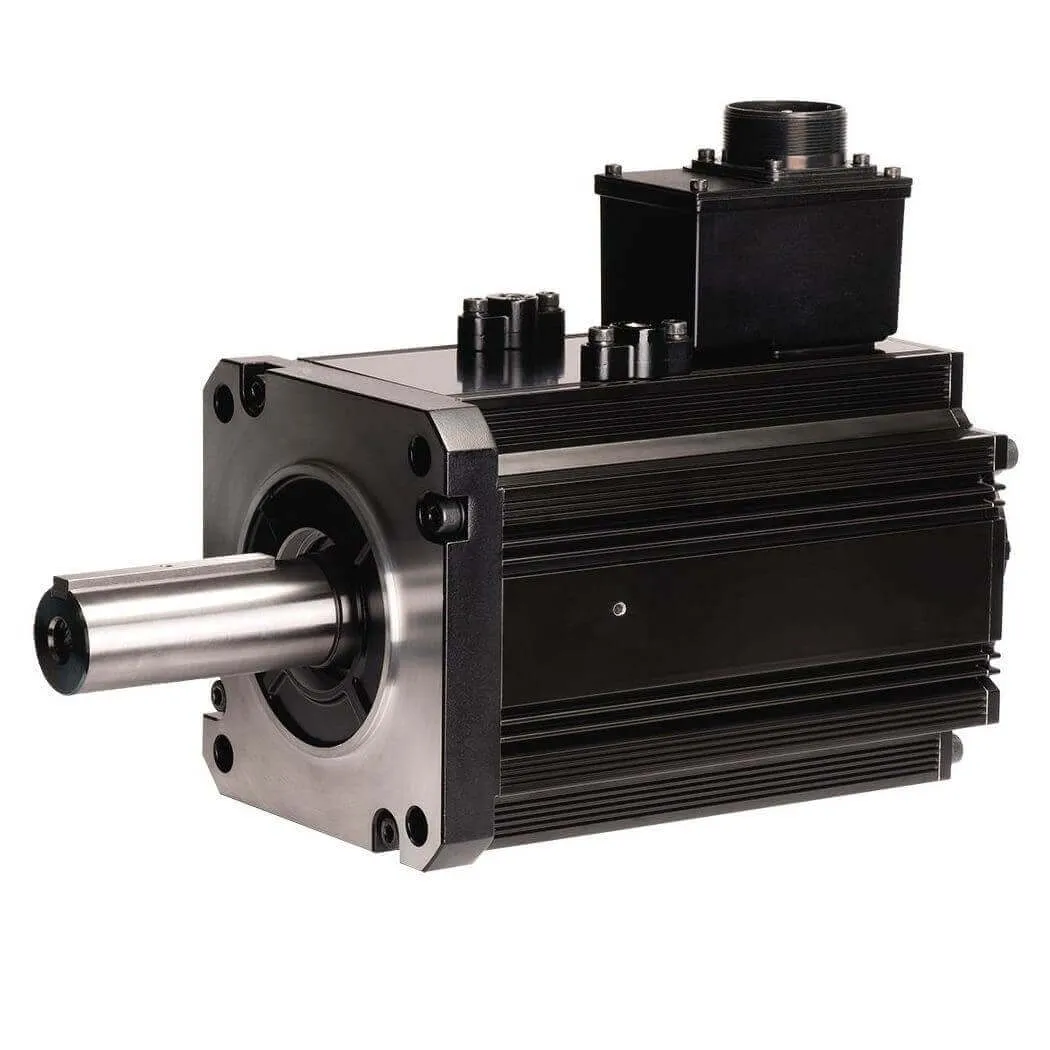

Omron R88M-K4K510C-BOS2
G5 series AC servo motor, 4.5 kW, 400 VAC, 1000 rpm, 43 Nm, Absolute encoder, with brake, with oil seal
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
G5 series AC servo motor, 4.5 kW, 400 VAC, 1000 rpm, 43 Nm, Absolute encoder, with brake, with oil seal
Specification
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
|---|---|
| Drive supply voltage | 400 V three phase |
| Rated output | 4.5 kW |
| Rated speed | 1000 r/min |
| Rated torque | 43 Nm |
| Peak torque | 107 Nm |
| Encoder type | Absolute with battery |
| Encoder resolution | 17 Bit |
| Motor with brake | Yes |
| Motor with oil seal | Yes |
| Flange size square (LC) | 176 mm |
| Shaft diameter | 42 mm |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 33300 g |
