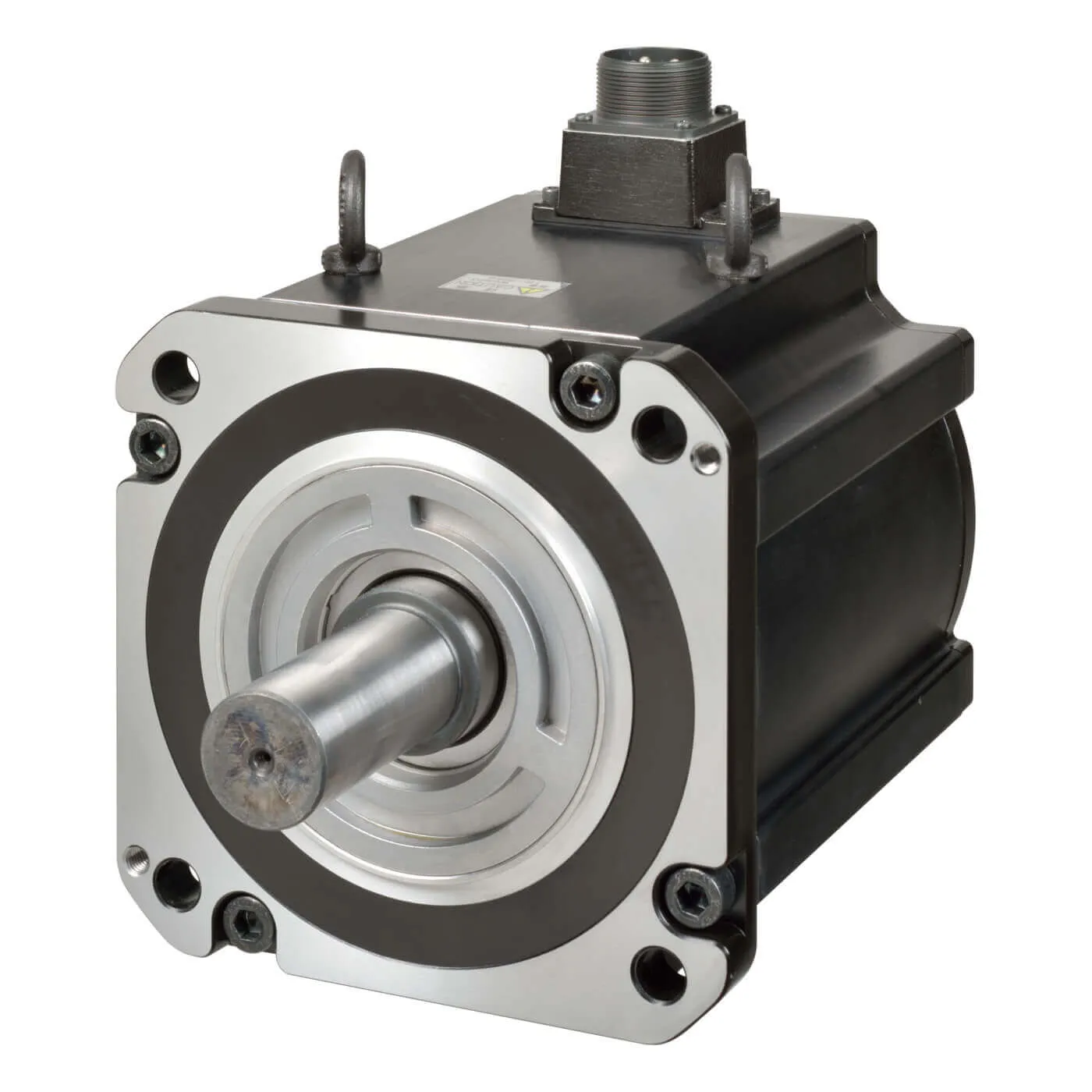

Omron R88M-1M15K015C-S2
1S AC servo motor, 15 kW, 400 VAC, 1500 rpm, 95.5 Nm, absolute encoder
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
1S AC servo motor, 15 kW, 400 VAC, 1500 rpm, 95.5 Nm, absolute encoder
Specification
| Servo control method | EtherCAT |
|---|---|
| Drive supply voltage | 400 V three phase |
| Rated output | 15 kW |
| Rated speed | 1500 r/min |
| Rated torque | 95.5 Nm |
| Peak torque | 224 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | No |
| Motor with oil seal | No |
| Flange size square (LC) | 220 mm |
| Shaft diameter | 55 mm |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 85000 g |
