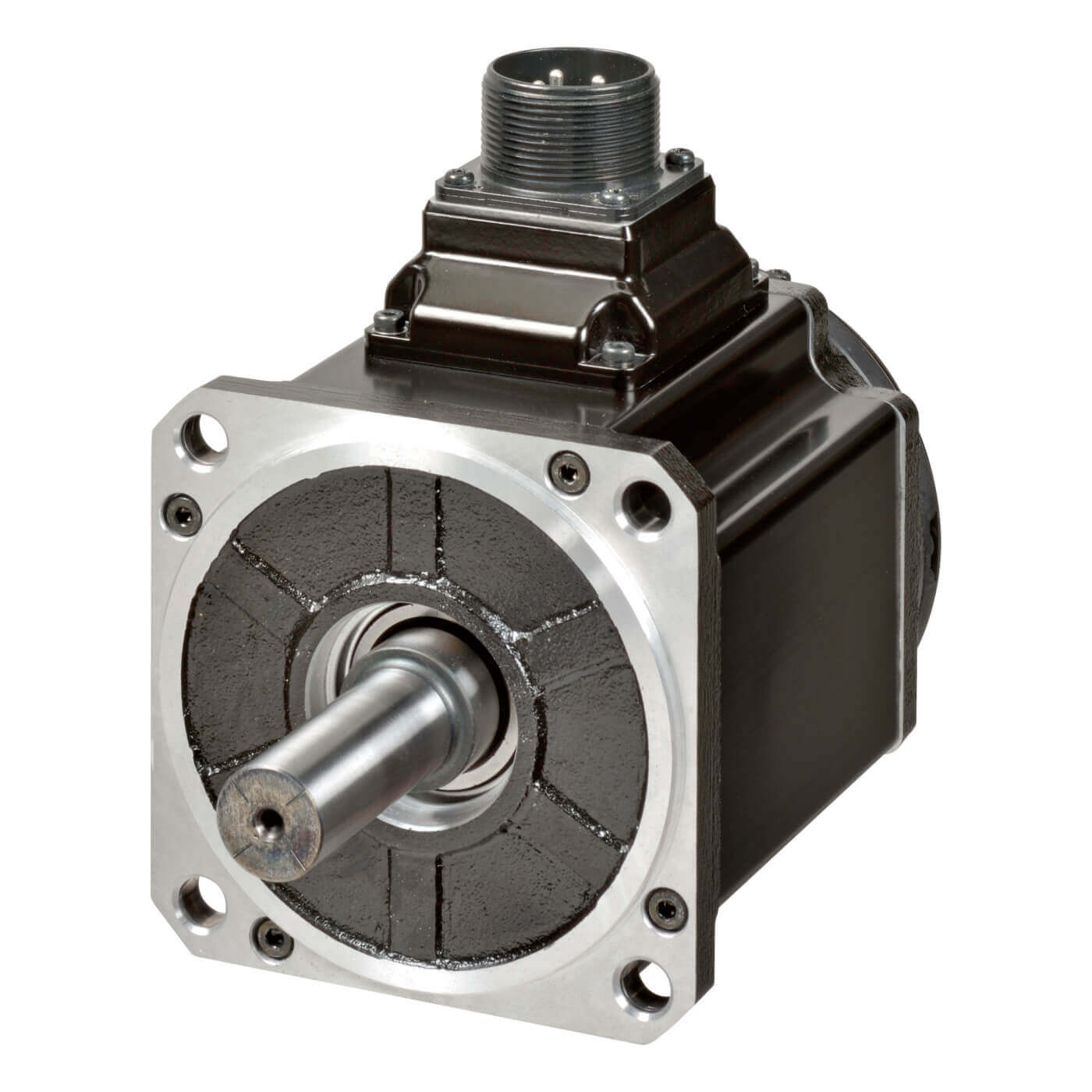

Omron R88M-1L1K530H-BS2
1S AC servo motor, 1.5 kW, 230 VAC, 3000 rpm, 4.77 Nm, incremental encoder, with brake
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
1S AC servo motor, 1.5 kW, 230 VAC, 3000 rpm, 4.77 Nm, incremental encoder, with brake
Specification
| Servo control method | EtherCAT |
|---|---|
| Drive supply voltage | 230 V single phase |
| Rated output | 1.5 kW |
| Rated speed | 3000 r/min |
| Rated torque | 4.77 Nm |
| Peak torque | 14.3 Nm |
| Encoder type | Incremental |
| Encoder resolution | 23 Bit |
| Motor with brake | Yes |
| Motor with oil seal | No |
| Flange size square (LC) | 100 mm |
| Shaft diameter | 19 mm |
| Shaft with key | Yes |
| Shaft with tap | Yes |
| Product Weight (unpacked) | 7400 g |
