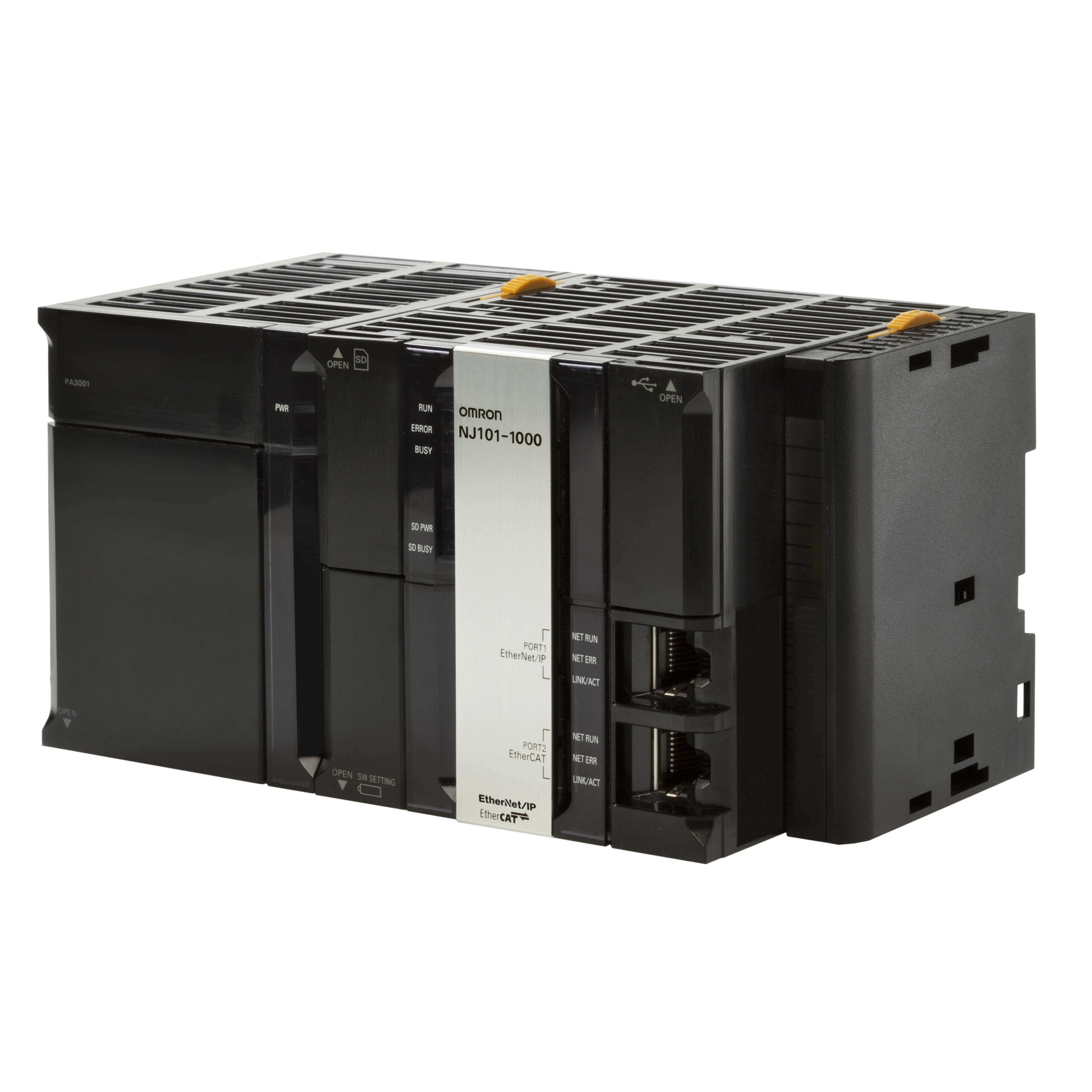

Omron NJ101-1020
Sysmac NJ1 CPU with with Database Connectivity, 3MB memory, built-in EtherCAT (2 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sysmac NJ1 CPU with with Database Connectivity, 3MB memory, built-in EtherCAT (2 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP
Specification
| Controller functionality | DB connection, Motion control, Sequence control |
|---|---|
| Max. number of synchronous axes | 2 |
| Max. number of axes (incl. virtual) | 6 |
| Primary task cycle time | 1 ms |
| Program memory | 3 MB |
| Variables memory | 0.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Product Height (unpacked) | 97.5 mm |
| Product Width (unpacked) | 90 mm |
| Product Depth (unpacked) | 90 mm |
| Product Weight (unpacked) | 550 g |
