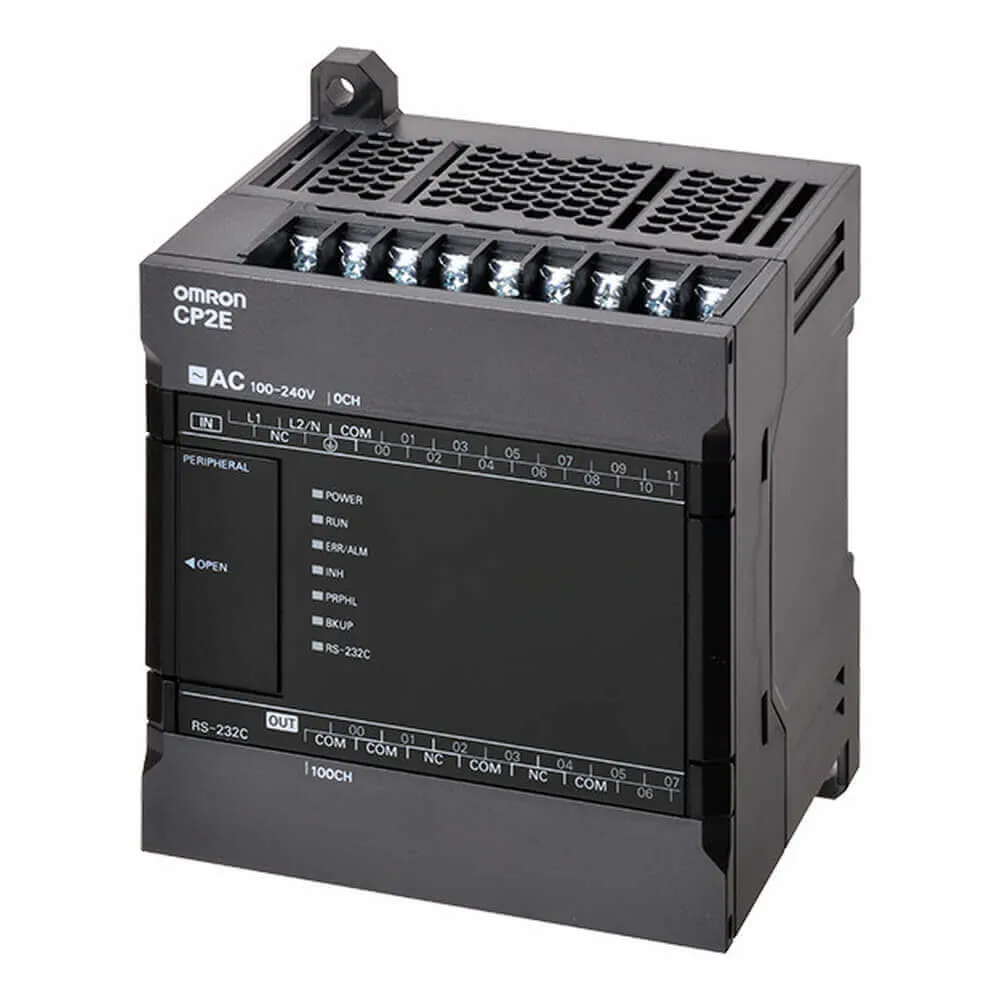

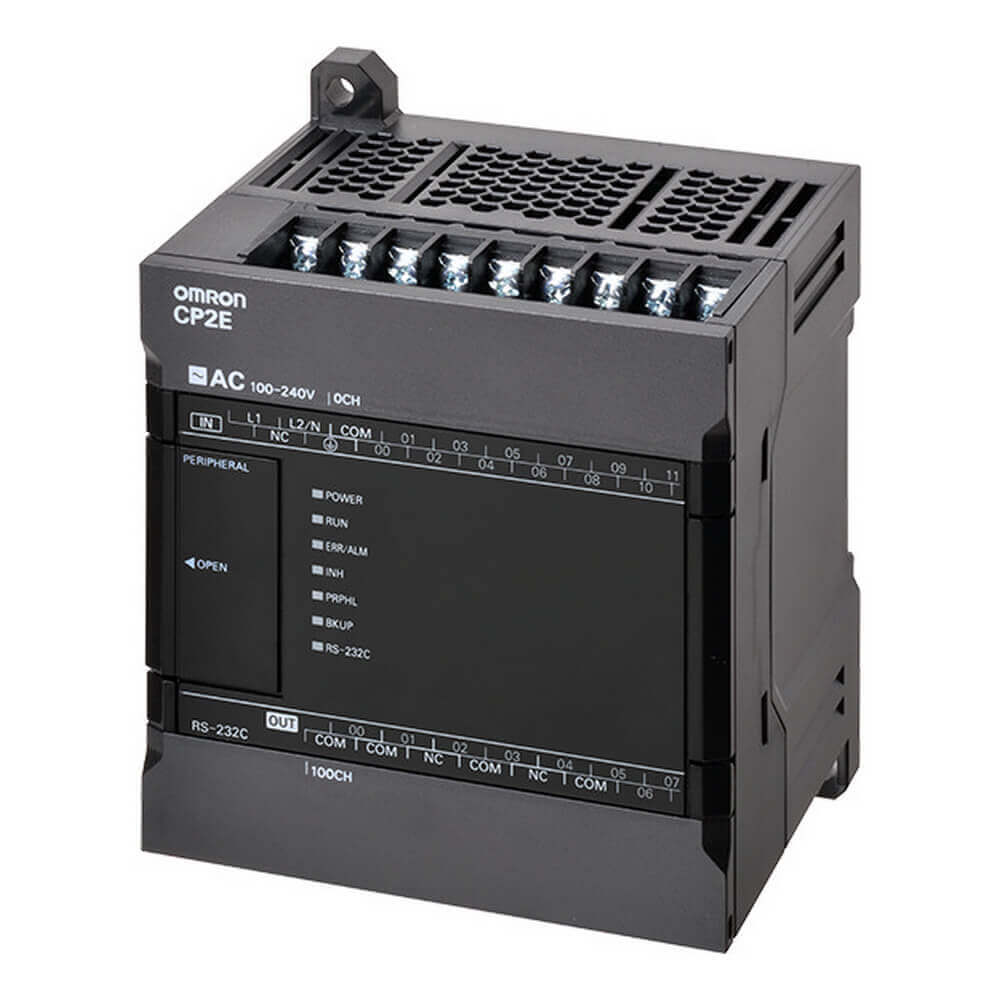

Omron CP2E-E14DR-A
CP2E series compact PLC – Essential Type; 8 DI, 6DO; Relay output; Power supply 220 VAC; 4 kStep Program memory
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CP2E series compact PLC – Essential Type; 8 DI, 6DO; Relay output; Power supply 220 VAC; 4 kStep Program memory
Specification
| Supply voltage type | AC |
|---|---|
| Input type | PNP/NPN |
| Number of digital inputs | 8 |
| Output type | Relay |
| Number of digital outputs | 6 |
| Program capacity | 8 K steps |
| Data memory capacity | 4 K words |
| Logic execution time | 0.23 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of Ethernet ports | |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | |
| Communication option(s) | None |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | Yes |
| Battery-free memory backup | Yes |
| Real-time clock | No |
| Analogue option boards | No |
| Max. number of analogue I/O channels | |
| Max. number of local I/O points | 14 |
| Max. number of expansion units | |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | -20-60 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 86 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 405 g |
