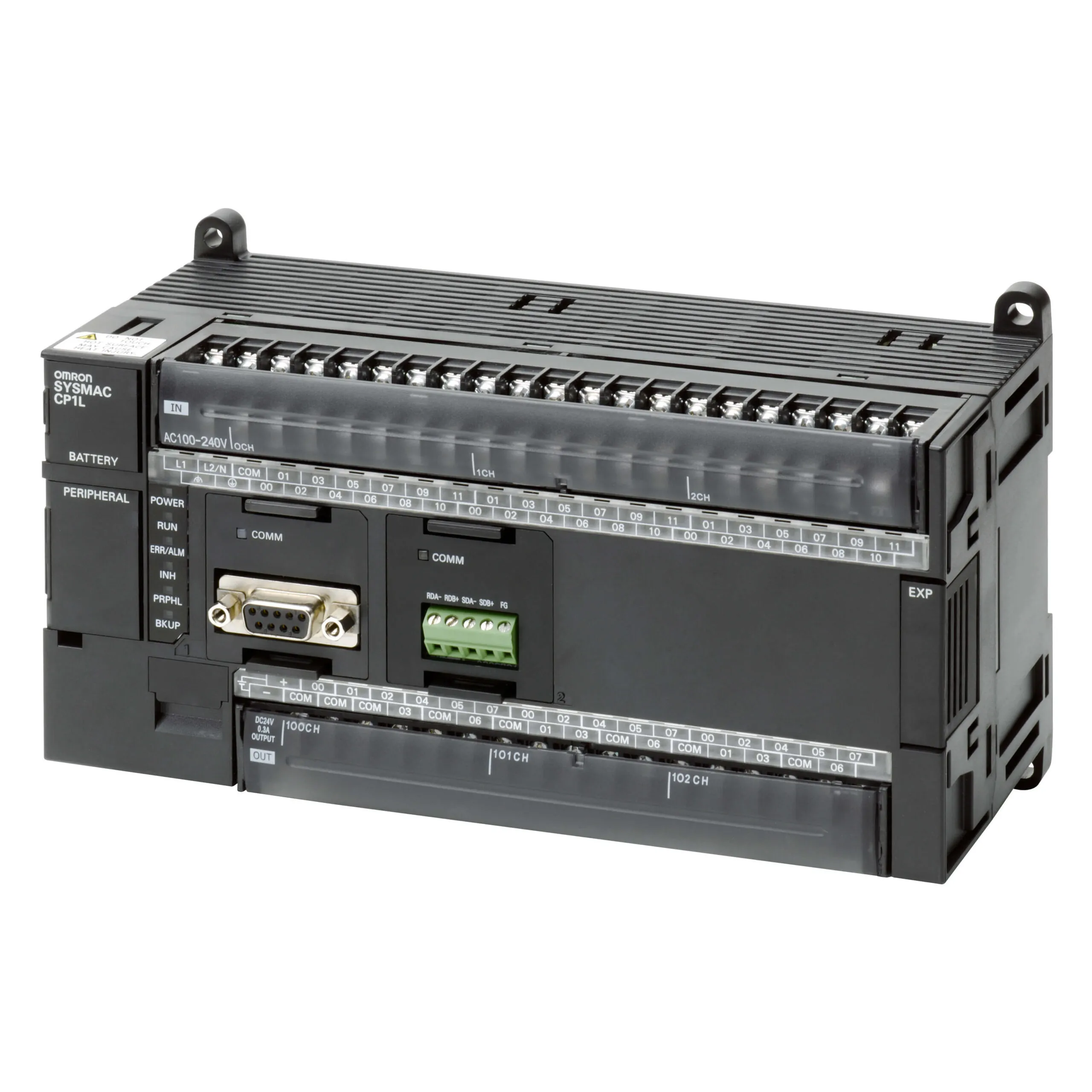

Omron CP1L-M60DT1-D
PLC, 24 VDC supply, 36 x 24 VDC inputs, 24 x PNP outputs 0.3 A, 10K steps program + 32K words data memory
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PLC, 24 VDC supply, 36 x 24 VDC inputs, 24 x PNP outputs 0.3 A, 10K steps program + 32K words data memory
Specification
| Supply voltage type |
DC |
|---|---|
| Number of digital inputs |
36 |
| Input type |
PNP/NPN |
| Number of digital outputs |
24 |
| Output type |
PNP |
| Program capacity |
10 K steps |
| Data memory capacity |
32 K words |
| Logic execution time |
0.55 µs |
| Communication port(s) |
USB |
| Number of Ethernet ports |
0 |
| Number of USB ports |
1 |
| Number of RS-232 ports |
0 |
| Number of RS-485 ports |
0 |
| Communication option(s) |
Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels |
4 |
| Max. encoder input frequency |
100 kHz |
| Max. number of PTP axes |
2 |
| Max. pulse output frequency |
100 kHz |
| Function Block programming |
Yes |
| Battery-free memory backup |
No |
| Real-time clock |
Yes |
| Analogue option boards |
No |
| Max. number of analogue I/O channels |
25 |
| Max. number of local I/O points |
180 |
| Max. number of expansion units |
3 |
| Built-in auxiliary 24 VDC output |
0 mA |
| Operating temperature range |
0-55 °C |
| Product Height (unpacked) |
90 mm |
| Product Width (unpacked) |
195 mm |
| Product Depth (unpacked) |
85 mm |
| Product Weight (unpacked) |
680 g |
