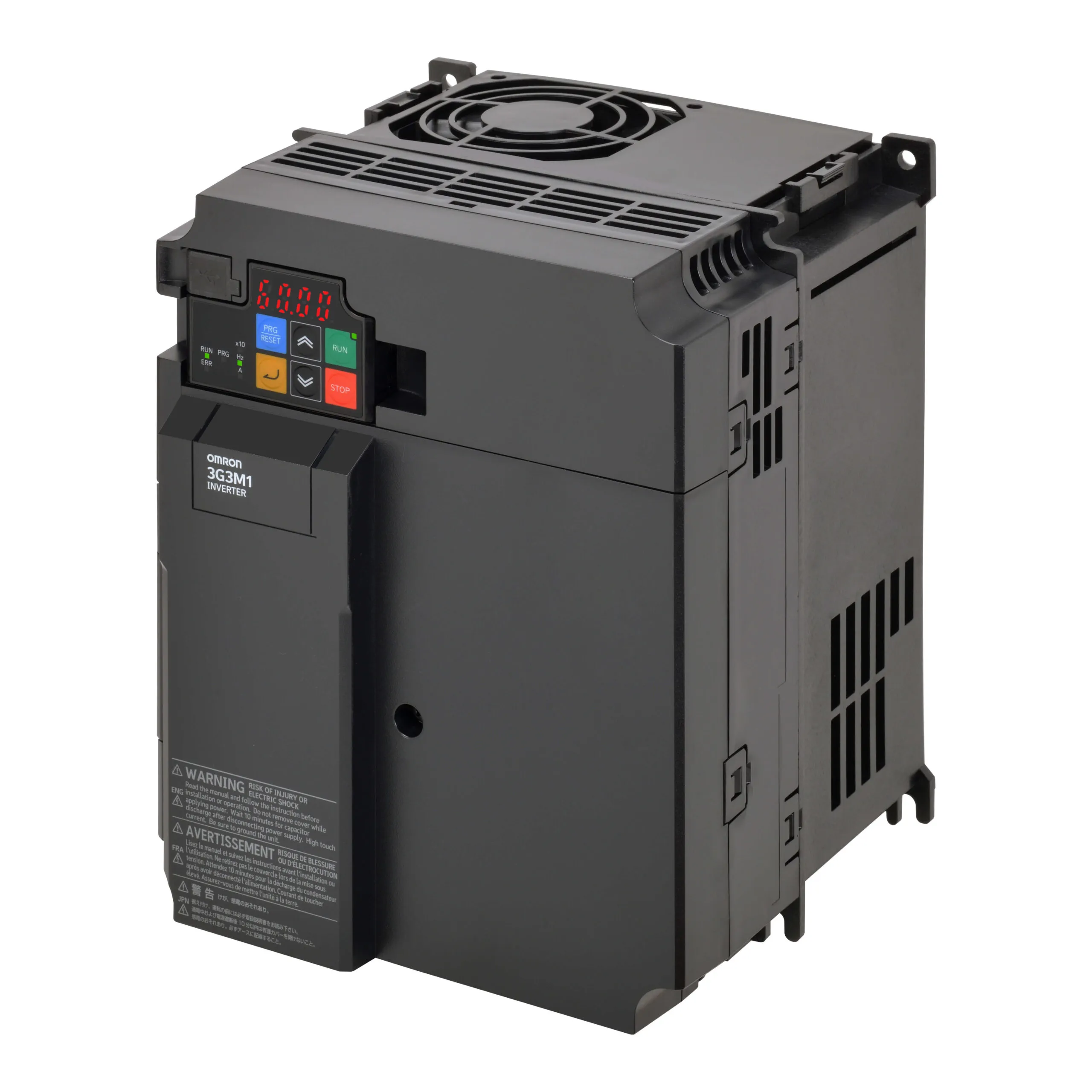

Omron 3G3M1-A2055
M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Specification
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
|---|---|
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque | 5.5 kW |
| Max. motor output at variable torque | 7.5 kW |
| Built in EMC filter | No |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | None |
| Product Height (unpacked) | 220 mm |
| Product Width (unpacked) | 180 mm |
| Product Depth (unpacked) | 171 mm |
| Product Weight (unpacked) | 3800 g |
| Finless type | No |
