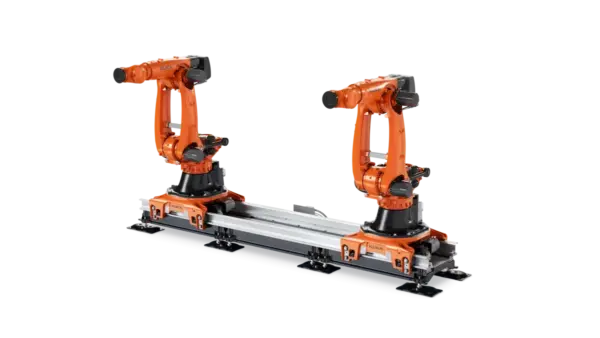

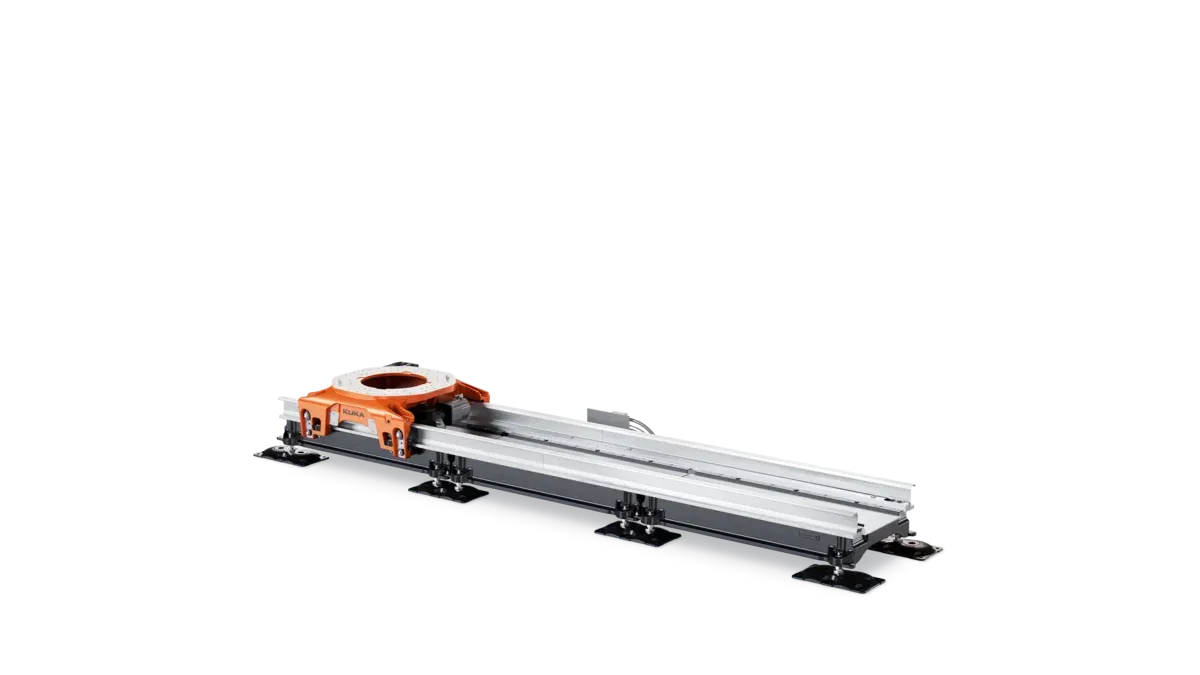

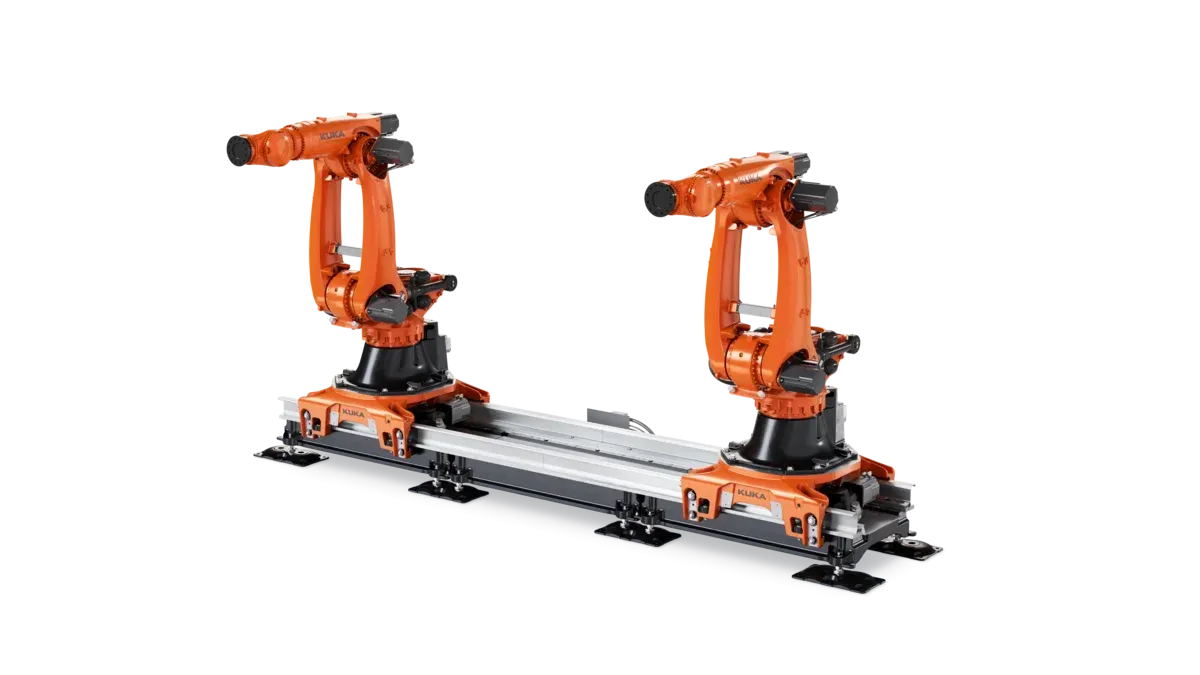

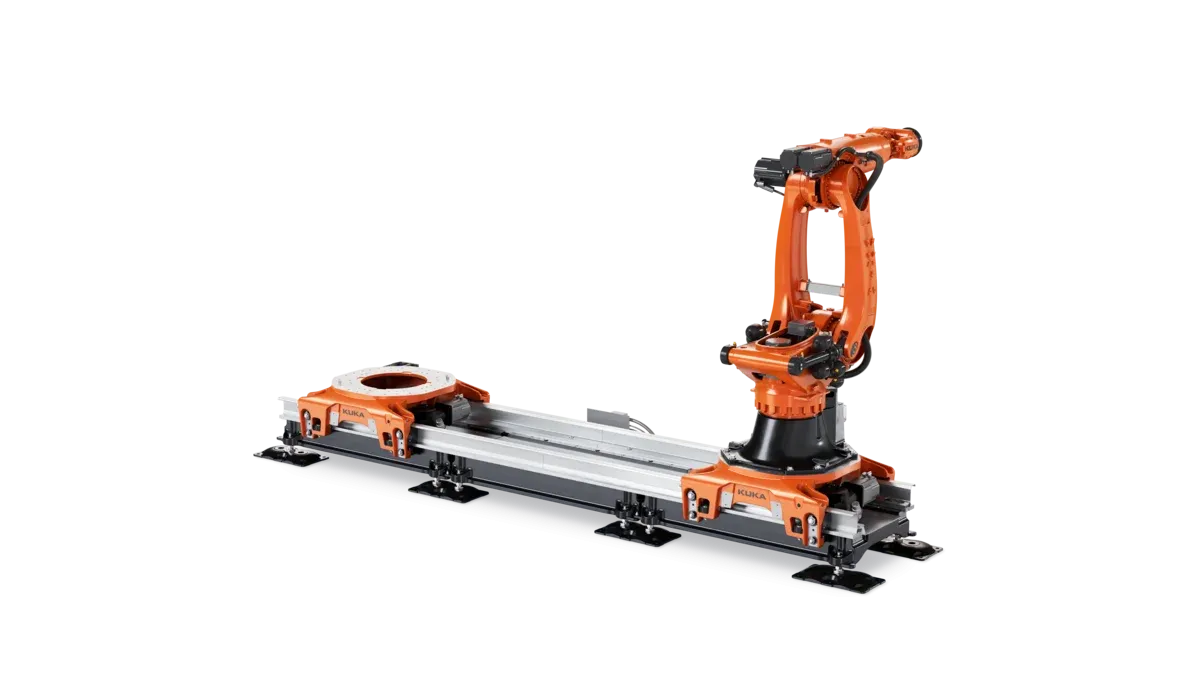

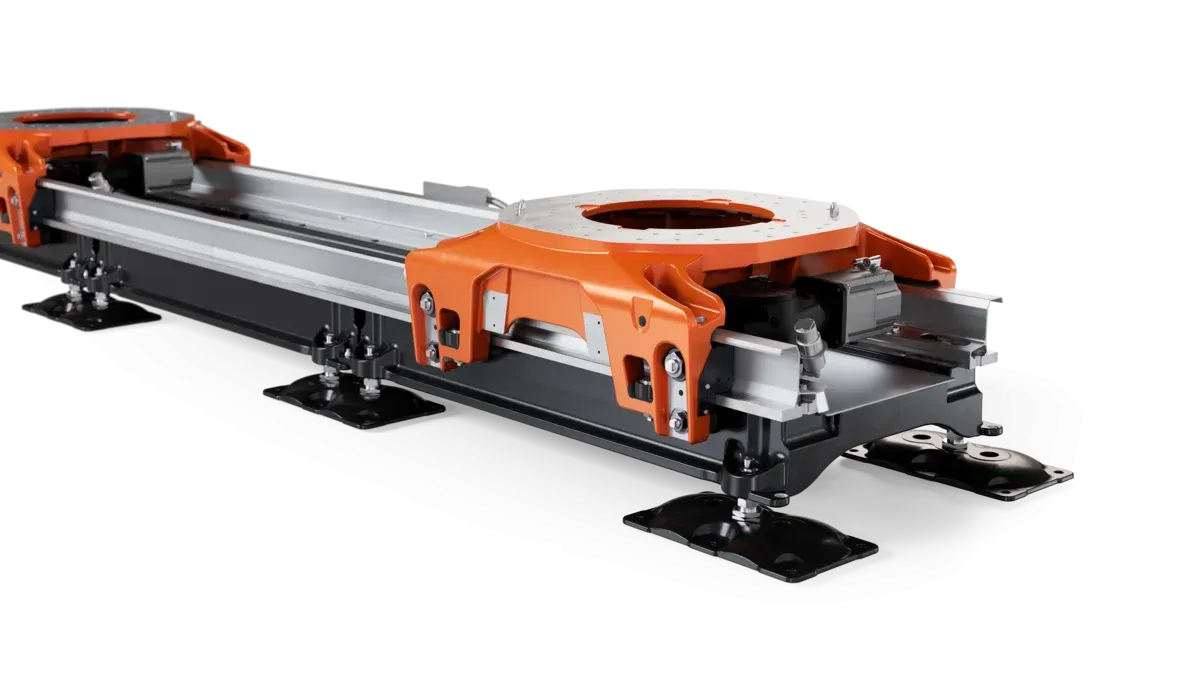

Kuka 12401206
KL 5000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Payload Per Carriage | 5000 kg |
|---|---|
| Payload Per Tender Carriage | 5000 kg |
| Mounting Position | Floor |
| Protection Rating (Iec 60529) | IP65 |
| Sound Level | 75 db(A) |
| Ambient Temperature During Operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient Temperature During Stor./Transp. | -40 °C to 60 °C (233 K to 333 K) |
| Humidity Class (En 60204) | EN 60204/4.4.4 F |
| Number Of Carriages | 1 |
| Maximum Number Of Carriages | 4 |
| Footprint | 2176 mm x length of linear unit |
| Pose Repeatability (Iso 9283) | 0.02 mm |
| Effective Travel | 800 mm to 30300 mm, in 500 mm steps |
| A1 | 1.89 °/s |
