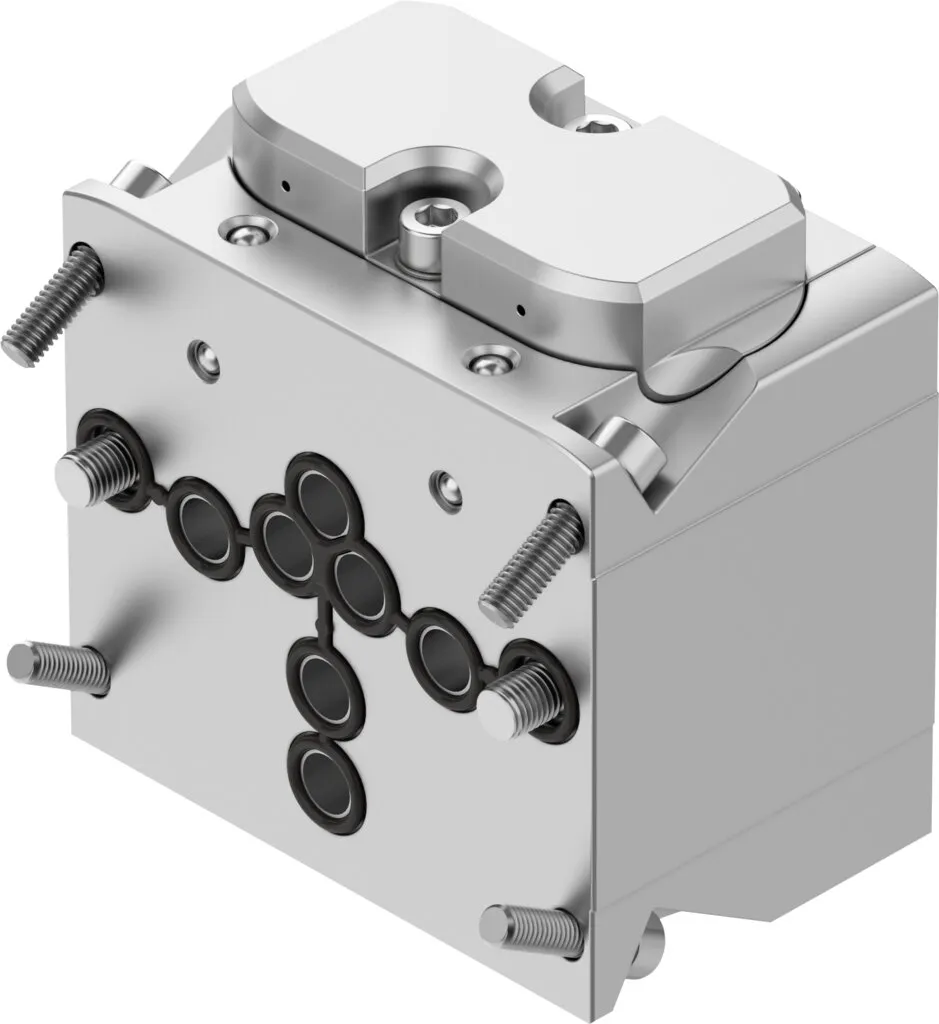

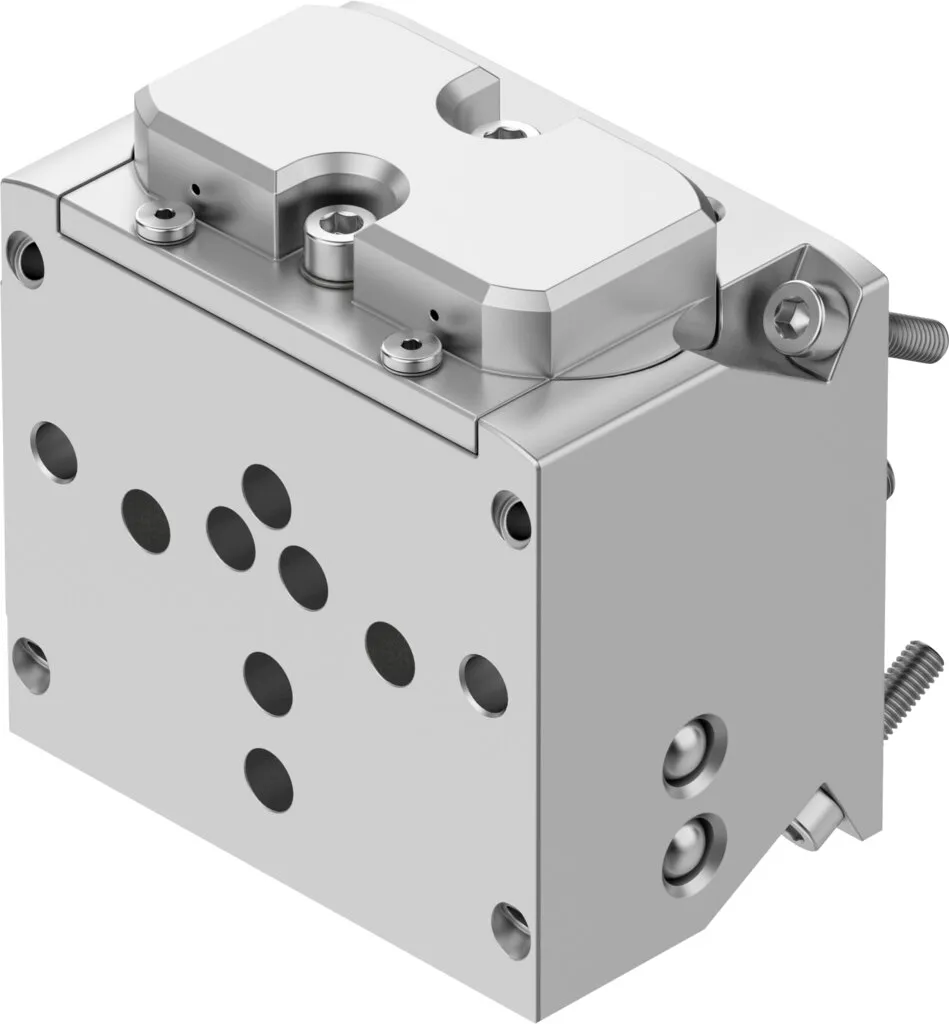

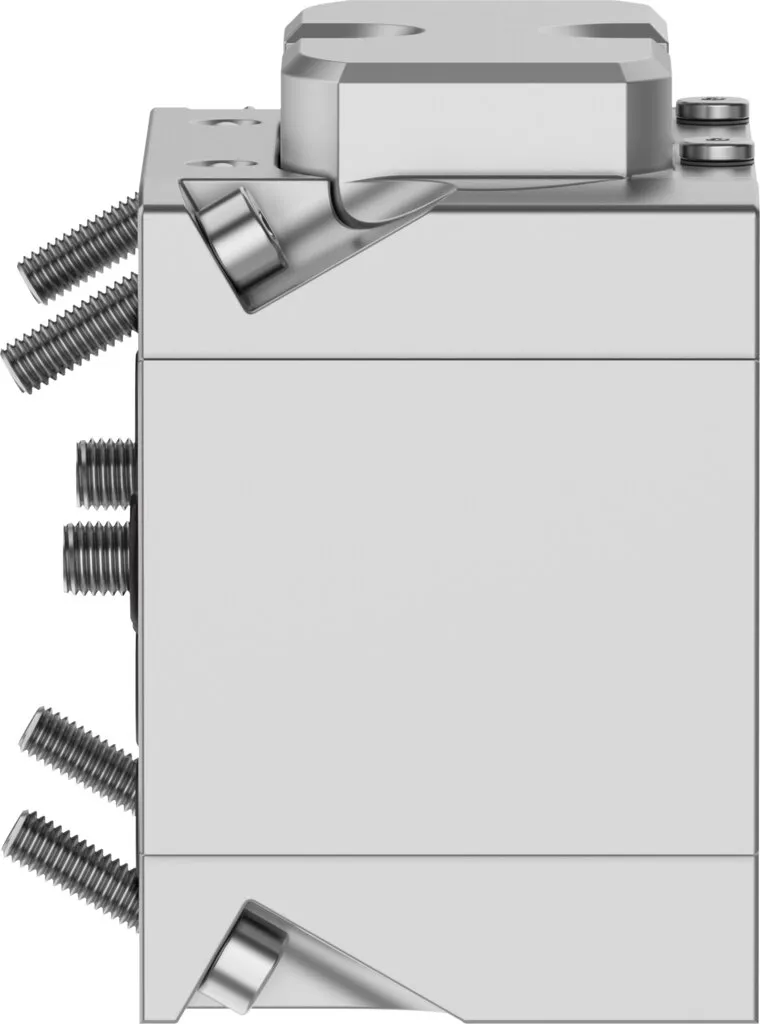

Festo VOGM-FD100-T33H-M-F90
Pneumatic extension module for valve terminal VTOP , Volume booster for shortening the actuating times of the process valve , Precise positioning of the pneumatic actuator even with fast positioning t…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pneumatic extension module for valve terminal VTOP , Volume booster for shortening the actuating times of the process valve , Precise positioning of the pneumatic actuator even with fast positioning times through direct integration into the control loop
Specification
| Design |
Piloted piston poppet valve |
|---|---|
| Type Of Actuation |
Pneumatic |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Type Of Mounting |
With accessories |
| Valve Function |
Proportional 3/3-way valve |
| Mode Of Operation |
Double-acting |
| Operating Pressure |
20.3, 116 psi |
| Type Of Reset |
Mechanical spring |
| Pneumatic Connection |
Sub-base design, airing |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:7:-], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation not possible |
| Media Temperature |
-40, 80 °C |
| Ambient Temperature |
-40, 80 °C |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
1240 l/min |
| C Value |
5.58 l/sbar |
| B Value |
0.214 |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Material Housing |
Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Cover |
Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Seals |
EPDM, NBR |
| Material Screws |
High-alloy stainless steel |
| Material Spring |
Spring steel |
| Product Weight |
1560 g |
| Explosion Protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
