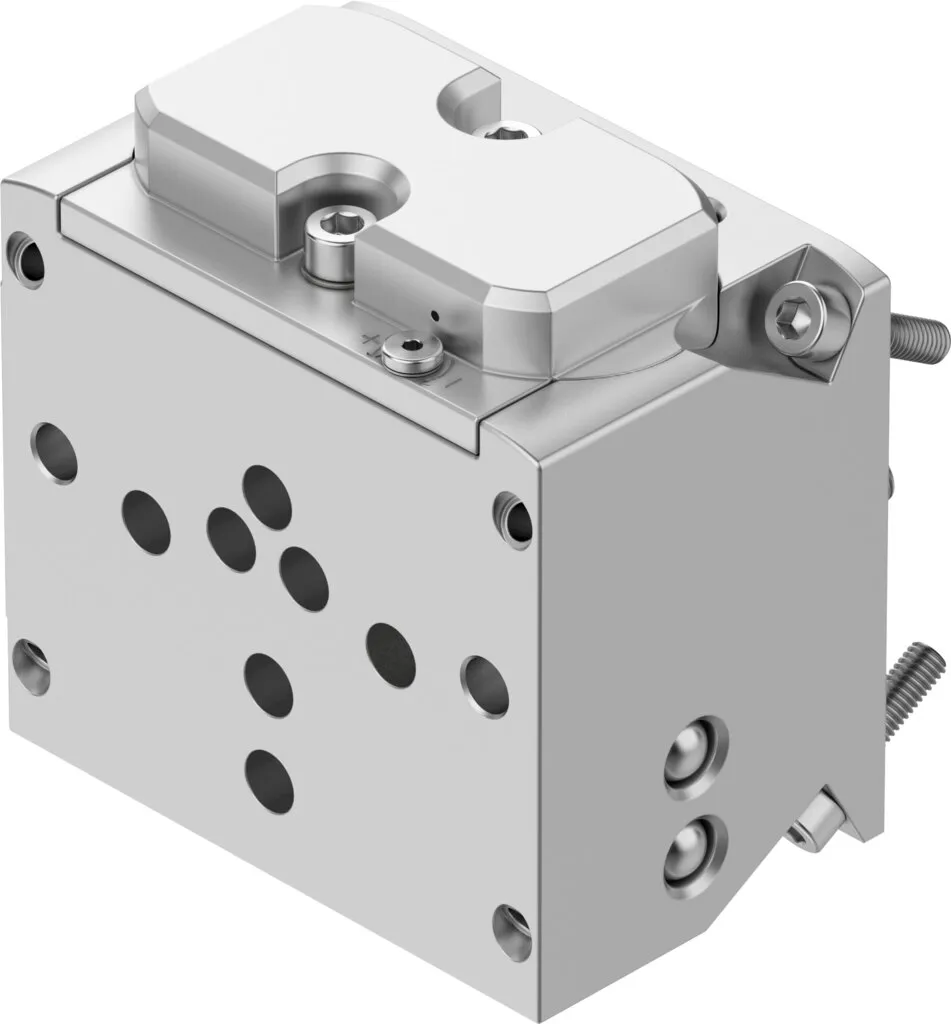

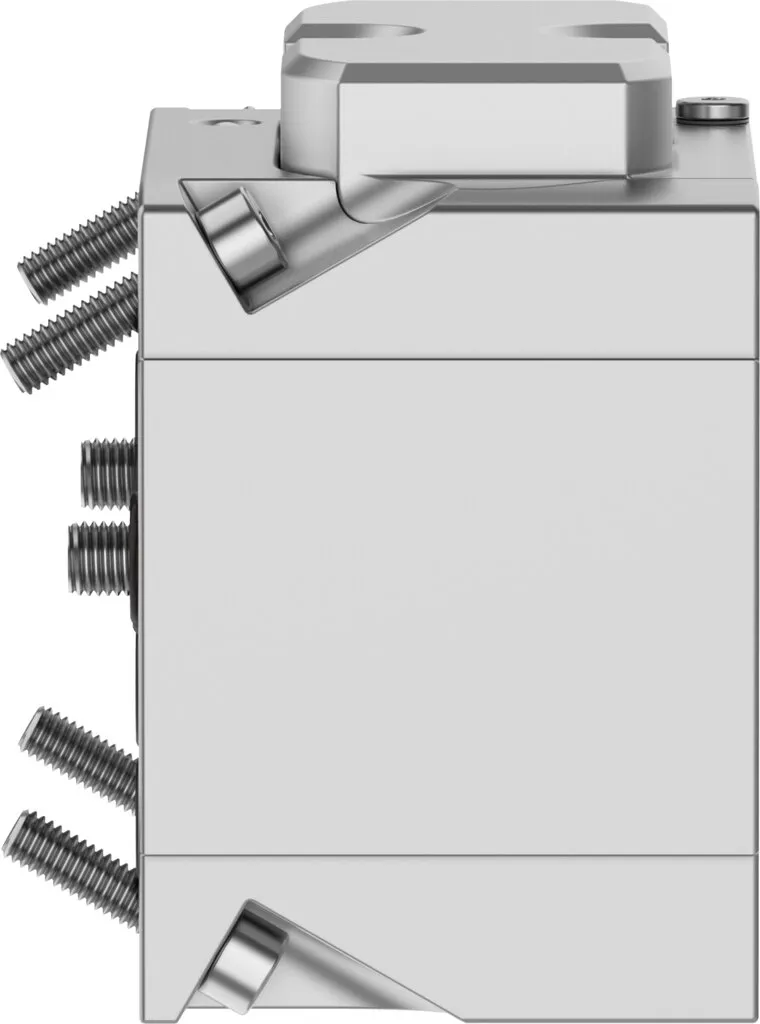

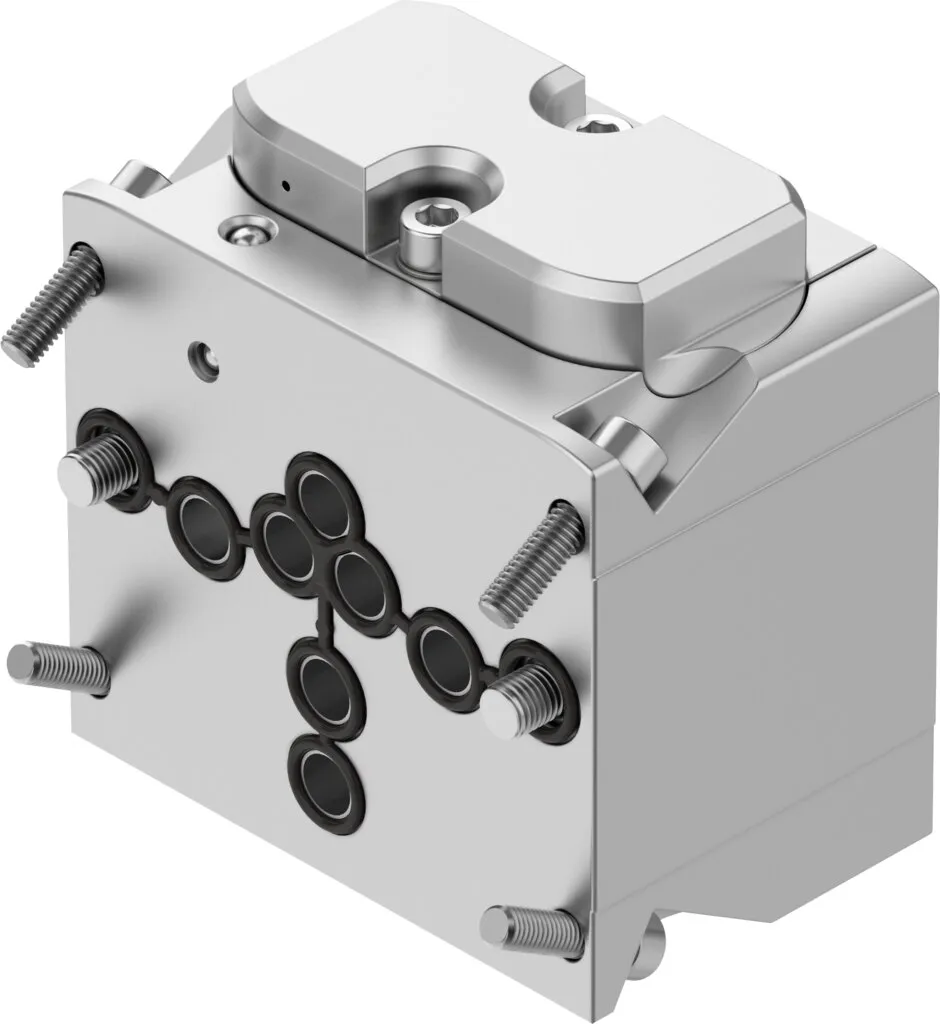

Festo VOGM-FD100-M33E-M-F90
Pneumatic extension module for valve terminal VTOP , Volume booster for shortening the actuating times of the process valve , Precise positioning of the pneumatic actuator even with fast positioning t…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pneumatic extension module for valve terminal VTOP , Volume booster for shortening the actuating times of the process valve , Precise positioning of the pneumatic actuator even with fast positioning times through direct integration into the control loop
Specification
| Design | Piloted piston poppet valve |
|---|---|
| Type Of Actuation | Pneumatic |
| Sealing Principle | Soft |
| Mounting Position | optional |
| Type Of Mounting | With accessories |
| Valve Function | Proportional 3/3-way valve |
| Mode Of Operation | Single-acting |
| Operating Pressure | 20.3, 116 psi |
| Type Of Reset | Mechanical spring |
| Pneumatic Connection | Sub-base design, airing |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:7:-], Inert gases |
| Note On Operating And Pilot Medium | Lubricated operation not possible |
| Media Temperature | -40, 80 °C |
| Ambient Temperature | -40, 80 °C |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 1240 l/min |
| C Value | 5.58 l/sbar |
| B Value | 0.214 |
| Note On Materials | RoHS-compliant |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Material Housing | Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Cover | Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Seals | EPDM, NBR |
| Material Screws | High-alloy stainless steel |
| Material Spring | Spring steel |
| Product Weight | 1560 g |
| Explosion Protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion Resistance Class Crc | 3 – high corrosion stress |
