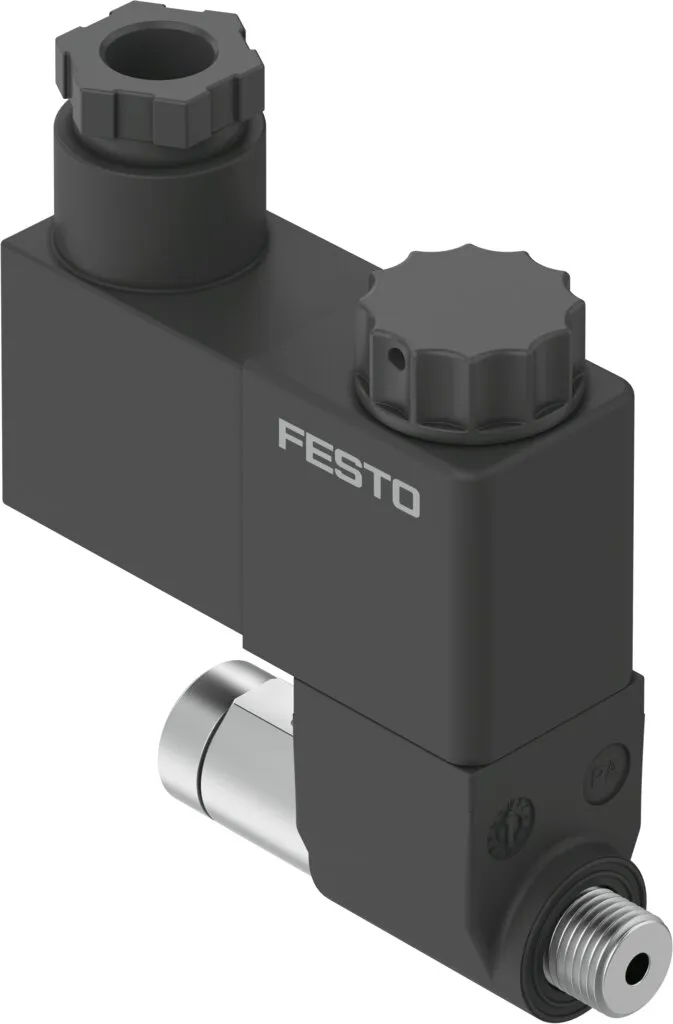

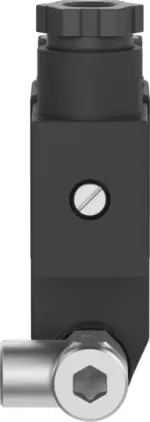

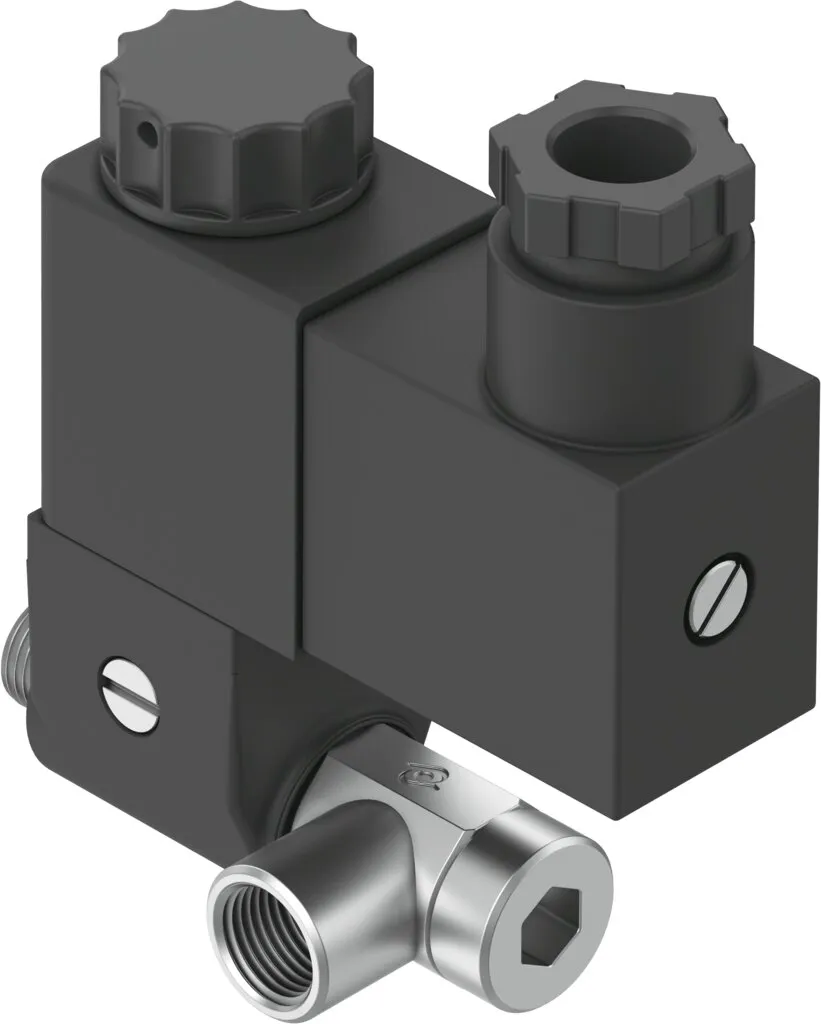

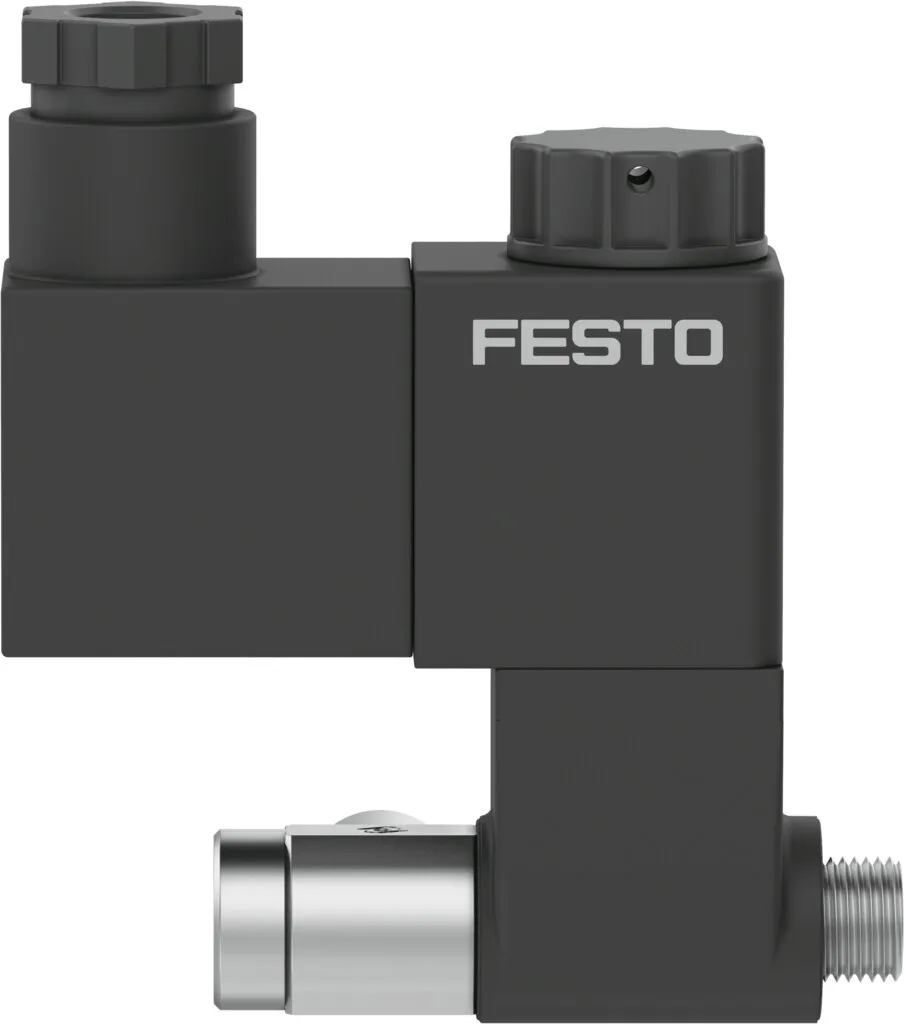

Festo VOFX-LT-M32C-MY-G18-SG18-1B2
For angle seat valves VZXF and VZXA , For use wherever valve terminals are not economically or technically viable , Manual override, detenting
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For angle seat valves VZXF and VZXA , For use wherever valve terminals are not economically or technically viable , Manual override, detenting
Specification
| Valve Function | 3/2-way, closed, monostable |
|---|---|
| Type Of Actuation | Electric |
| Construction Width | 22 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 50 l/min |
| Pneumatic Working Port | G1/8 |
| Operating Voltage | 24V DC |
| Operating Pressure | -0.9, 8 bar |
| Design | Directly actuated poppet valve |
| Type Of Reset | Mechanical spring |
| Degree Of Protection | IP65 |
| Nominal Size | 1.3 mm |
| Exhaust Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | optional |
| Manual Override | Detenting |
| Type Of Piloting | Direct |
| Pilot Air Supply | Internal |
| Flow Direction | Non-reversible |
| Symbol | 00991135 |
| Switching Time Off | 46 ms |
| Switching Time On | 31 ms |
| Duty Cycle | 100% |
| Characteristic Coil Data | 24 V DC: 3.0 W |
| Permissible Voltage Fluctuations | +/- 10 % |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Media Temperature | -10, 50 °C |
| Ambient Temperature | -10, 50 °C |
| Product Weight | 160 g |
| Electrical Connection | 3-pin, Type B, Plugs, To EN 175301-803 |
| Pneumatic Connection, Port 1 | G1/8 |
| Pneumatic Connection, Port 2 | G1/8 |
| Pneumatic Connection, Port 3 | M5 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Housing | PA |
