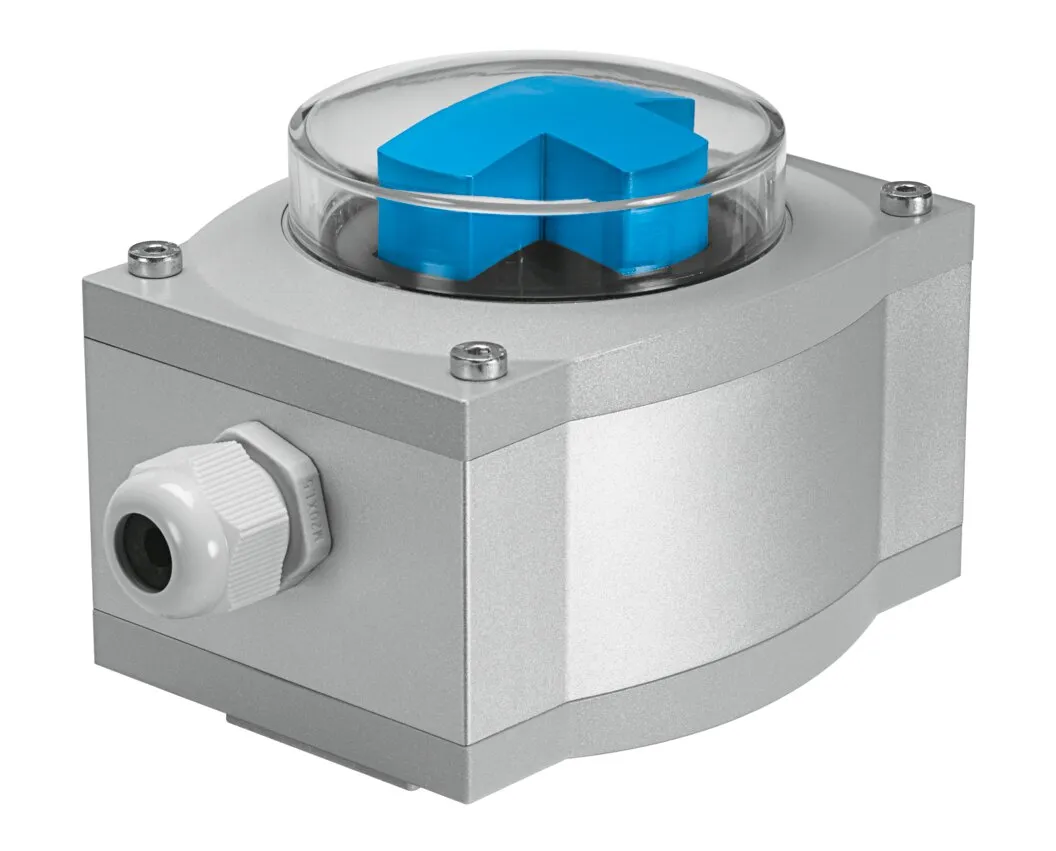

Festo SRAP-M-CA1-GR270-1-A-TP20-EX2
Based on standard VDI/VDE 3845 (NAMUR) , Analogue , For monitoring the position of quarter turn actuators , Sensors based on 2D Hall technology , Variants to EU Explosion Protection Directive (ATEX)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Based on standard VDI/VDE 3845 (NAMUR) , Analogue , For monitoring the position of quarter turn actuators , Sensors based on 2D Hall technology , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design | Angular |
|---|---|
| Based On Standard | VDI/VDE 3845 (NAMUR) |
| Approval | RCM trademark, c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection | Zone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX) |
| Atex Category Gas | II 3G |
| Explosion Ignition Protection Type For Gas | Ex ec IIC T5 Gc X |
| Atex Category Dust | II 3D |
| Explosion Ignition Protection Type For Dust | Ex tc IIIC T90°C Dc X |
| Explosion Protection Certification Outside The Eu | EPL Dc (GB), EPL Gc (GB) |
| Explosion Ambient Temperature | -20 °C <= Ta <= +80 °C |
| Note On Materials | RoHS-compliant |
| Measured Variable | Rotation angle |
| Measuring Principle | Magnetic Hall |
| Ambient Temperature | -20, 80 °C |
| Analogue Output | 4 – 20 mA |
| Repetition Accuracy Analogue Output In ± ° | 1 deg |
| Short Circuit Current Rating | yes |
| Overload Protection | Available |
| Operational Voltage Range Dc | 15, 30 V |
| No Load Supply Current | 12, 20 mA |
| Reverse Polarity Protection | For all electrical connections |
| Electrical Connection | 9-pin, Screw terminal, Plug-in |
| Connectable Nominal Cross Section Conductor | 2.5 mm² |
| Cable Fitting | M20 |
| Permissible Cable Diameter | 5, 13 mm |
| Max. Cable Length | 30Â m |
| Mounting Position | optional |
| Product Weight | 1000 g |
| Material Housing | Wrought aluminium alloy |
| Position Indicator | Red/green |
| Setting Options | Teach-in, Teach-in via electrical connection |
| Setting Range Of Angular Detection | 270 deg |
| Degree Of Protection | IP65 |
| Insulation Voltage | 50 V |
| Immunity To Surge | 0.8 kV |
| Protection Class | III |
| Corrosion Resistance Class Crc | 3 – high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Pollution Degree | 3 |
