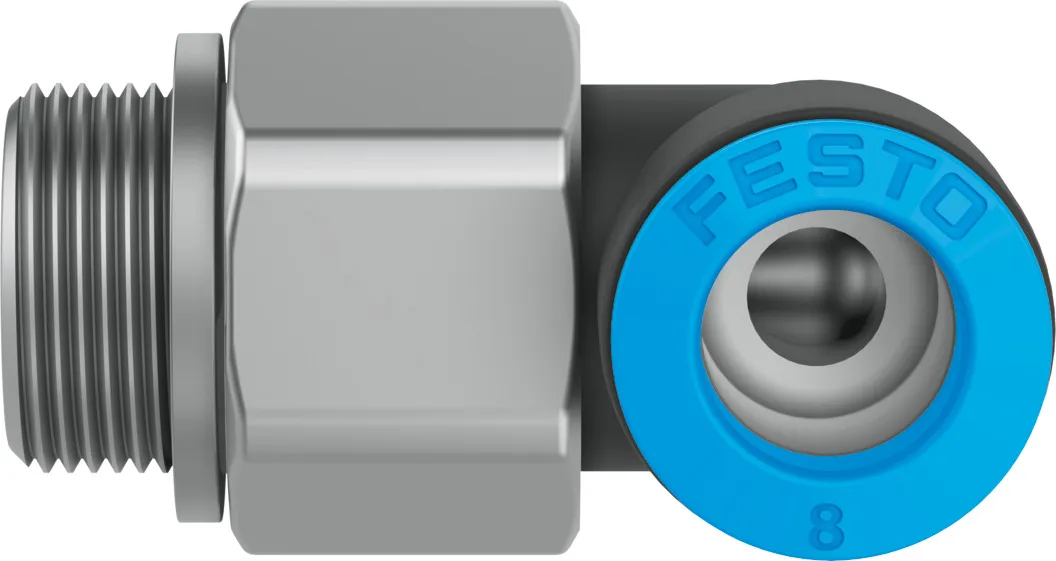

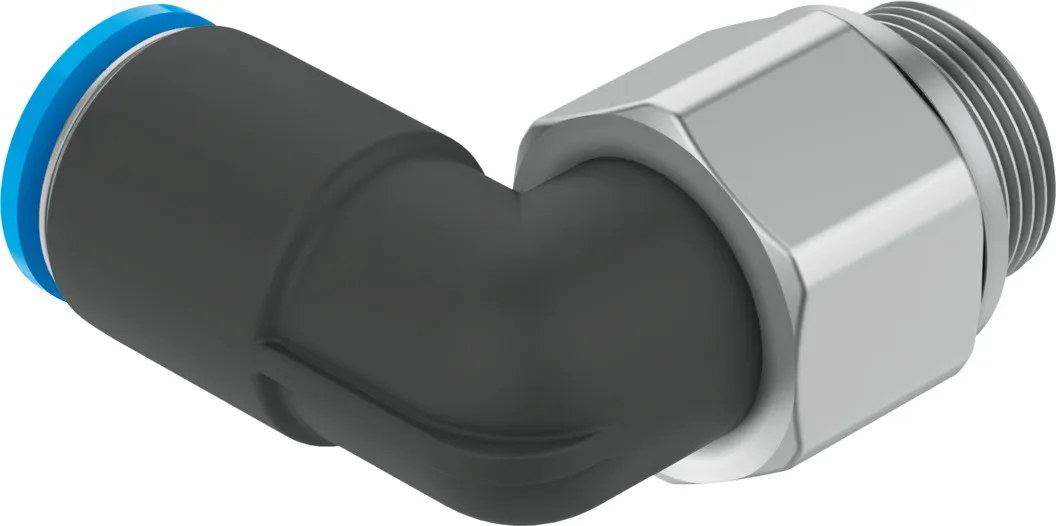

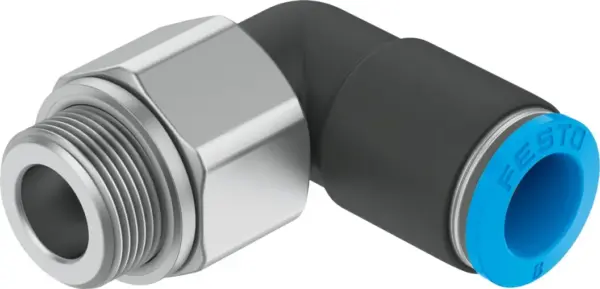

Festo QSRL-G3/8-10
Push-in fitting, rotatable with swivel connection, rotatable by 360° with max. 500 rpm , Compact installation space , Straight shape, L-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push-in fitting, rotatable with swivel connection, rotatable by 360° with max. 500 rpm , Compact installation space , Straight shape, L-shape
Specification
| Size | Standard |
|---|---|
| Nominal Size | 6.2 mm |
| Type Of Seal On Screwed Plug | Sealing ring |
| Mounting Position | optional |
| Design | Push-pull principle |
| Size Of Pack | 1 |
| Operating Pressure Complete Temperature Range | -13.775, 87 psi |
| Temperature Dependent Operating Pressure | -13.775, 203 psi |
| Max. Rotational Speed | 300 1/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | 60 °C |
| Max. Radial Torque | 0.02 Nm |
| Nominal Torque | 15.5 Nm |
| Tolerance For Nominal Tightening Torque | ± 20% |
| Product Weight | 59 g |
| Type Of Mounting | External hexagon, size 22 mm |
| Pneumatic Connection, Port 1 | Male thread G3/8 |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 10 mm |
| Colour Of Release Ring | Blue |
| Material Screwed Plug | Nickel-plated brass |
| Note On Materials | RoHS-compliant |
| Material Housing | PBT |
| Material Release Ring | POM |
| Material Tubing Seal | NBR |
| Material Tubing Clamp Component | High-alloy stainless steel |
