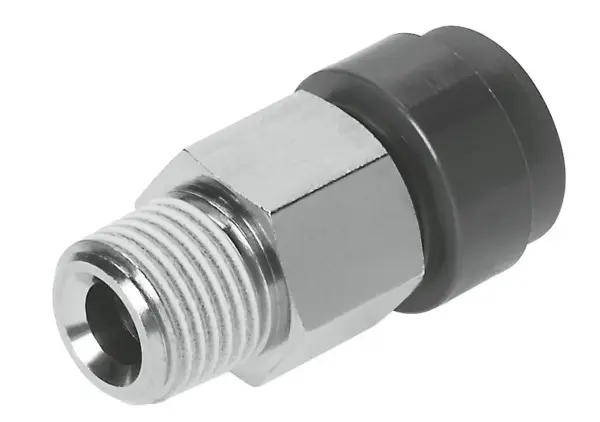

Festo QS-V0-3/8-12
PBT, reinforced , Resistant to welding spatter , For use in all areas where there is a risk of fire , Reliable even for applications in close proximity to welding spatter , Operating medium: compresse…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PBT, reinforced , Resistant to welding spatter , For use in all areas where there is a risk of fire , Reliable even for applications in close proximity to welding spatter , Operating medium: compressed air, vacuum, water , Straight design, L-shaped, T-shaped
Specification
| Size | Standard |
|---|---|
| Nominal Size | 11 mm |
| Fire Test Material | UL94 V-0 (housing), UL94 V-0 (releasing ring) |
| Type Of Seal On Screwed Plug | Coating |
| Design | Push-pull principle |
| Size Of Pack | 1 |
| Operating Pressure Complete Temperature Range | -13.775, 145 psi |
| Note On Operating Pressure | Water: max. 0.6 MPa at max. 50°C |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | 60 °C |
| Product Weight | 31 g |
| Type Of Mounting | External hexagon, size 21 mm |
| Pneumatic Connection, Port 1 | Male thread R3/8 |
| Pneumatic Connection, Port 2 | For tubing outer diameter of 12 mm |
| Colour Of Release Ring | Black |
| Material Screwed Plug | Nickel-plated brass |
| Note On Materials | RoHS-compliant |
| Material Housing | PBT |
| Material Release Ring | PBT |
| Material Tubing Seal | NBR |
| Material Tubing Clamp Component | High-alloy stainless steel, Brass |
