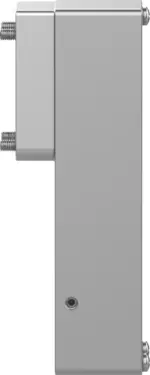

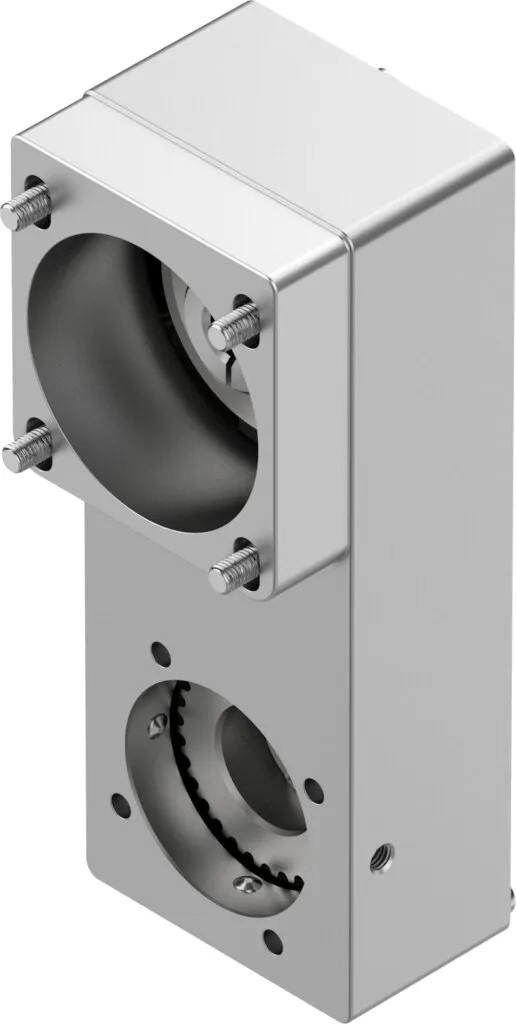

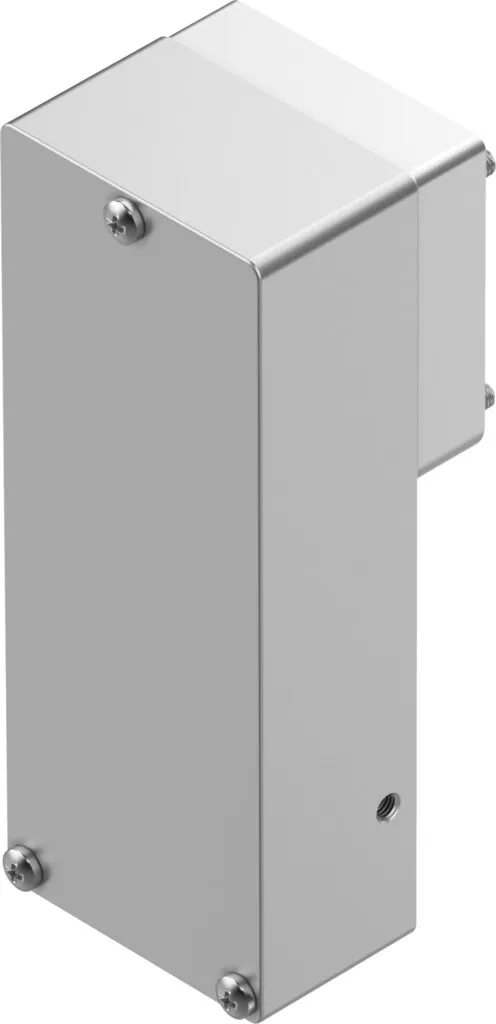

Festo EAMM-U-30-V20-28A-44
Parallel kit-EAMM-U-30-V20-28A-44
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Size | 30 |
|---|---|
| Centre To Centre Distance | 44 mm |
| Mounting Position | optional |
| Gear Unit Ratio | 1:1 |
| Max. Rotational Speed | 3000 1/min |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Storage Temperature | -20, 60 °C |
| Relative Air Humidity | 0 – 95% |
| Degree Of Protection | IP40 |
| Ambient Temperature | 50 °C |
| Mass Moment Of Inertia | 2.11 kgmm² |
| Frictional Torque Independent Of Load | 0.015 Nm |
| Transmittable Torque | 0.05 Nm |
| Product Weight | 97 g |
| Interface Code, Actuator | V20 |
| Interface Code, Motor In | 28A |
| Note On Materials | RoHS-compliant |
