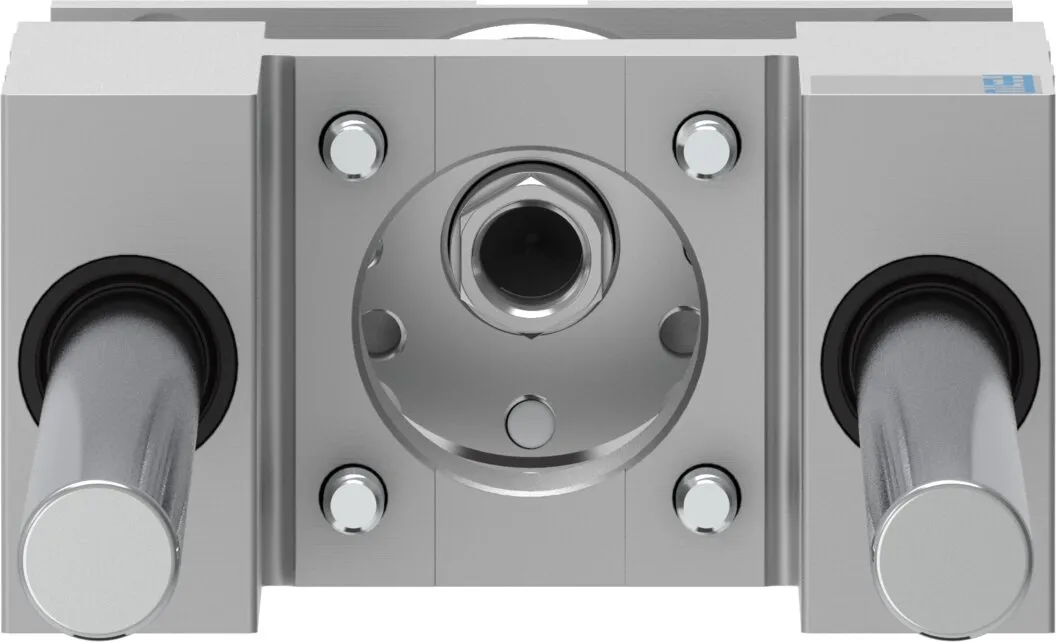

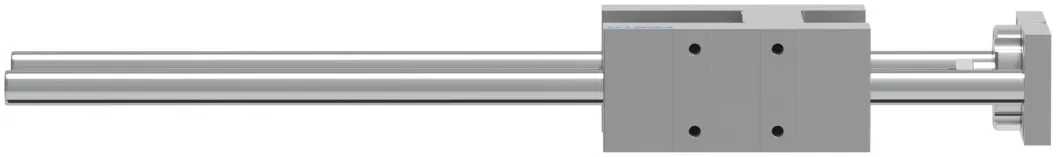

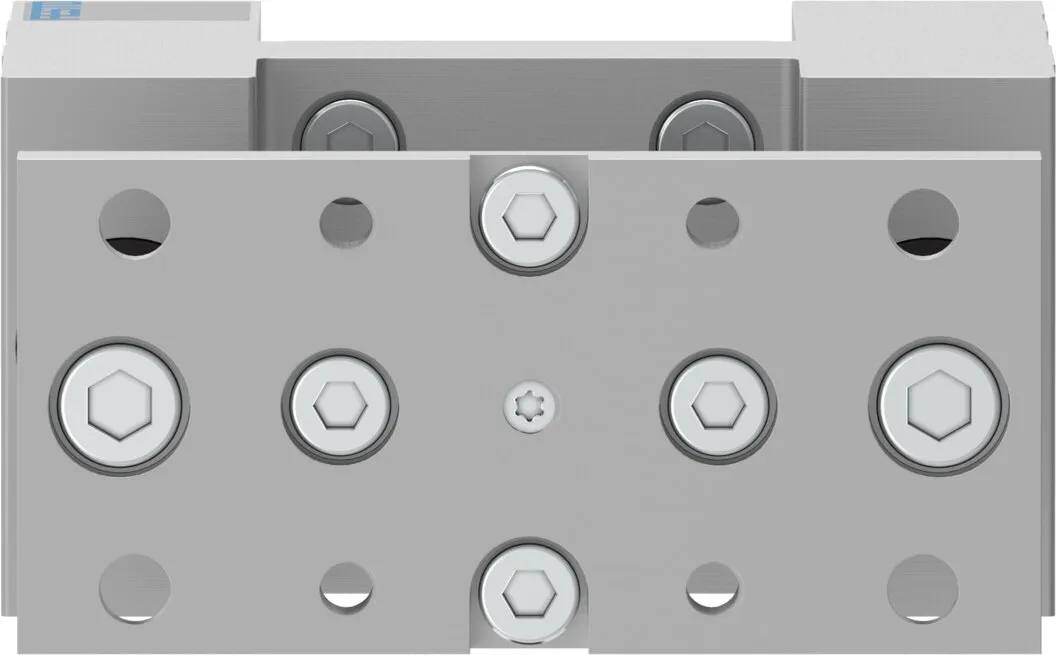

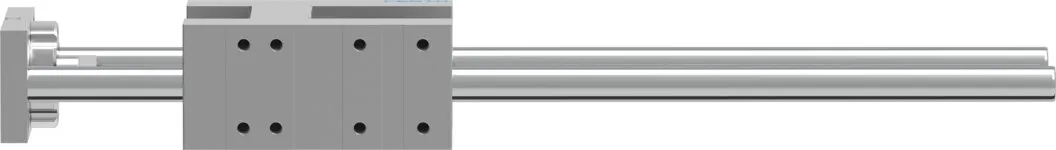

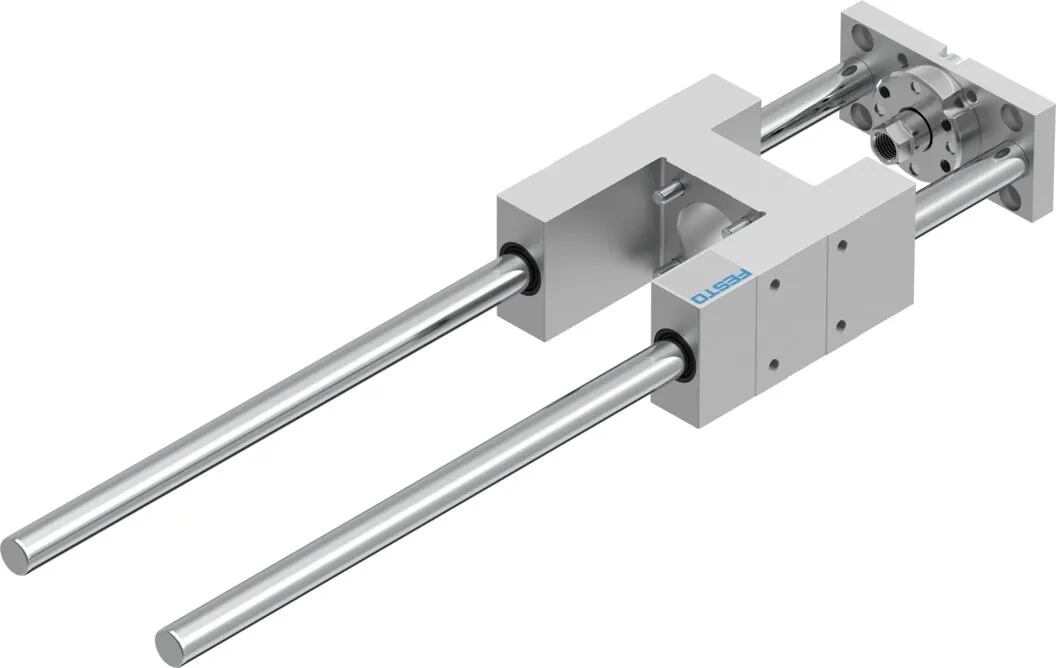

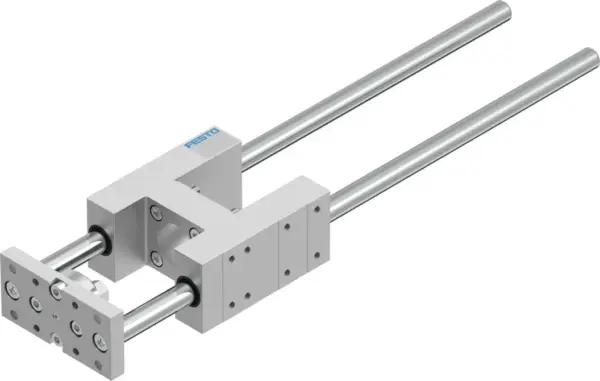

Festo EAGF-V2-KF-50-400
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For electric cylinders EPCC, EPCO and ESBF , For absorbing high process forces and torques , High guide precision
Specification
| Size | 50 |
|---|---|
| Stroke | 400 mm |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Corrosion resistance class CRC | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20, 80 °C |
| Max. force Fy | 1260 N |
| Max. force Fy static | 1600 N |
| Max. force Fz | 1260 N |
| Max. force Fz static | 1600 N |
| Max. moment Mx | 65 Nm |
| Max. torque Mx static | 83 Nm |
| Max. moment My | 70 Nm |
| Max. torque My static | 89 Nm |
| Max. moment Mz | 70 Nm |
| Max. torque Mz static | 89 Nm |
| Displacement force | 15 N |
| Moving mass | 3975 g |
| Product weight | 6019 g |
| Centre of gravity at 0 mm stroke | 46 mm |
| Centre of gravity additional of moving mass per 10 mm | 4.3 mm |
| Type of mounting | Via female thread |
| Note on materials | RoHS-compliant |
| Material guide component | Tempered steel |
| Material housing | Anodised |
| Material yoke plate | Steel |
