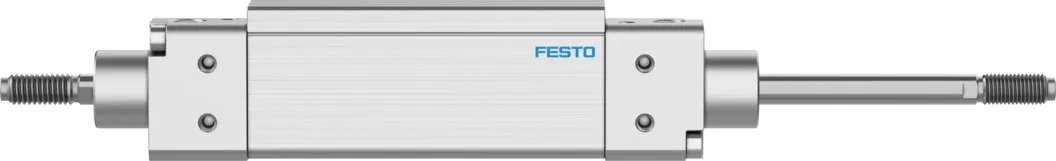

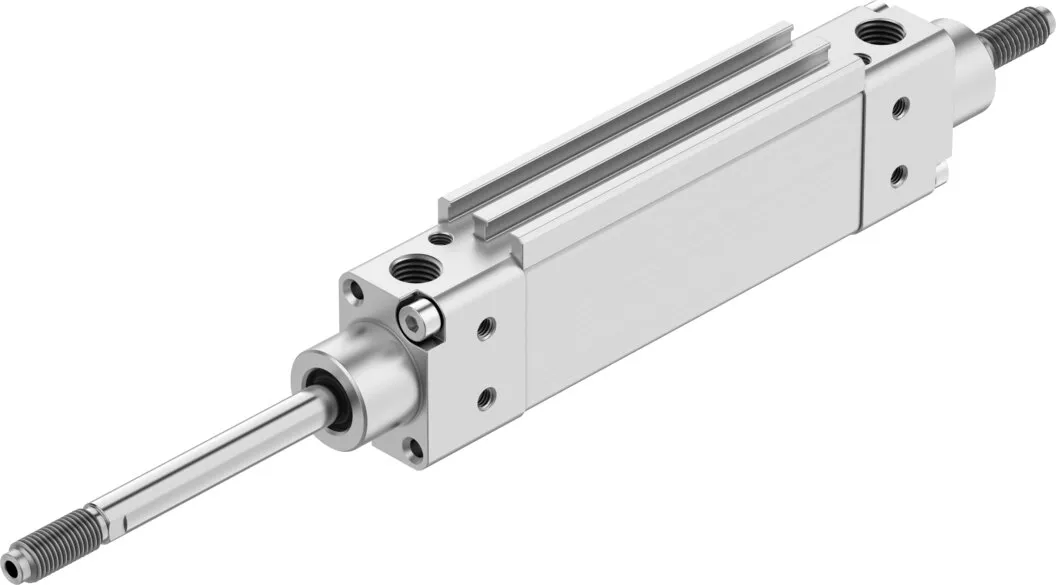

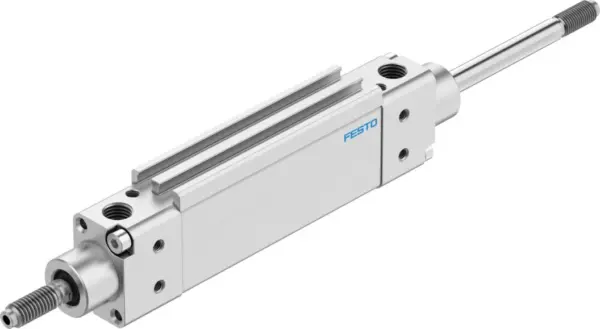

Festo DZH-20- -PPV-A-S20
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sen…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flat design , Protected against rotation thanks to special piston shape , Ideal for manifold assembly , Wide variety of mounting and attachment options , Piston rod with male thread , For position sensing
Specification
| Stroke | 1, 320 mm |
|---|---|
| Piston Diameter | 20 mm, Equivalent diameter |
| Piston Rod Thread | M8 |
| Torsional Backlash At Piston Rod +/ | 2.6 deg |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting Position | optional |
| Mode Of Operation | Double-acting |
| Design | Piston, Piston rod, Profile barrel |
| Position Detection | Via proximity switch |

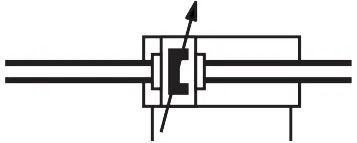

| Symbol | 00991236 |
| Variants | Through, hollow piston rod |
| Protection Against Torque/Guide | Oval piston |
| Operating Pressure | 1, 10 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | -20, 80 °C |
| Cushioning Length | 17 mm |
| Max. Torque For Protection Against Torsion | 0.6 Nm |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke | 158 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke | 158 N |
| Moving Mass For Mm Stroke | 76 g |
| Additional Moving Mass Per 10 Mm Stroke | 6.8 g |
| Additional Weight Per 10 Mm Stroke | 18.7 g |
| Basic Weight For Mm Stroke | 251 g |
| Type Of Mounting | Via female thread, With accessories |
| Pneumatic Connection | G1/8 |
| Note On Materials | RoHS-compliant |
| Material Cover | Aluminium |
| Material Seals | TPE-U(PU) |
| Material Housing | Aluminium |
| Material Piston Seal | TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
