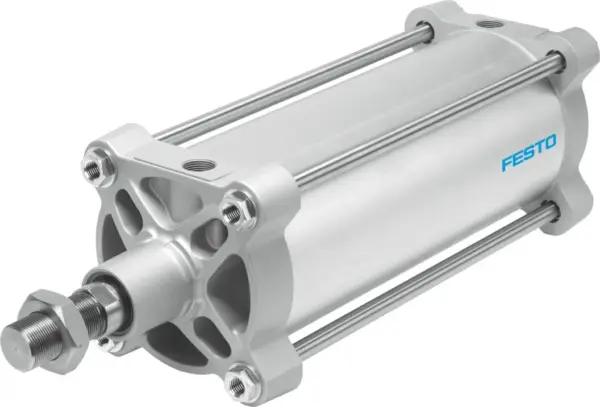

Festo DSBG-160-40-P-N3
ISO 15552 (ISO 6431, VDMA 24562) , Sturdy tie rod design , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Comprehensi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 (ISO 6431, VDMA 24562) , Sturdy tie rod design , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , Comprehensive range of mounting accessories for just about every type of installation , For position sensing , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke | 40 mm |
|---|---|
| Piston diameter | 160 mm |
| Piston rod thread | M36x2 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston, Piston rod, Tie rod, Cylinder barrel |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Operating pressure | 0.6, 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20, 80 °C |
| Impact energy in end positions | 3.3 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 11310 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 12064 N |
| Moving mass | 4680 g |
| Moving mass for 0 mm stroke | 4292 g |
| Additional moving mass per 10 mm stroke | 97 g |
| Product weight | 12583 g |
| Basic weight for 0 mm stroke | 11751 g |
| Additional weight per 10 mm stroke | 208 g |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | G3/4 |
| Note on materials | RoHS-compliant |
| Material cover | Cast aluminium, coated |
| Material piston seal | NBR |
| Material piston | Cast aluminium |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | NBR |
| Buffer seal material | TPE-U(PU) |
| Material of cushioning boss | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | Metal polymer compound |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel |
