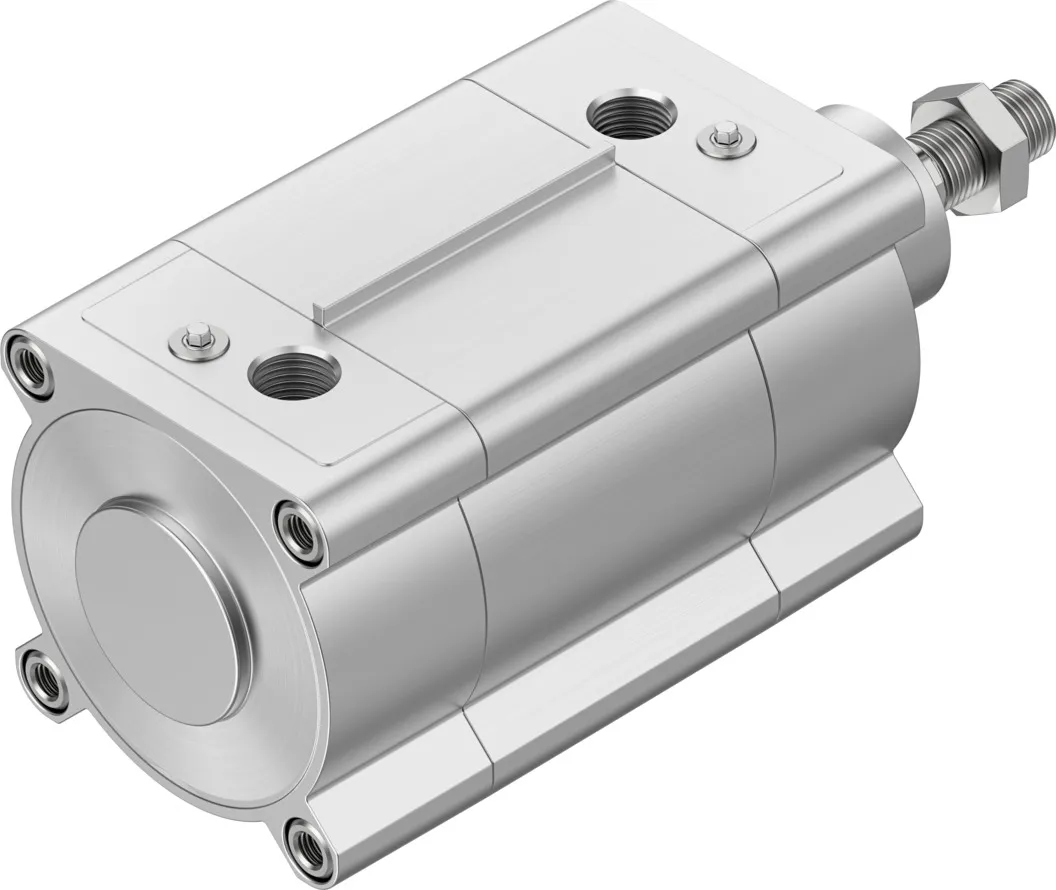

Festo DSBF-C-…-100- –
ISO 15552 , Increased corrosion protection , Easy-to-clean design , FDA-approved lubrication and sealing on the basic version , Long service life thanks to optional dry-running seal , Self-adjusting p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 15552 , Increased corrosion protection , Easy-to-clean design , FDA-approved lubrication and sealing on the basic version , Long service life thanks to optional dry-running seal , Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes , For position sensing , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke | 1, 2800 mm |
|---|---|
| Piston diameter | 100 mm |
| Piston rod thread | M20x1.5, M12 |
| Based on standard | ISO 15552 |
| Cushioning | Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread, Female thread |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |

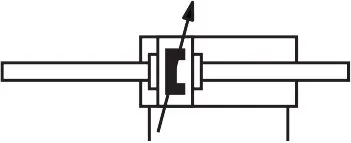

| Symbol | 00991217, 00991218, 00991235, 00991237, 00992970, 00992971 |
| Variants | Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Uniform, slow movement, Low friction, Through piston rod, Heat-resistant seals max. 120°C, Temperature range 0 to 150°C, Temperature range -40 to 80°C |
| Operating pressure | 0.05, 12 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Explosion protection certification outside the EU | EPL Db (GB), EPL Gb (GB) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 – high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L, VDMA24364 zone III |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -40, 150 °C |
| Impact energy in end positions | 1.25, 2.5 J |
| Cushioning length | 28, 34 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4418 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4418, 4712 N |
| Additional weight per piston rod extension of 10 mm | 39 g |
| Additional weight per piston rod thread extension of 10 mm | 22 g |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant |
| Material cover | Coated die-cast aluminium |
| Material piston seal | FPM, TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel, hard chrome-plated, High-alloy stainless steel |
| Material piston rod wiper | FPM, PE, TPE-U(PU) |
| Buffer seal material | FPM, TPE-U(PU) |
| Material of cushioning boss | Aluminium, POM |
| Material cylinder barrel | Anodised wrought aluminium alloy |
| Material nut | High-alloy stainless steel |
| Material rod wiper | PTFE reinforced |
| Material bearing | Bronze, Metal polymer compound, POM |
| Material collar screws | Galvanised steel |
