Danfoss (Drives) 15612Y-F20-20Z

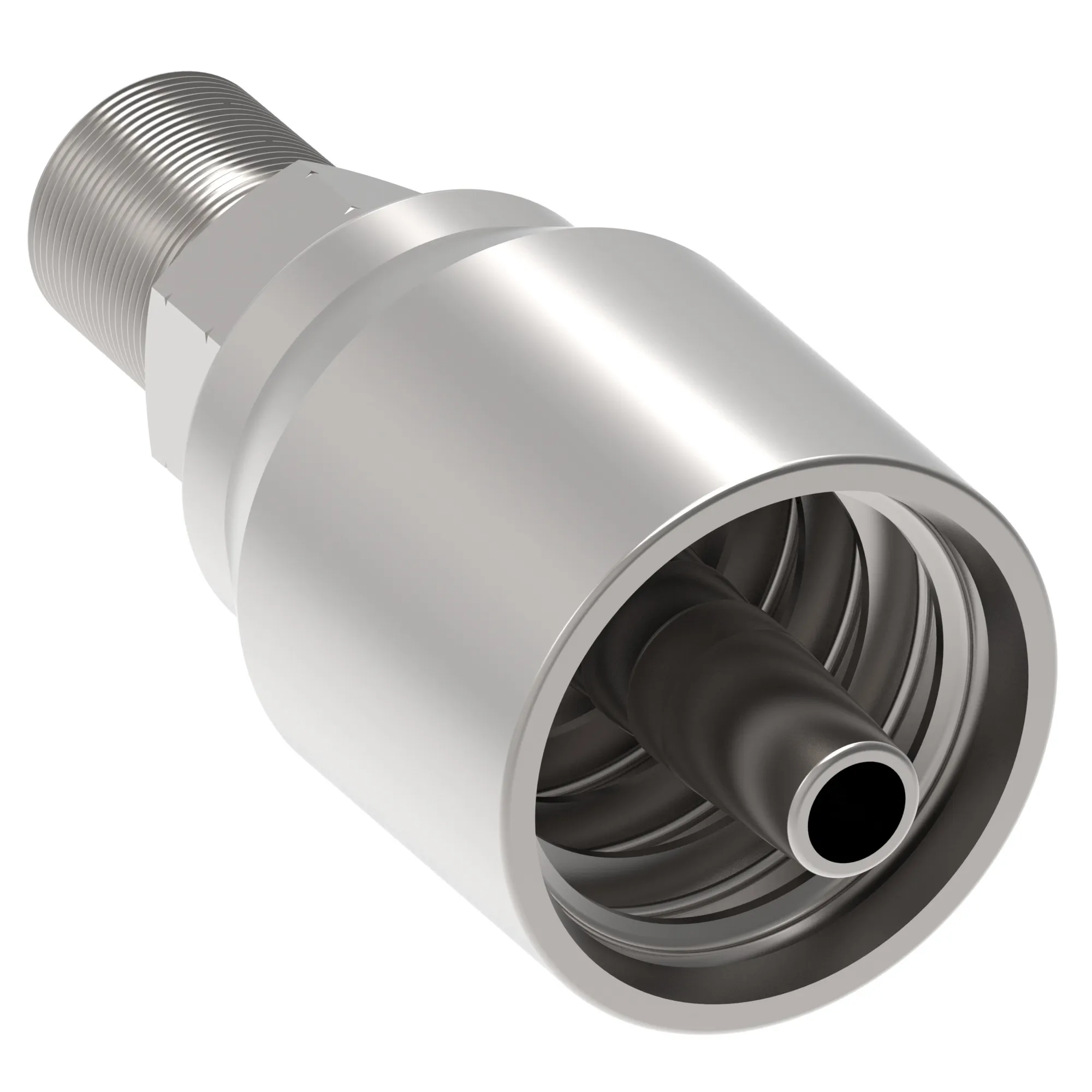

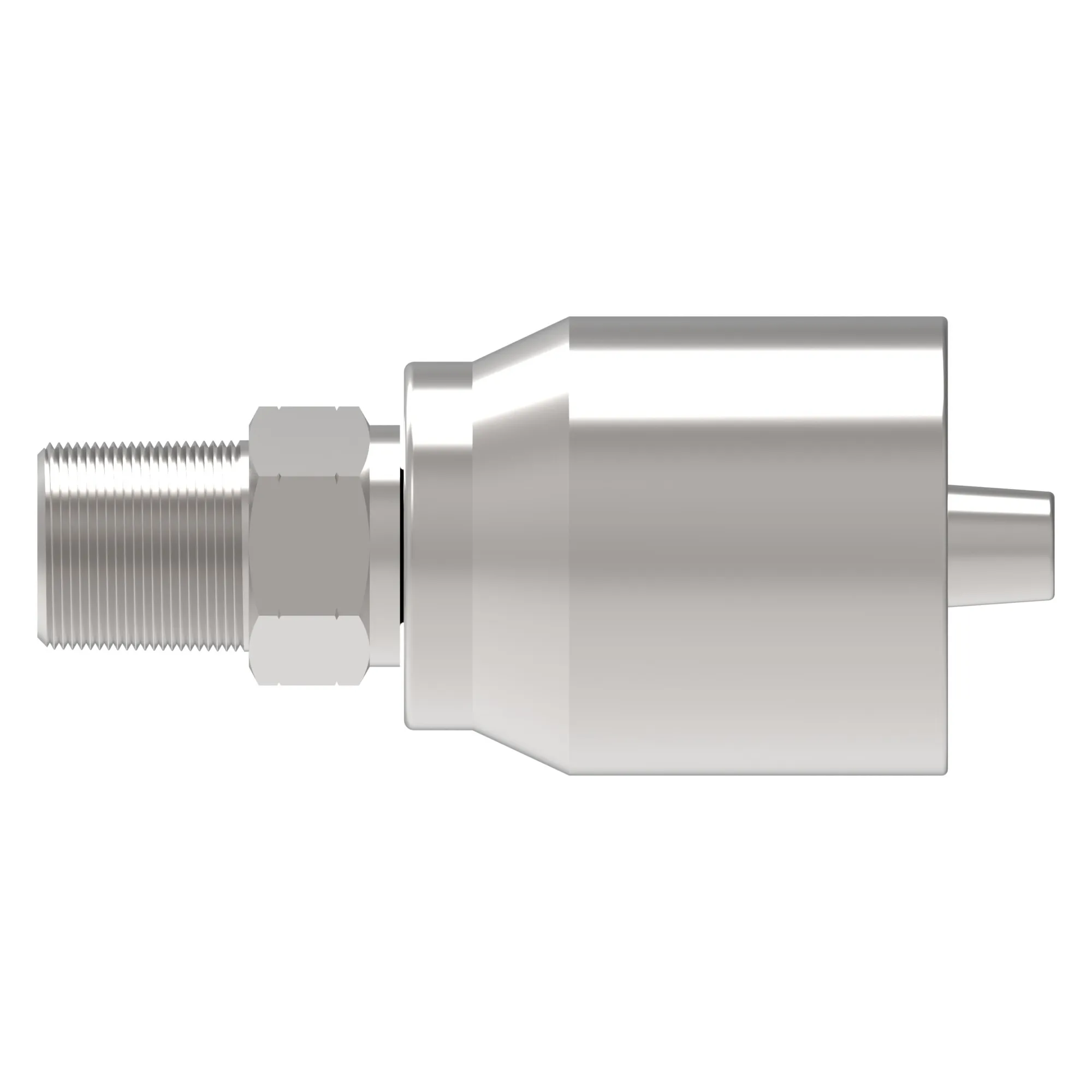

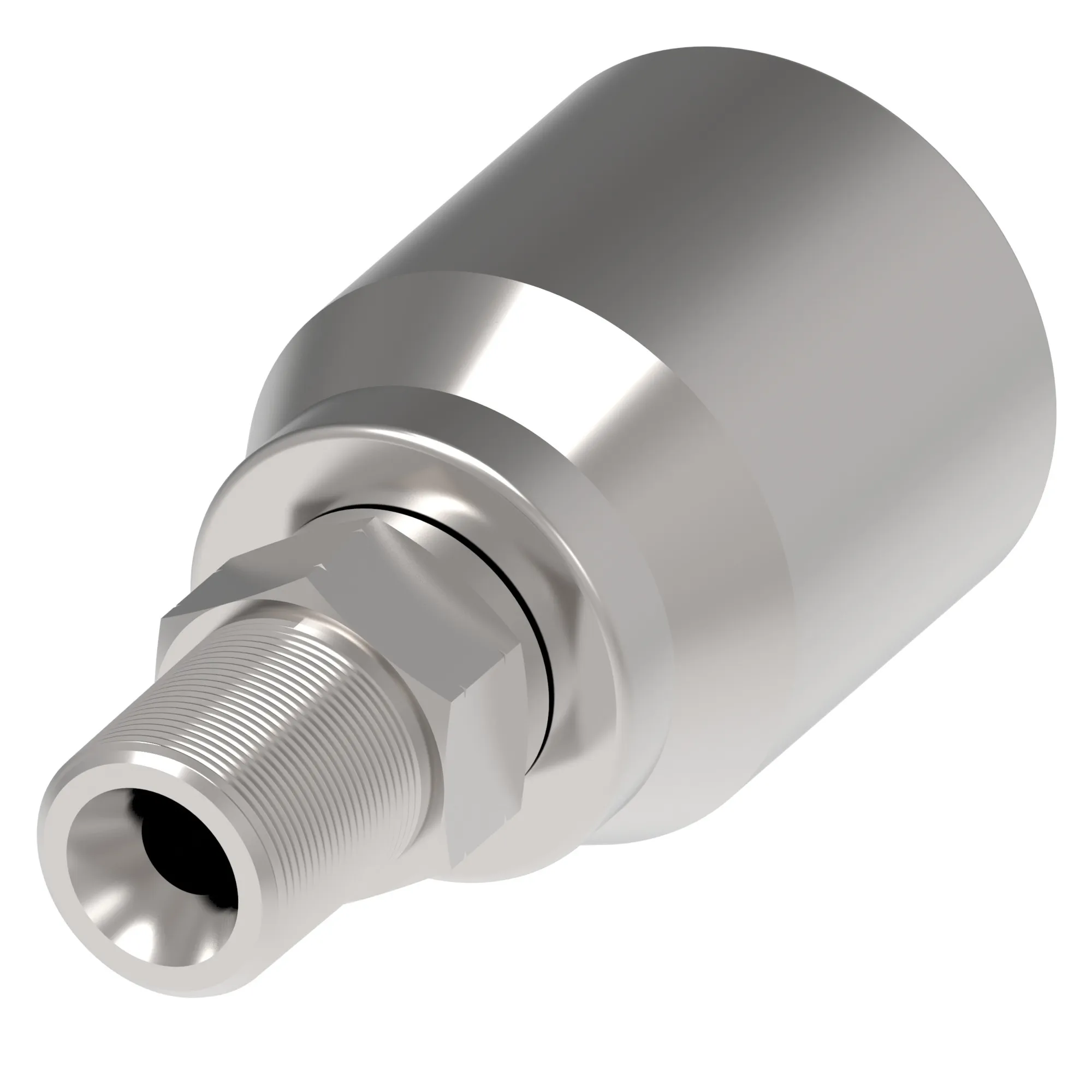

HOSE NIPPLE ASSY,2P/20,NPTF-M/20,CS,STR – 15612Y-F20-20Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/20,NPTF-M/20,CS,STR – 15612Y-F20-20Z
Specification
| A Dimension In | 4.520 |
|---|---|
| A Dimension Mm | 115.000 |
| Angle Shape | Straight |
| Compatible Hose Id In | 1.250 |
| Compatible Hose Id Mm | 31.800 |
| Construction Style | Crimp |
| End Size 1 | -20 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.810 |
| Hex Size 1 Mm | 45.974 |
| Hose Cut Off Factor In | 2.090 |
| Hose Cut Off Factor Mm | 53.100 |
| Hose Size | -20 |
| Inside Diameter In | 0.9800 |
| Inside Diameter Mm | 25.0000 |
| Product Height In | 2.126 |
| Product Height Mm | 54.000 |
| Product Length In | 4.527 |
| Product Length Mm | 114.986 |
| Product Material | Carbon steel |
| Product Width In | 2.126 |
| Product Width Mm | 54.000 mm |
| Series | Winner 2-Piece |
| Thread Sealant | Yes |
| Thread Size 1 | 1 1/4-11 1/2 NPTF |
