Danfoss (Drives) 15612Y-24-24Z

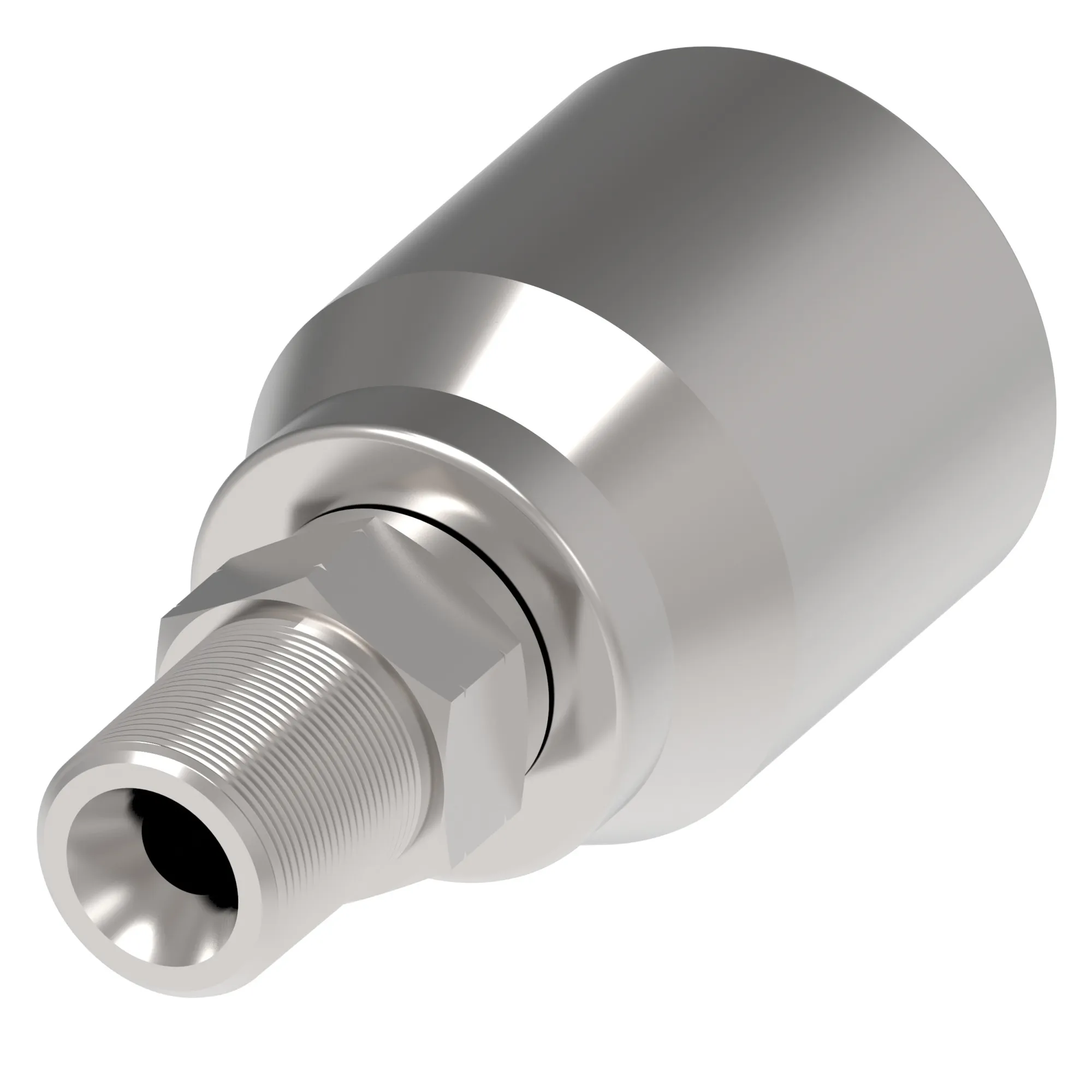

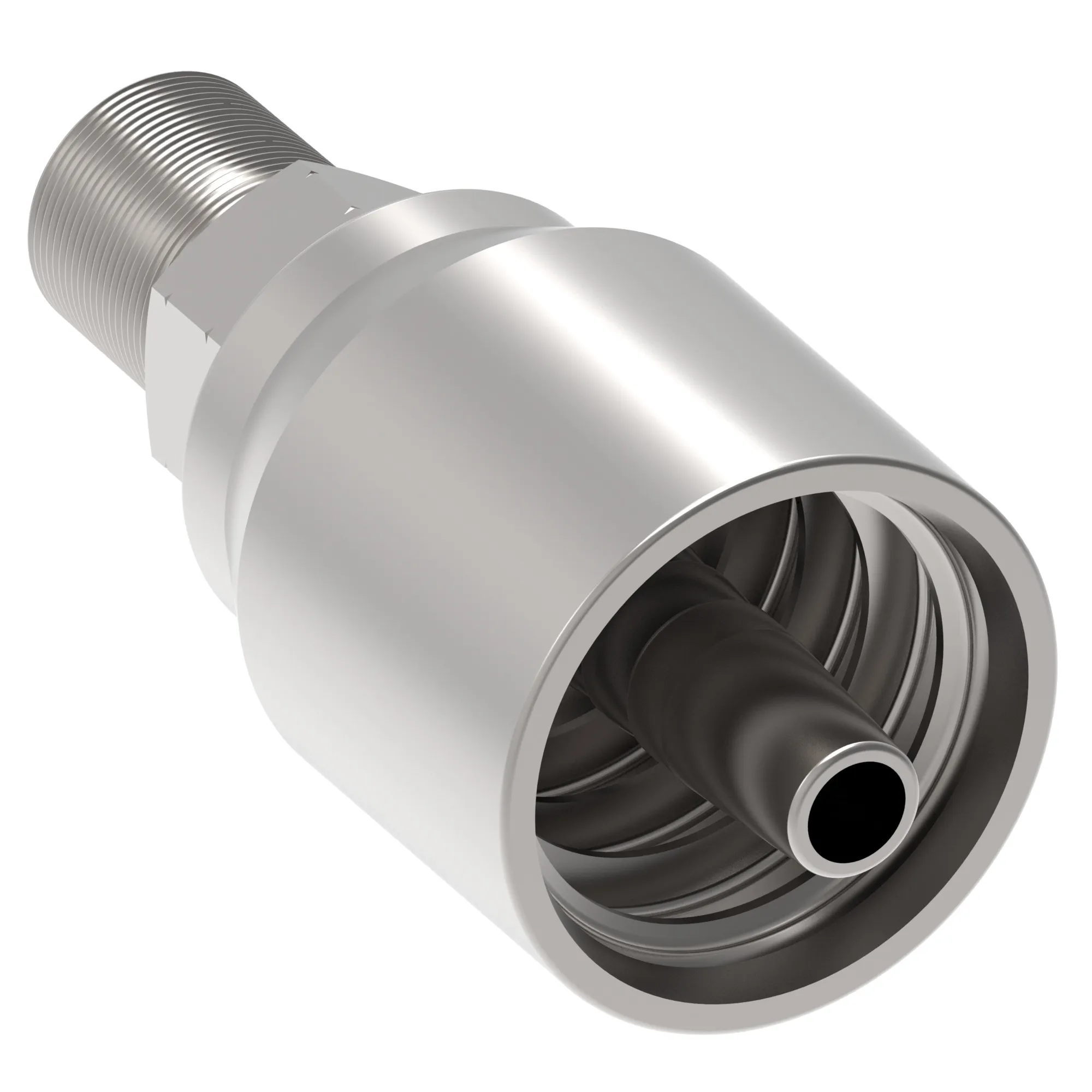

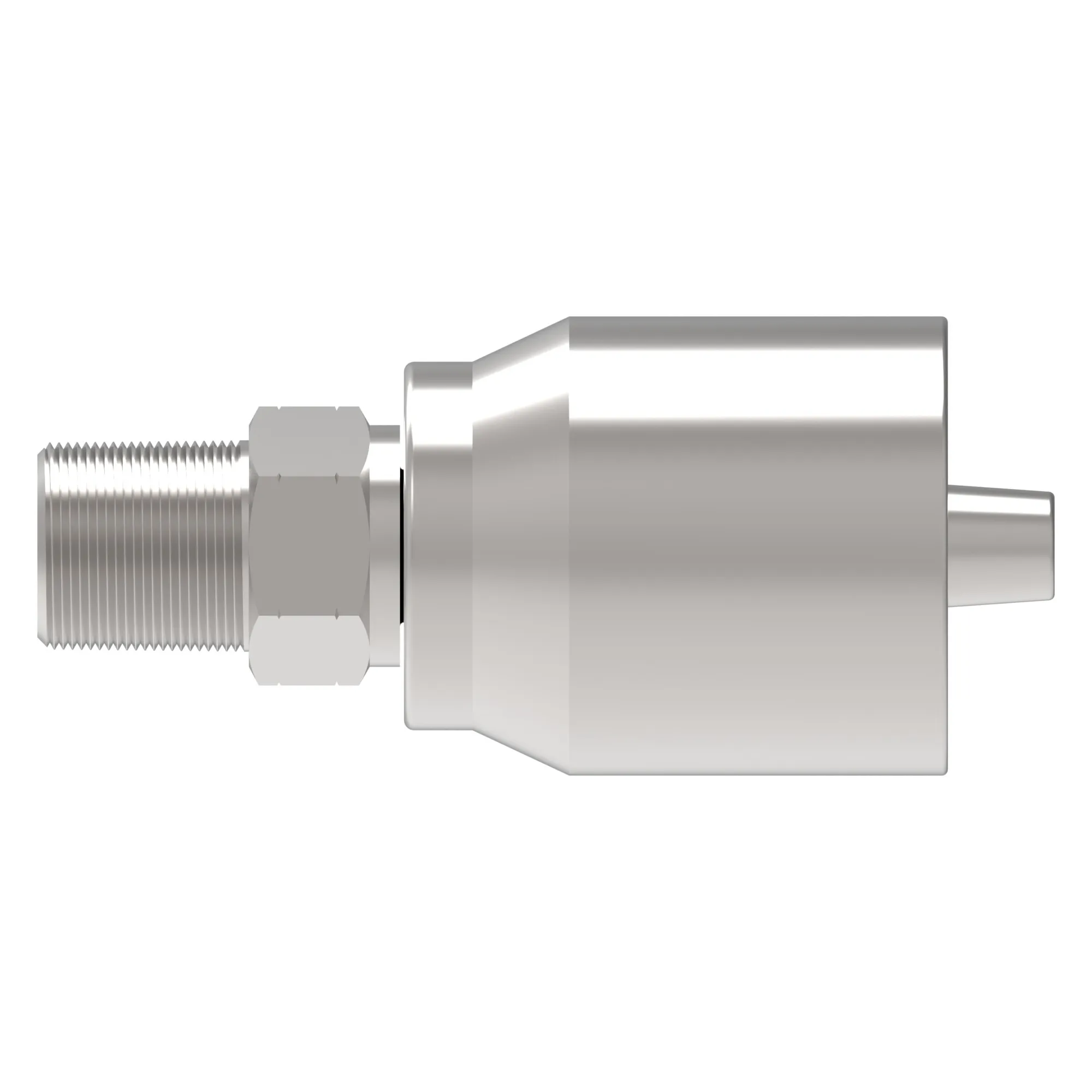

HOSE NIPPLE ASSY,1P/24,NPTF-M/24,CS,STR – 15612Y-24-24Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,1P/24,NPTF-M/24,CS,STR – 15612Y-24-24Z
Specification
| A Dimension In | 4.900 |
|---|---|
| A Dimension Mm | 124.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.500 |
| Compatible Hose Id Mm | 38.100 |
| Construction Style | Crimp |
| End Size 1 | -24 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.960 |
| Hex Size 1 Mm | 49.784 |
| Hose Cut Off Factor In | 2.180 |
| Hose Cut Off Factor Mm | 55.500 |
| Hose Size | -24 |
| Inside Diameter In | 1.2500 |
| Inside Diameter Mm | 32.0000 |
| Product Height In | 2.260 |
| Product Height Mm | 57.404 |
| Product Length In | 4.900 |
| Product Length Mm | 124.460 |
| Product Material | Carbon steel |
| Product Width In | 1.960 |
| Product Width Mm | 49.784 mm |
| Thread Sealant | Yes |
| Thread Size 1 | 1 1/2-11 1/2 NPT |
