Danfoss (Drives) 15612Y-16-16Z

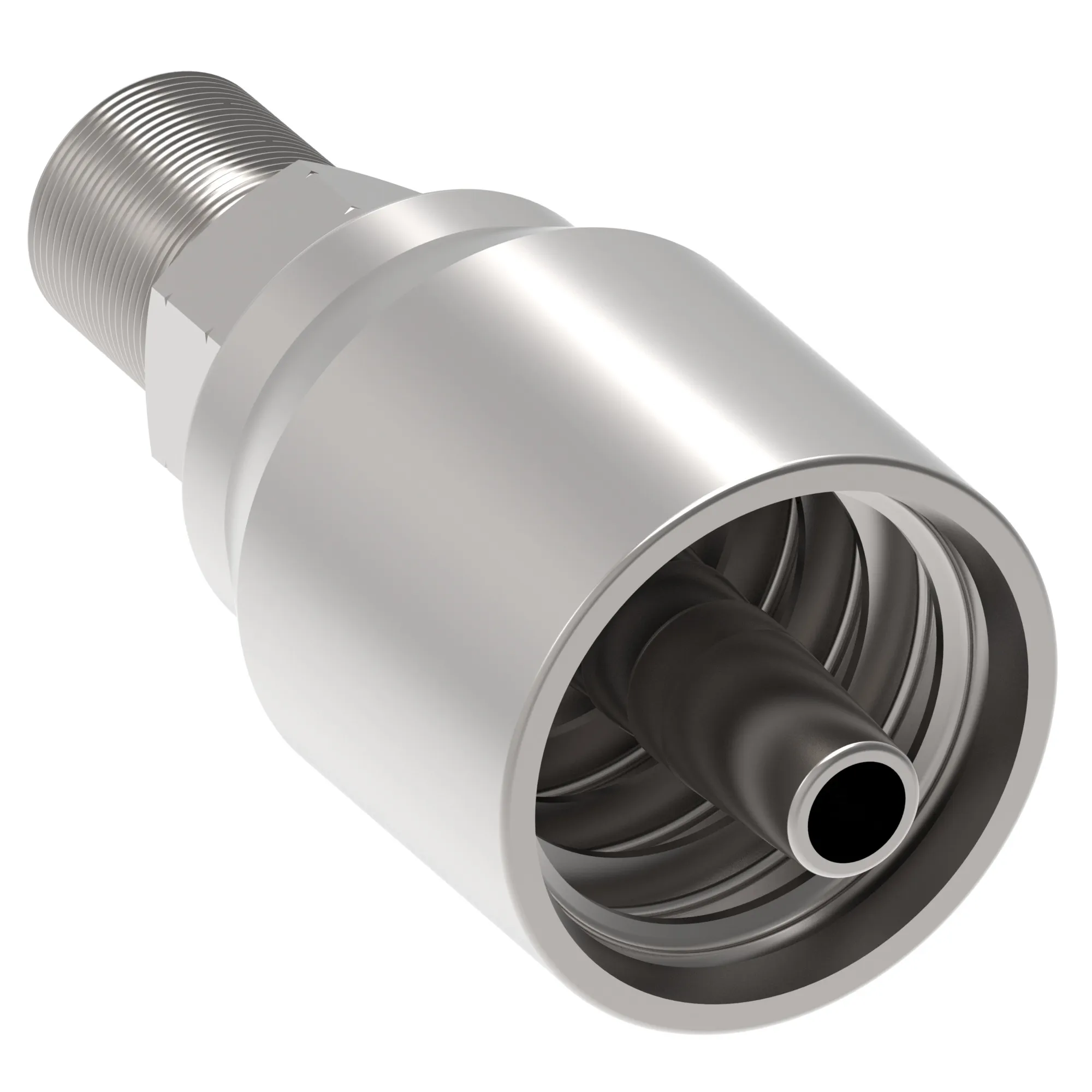

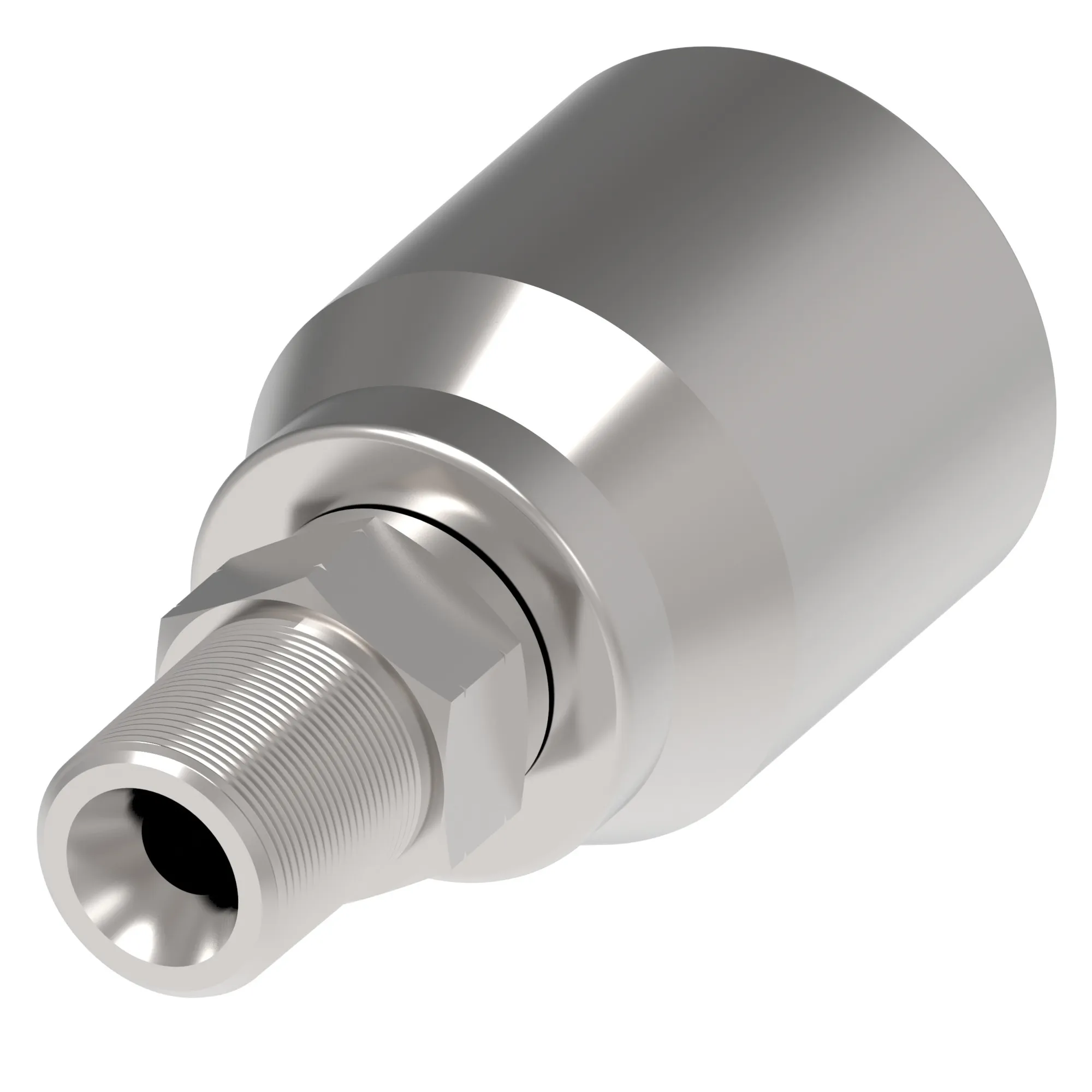

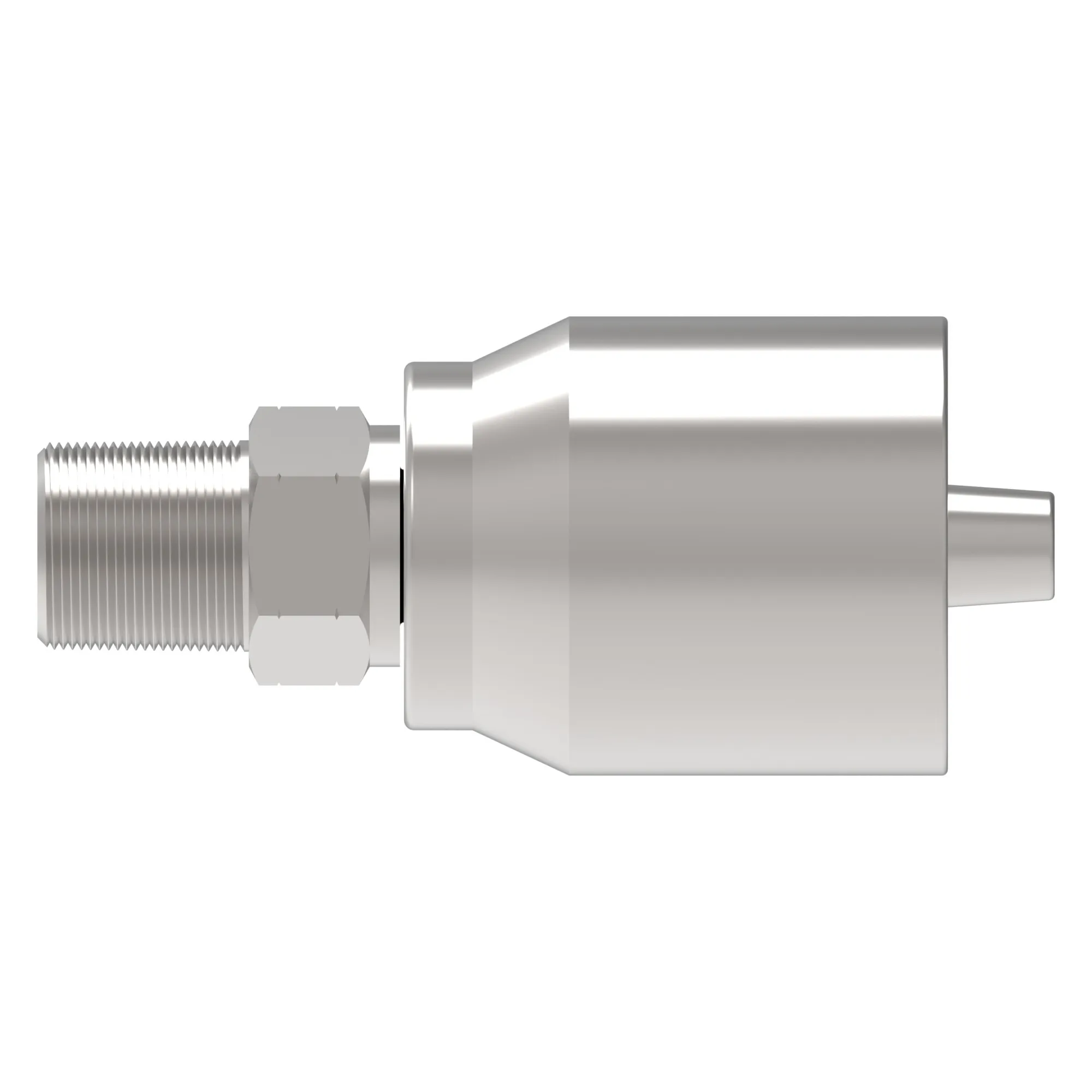

HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR – 15612Y-16-16Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR – 15612Y-16-16Z
Specification
| A Dimension In | 4.070 |
|---|---|
| A Dimension Mm | 103.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.000 |
| Compatible Hose Id Mm | 25.400 |
| Construction Style | Crimp |
| End Size 1 | -16 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hose Cut Off Factor In | 1.870 |
| Hose Cut Off Factor Mm | 47.500 |
| Hose Size | -16 |
| Inside Diameter In | 0.7800 |
| Inside Diameter Mm | 20.0000 |
| Product Height In | 1.842 |
| Product Height Mm | 46.786 |
| Product Length In | 4.075 |
| Product Length Mm | 103.500 |
| Product Material | Carbon steel |
| Product Width In | 1.842 |
| Product Width Mm | 46.786 mm |
| Thread Sealant | Yes |
