Danfoss (Drives) 15612-08-12Z
HOSE NIPPLE ASSY,2P/12,NPTF-M/08,CS,STR – 15612-08-12Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

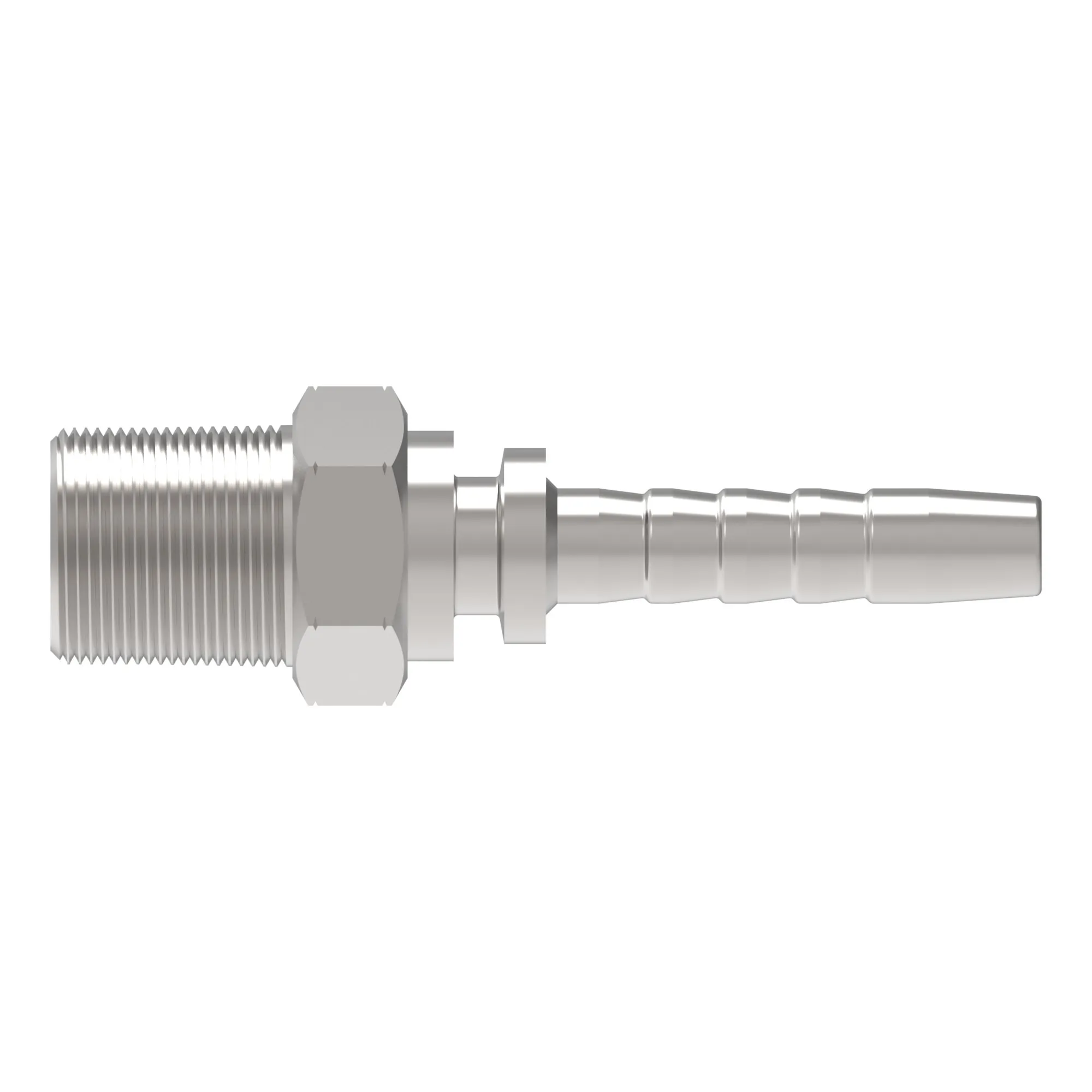

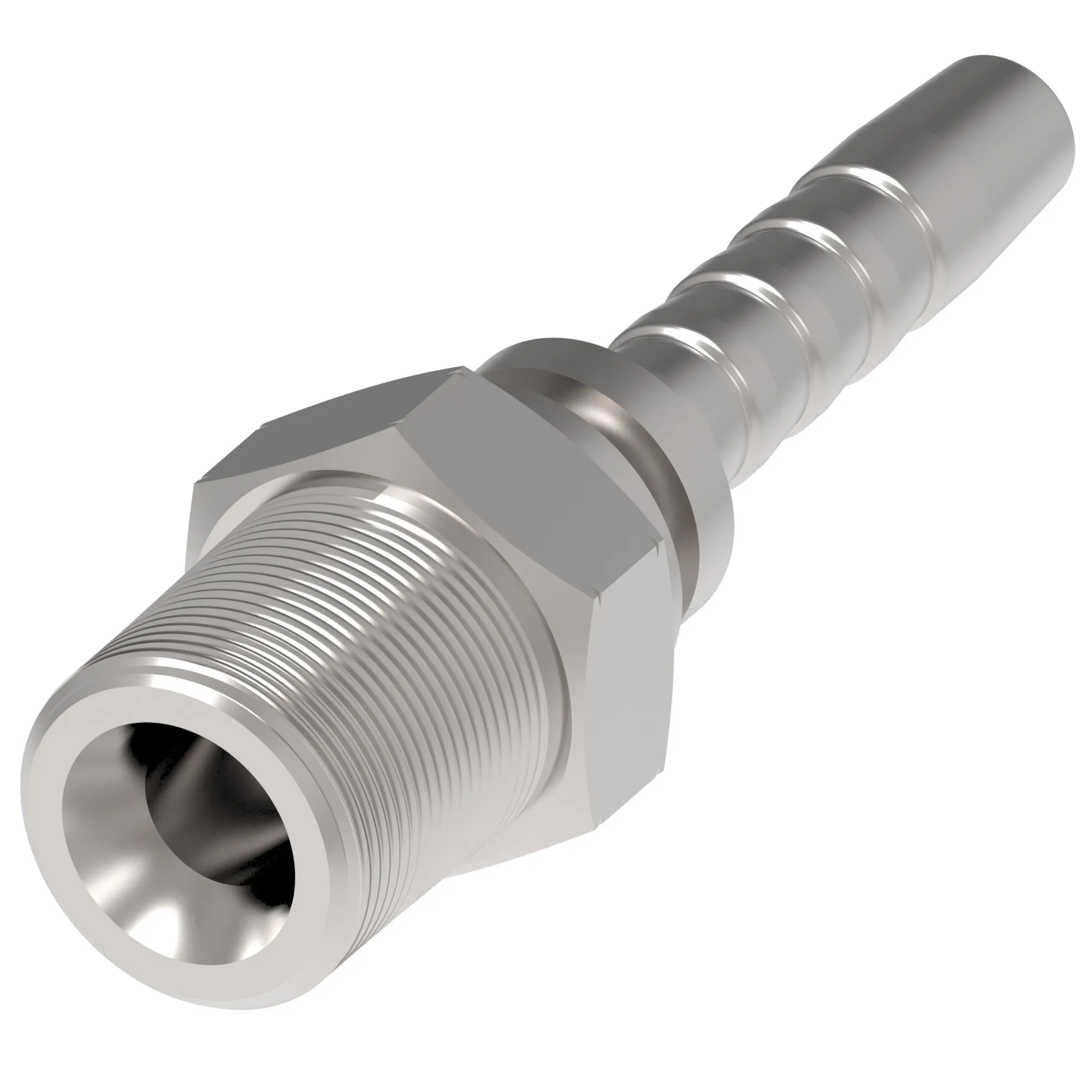

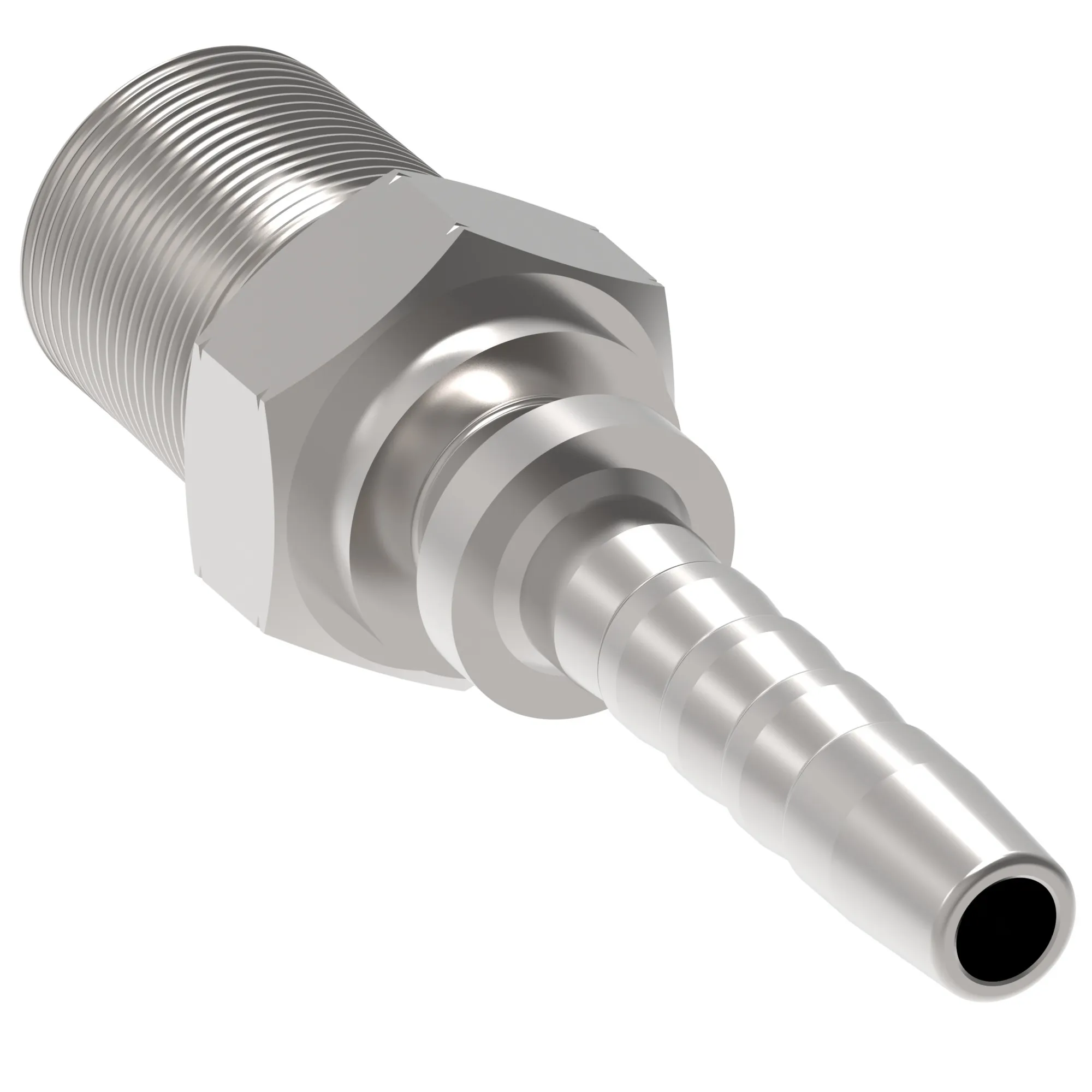

HOSE NIPPLE ASSY,2P/12,NPTF-M/08,CS,STR – 15612-08-12Z
Specification
| A Dimension In | 3.350 |
|---|---|
| A Dimension Mm | 85.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.750 |
| Compatible Hose Id Mm | 19.000 |
| Construction Style | Crimp |
| End Size 1 | -8 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.063 |
| Hex Size 1 Mm | 27.000 |
| Hose Cut Off Factor In | 1.540 |
| Hose Cut Off Factor Mm | 39.300 |
| Hose Size | -12 |
| Inside Diameter In | 0.5900 |
| Inside Diameter Mm | 15.0000 |
| Product Height In | 1.227 |
| Product Height Mm | 31.165 |
| Product Length In | 3.346 |
| Product Length Mm | 84.988 |
| Product Material | Carbon steel |
| Product Width In | 1.063 |
| Product Width Mm | 27.000 mm |
| Series | Winner 2-Piece |
| Thread Sealant | Yes |
| Thread Size 1 | 1/2-14 NPT |
