Danfoss (Drives) 15611Y-F16-16Z
HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR – 15611Y-F16-16Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

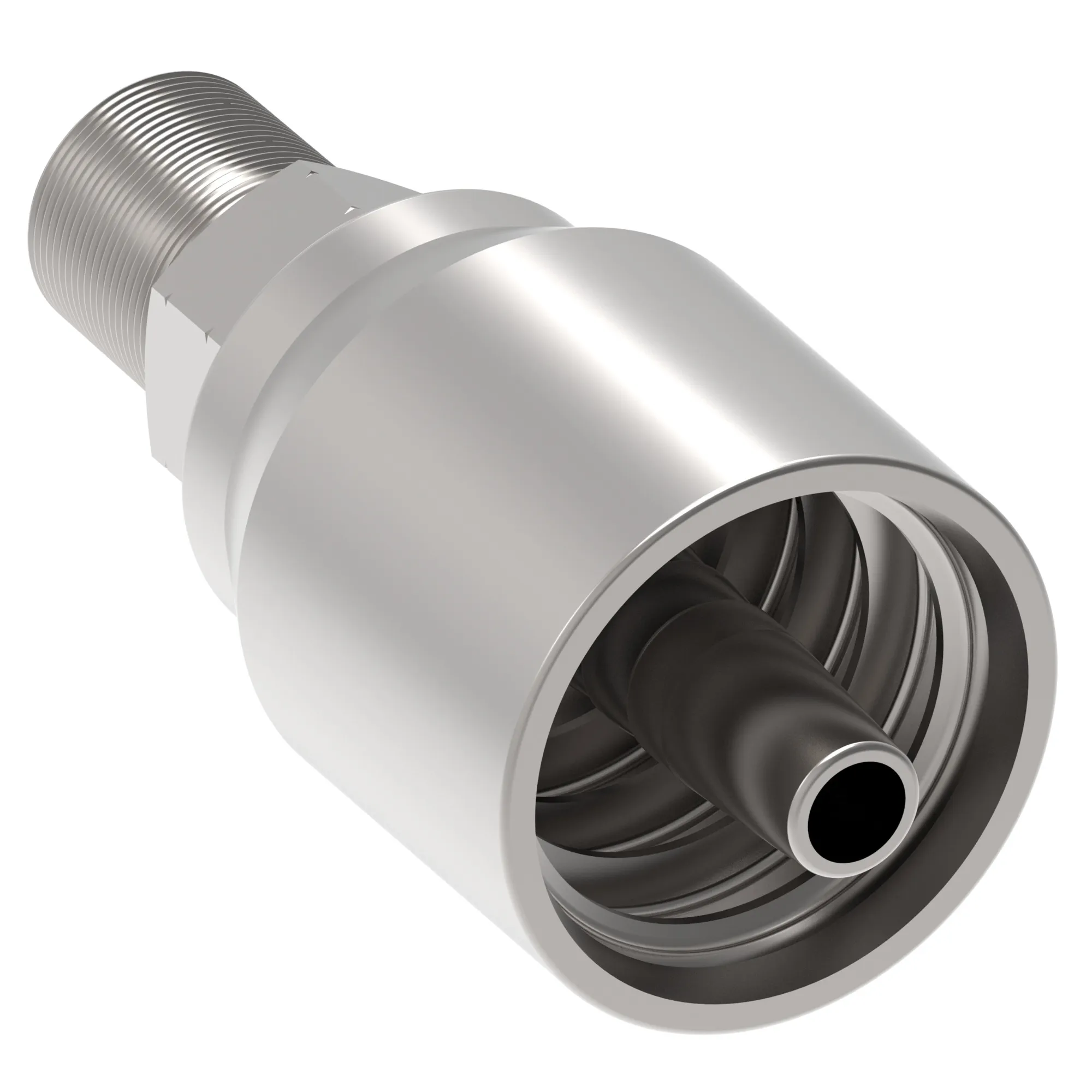

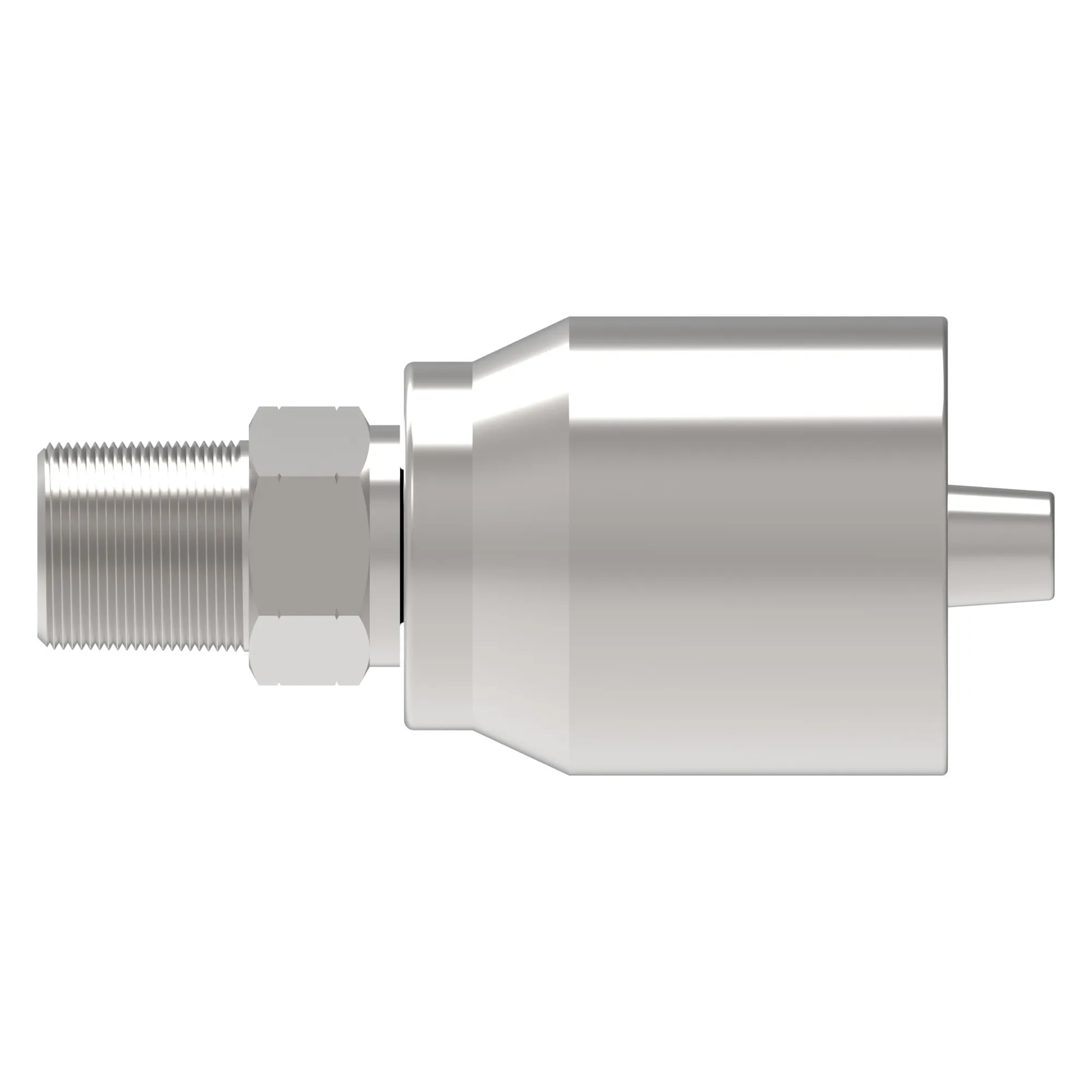

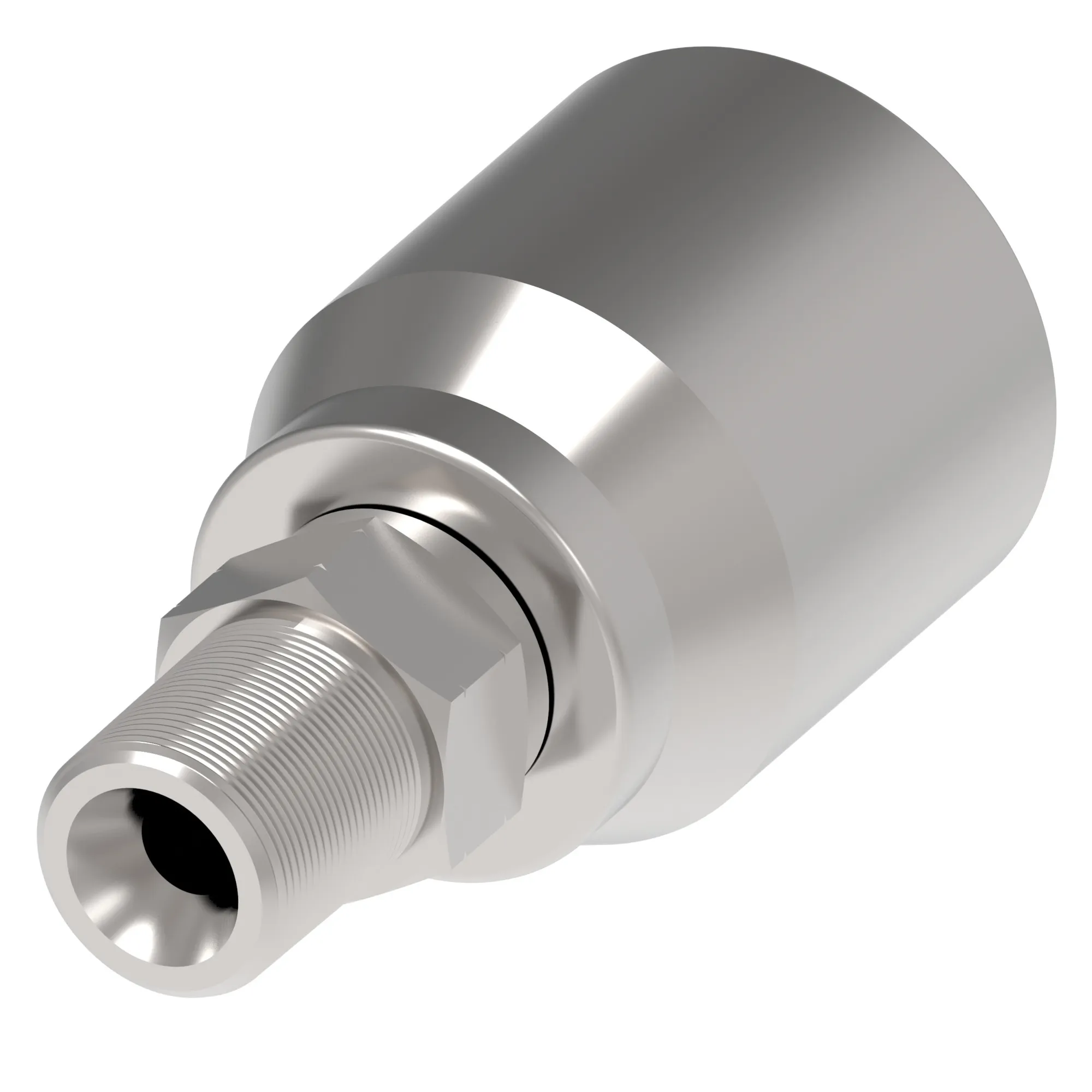

HOSE NIPPLE ASSY,1P/16,NPTF-M/16,CS,STR – 15611Y-F16-16Z
Specification
| A Dimension In | 3.680 |
|---|---|
| A Dimension Mm | 93.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.000 |
| Compatible Hose Id Mm | 25.400 |
| Compatible Hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| End Size 1 | -16 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.417 |
| Hex Size 1 Mm | 35.992 |
| Hose Cut Off Factor In | 1.830 |
| Hose Cut Off Factor Mm | 46.500 |
| Hose Size | -16 |
| Inside Diameter In | 0.830 |
| Inside Diameter Mm | 21.000 |
| Product Height In | 1.929 |
| Product Height Mm | 48.996 |
| Product Length In | 3.680 |
| Product Length Mm | 93.472 |
| Product Material | Carbon steel |
| Product Width In | 1.929 |
| Product Width Mm | 48.996 |
| Thread Sealant | Yes |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
