Danfoss (Drives) 15611Y-F08-08CNZ

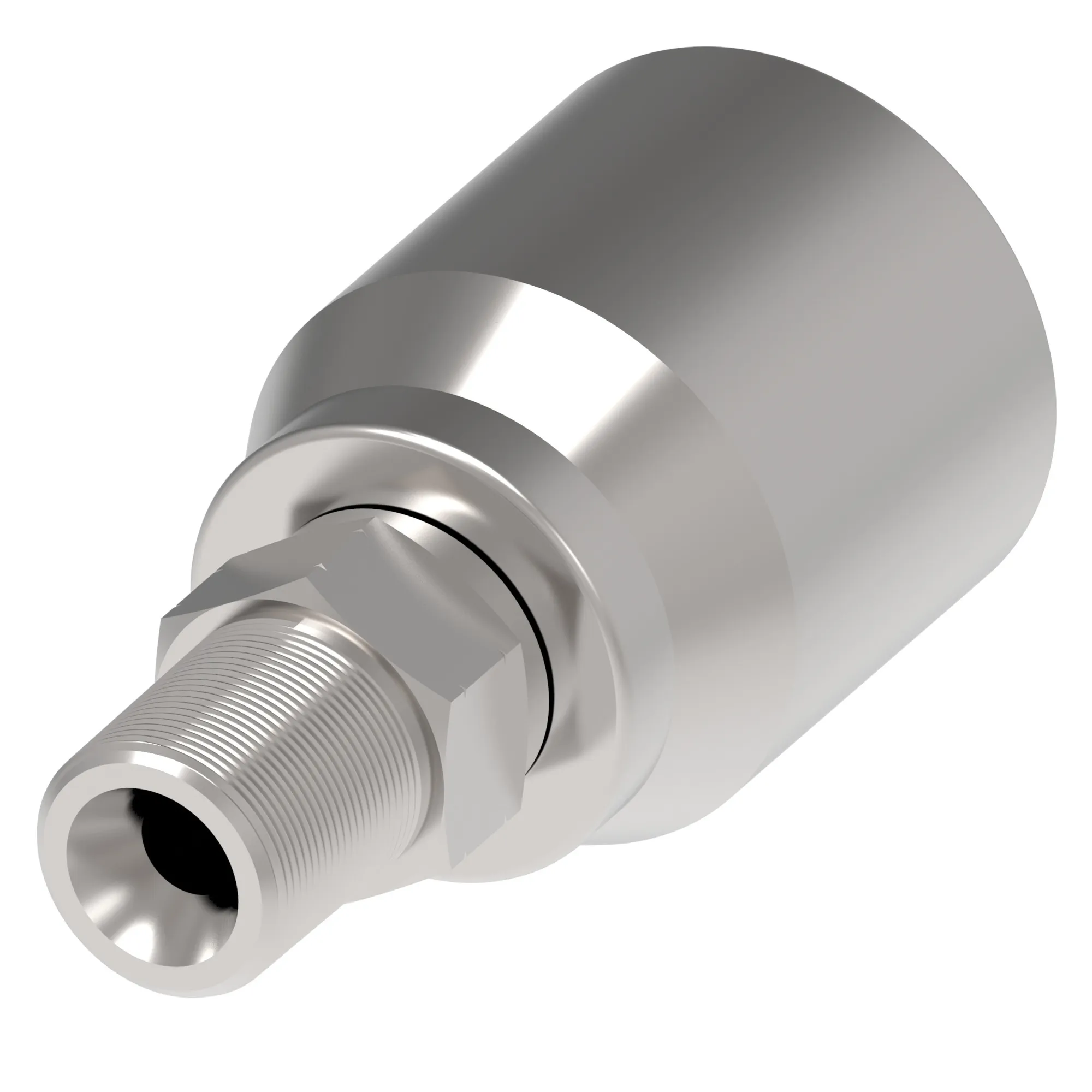

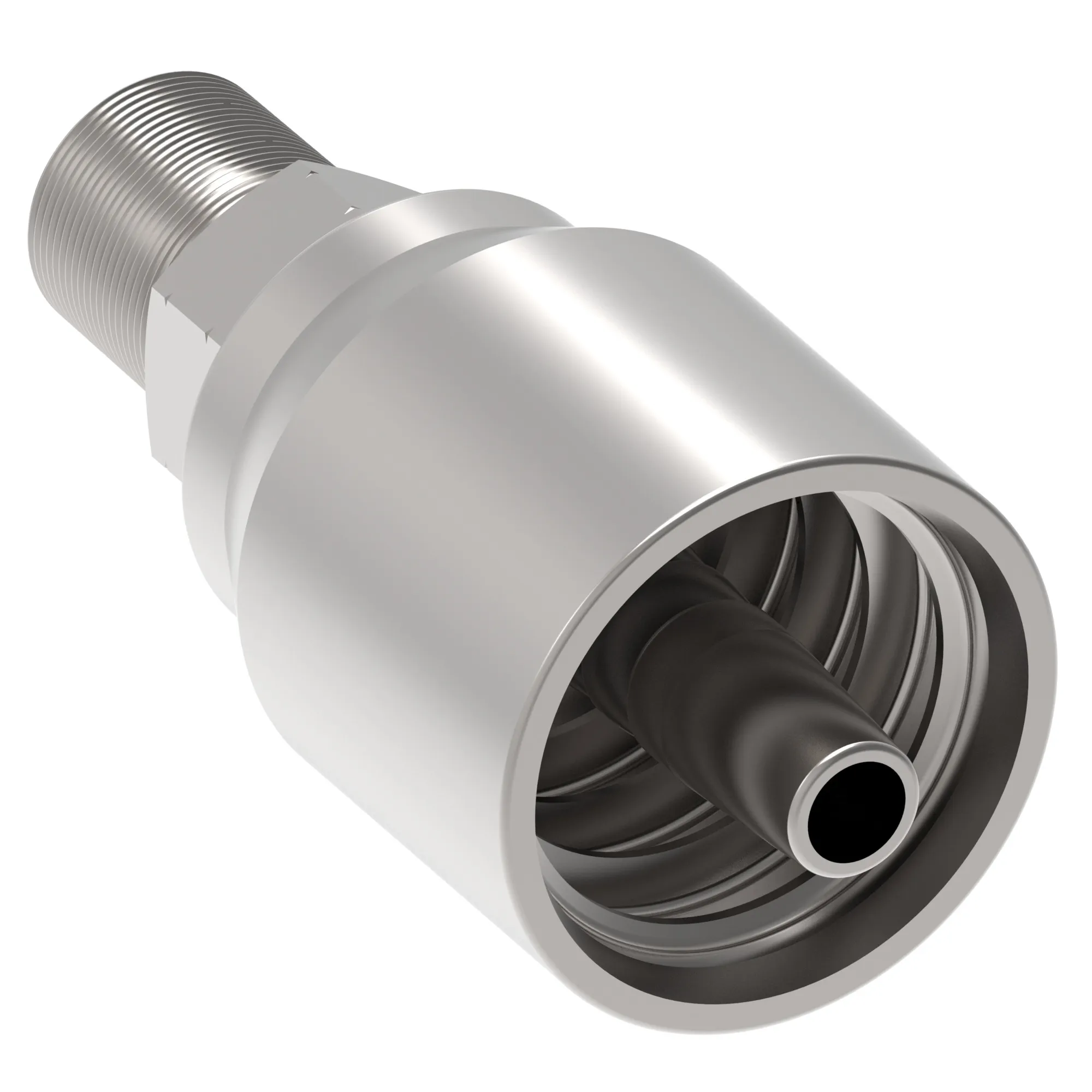

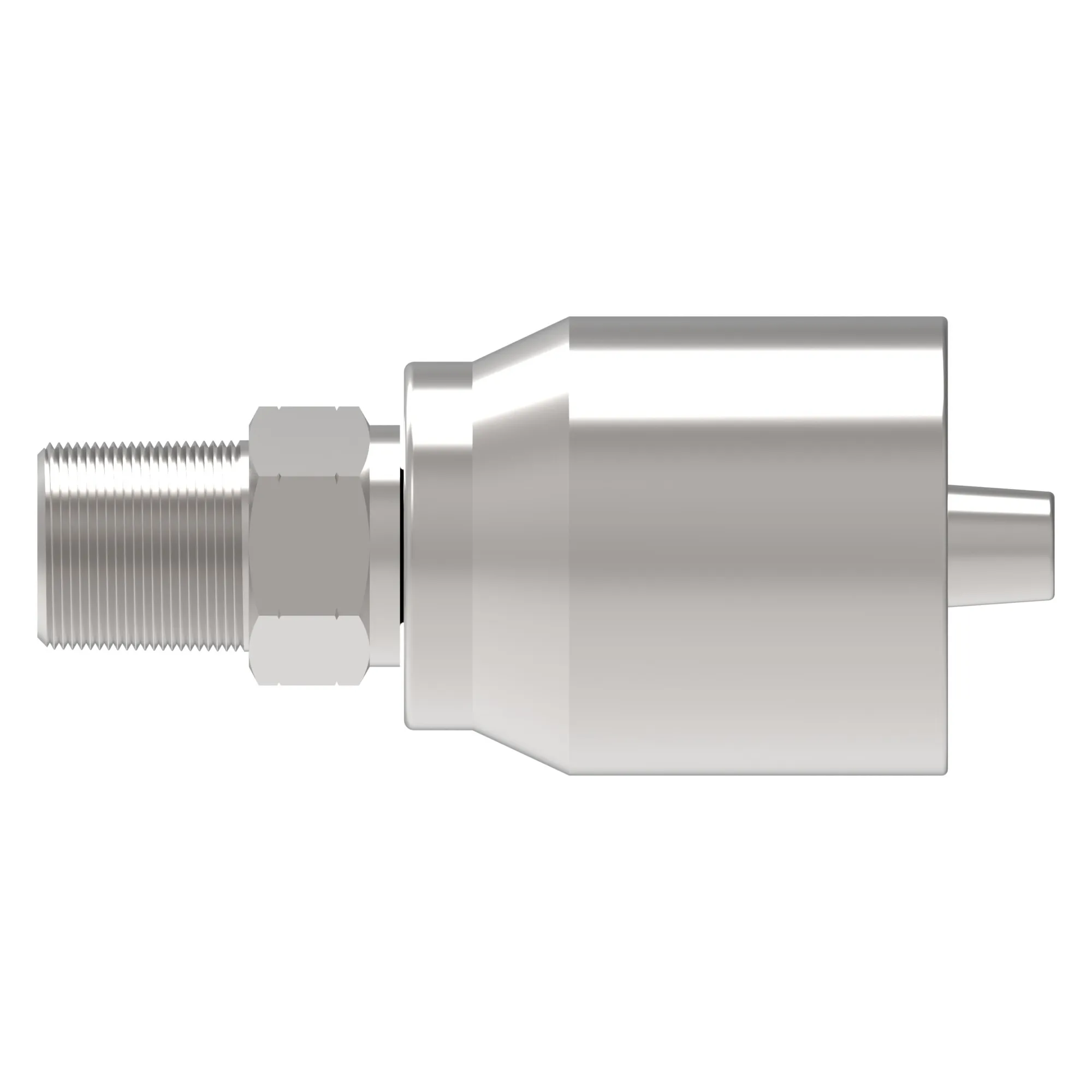

HOSE NIPPLE ASSY,1P/08,NPTF-M/08,CS,STR – 15611Y-F08-08CNZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,1P/08,NPTF-M/08,CS,STR – 15611Y-F08-08CNZ
Specification
| A Dimension In | 2.598 |
|---|---|
| A Dimension Mm | 66.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Construction Style | Crimp |
| End Size 1 | -8 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.870 |
| Hex Size 1 Mm | 22.098 |
| Hose Cut Off Factor In | 1.350 |
| Hose Cut Off Factor Mm | 34.500 |
| Hose Size | -8 |
| Inside Diameter In | 0.390 |
| Inside Diameter Mm | 10.000 |
| Product Height In | 1.140 |
| Product Height Mm | 28.956 |
| Product Length In | 2.590 |
| Product Length Mm | 65.786 |
| Product Material | Carbon steel |
| Product Width In | 1.140 |
| Product Width Mm | 28.956 |
| Thread Sealant | Yes |
| Thread Size 1 | 1/2-14 NPTF |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
