Danfoss (Drives) 15611Y-04-04FCZ

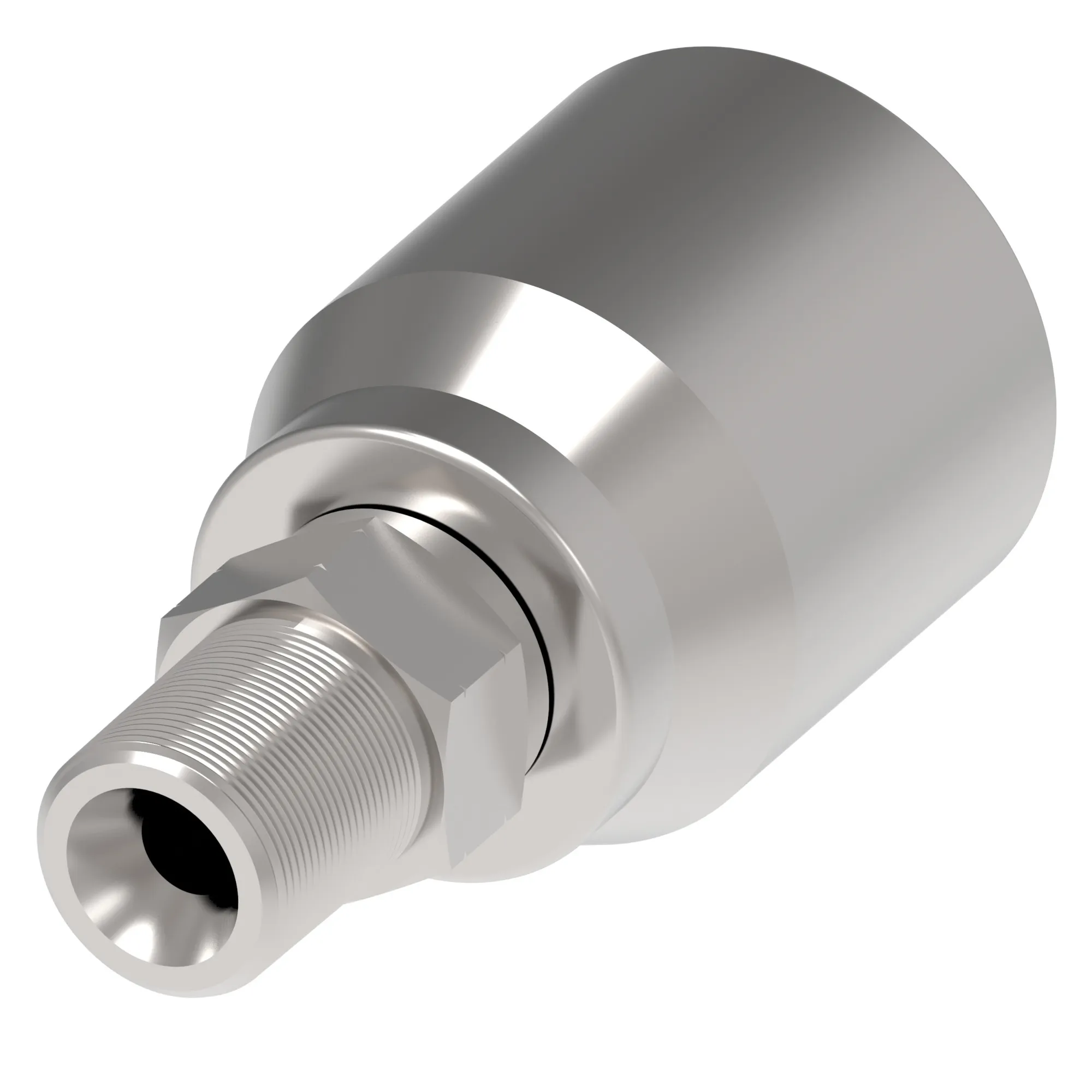

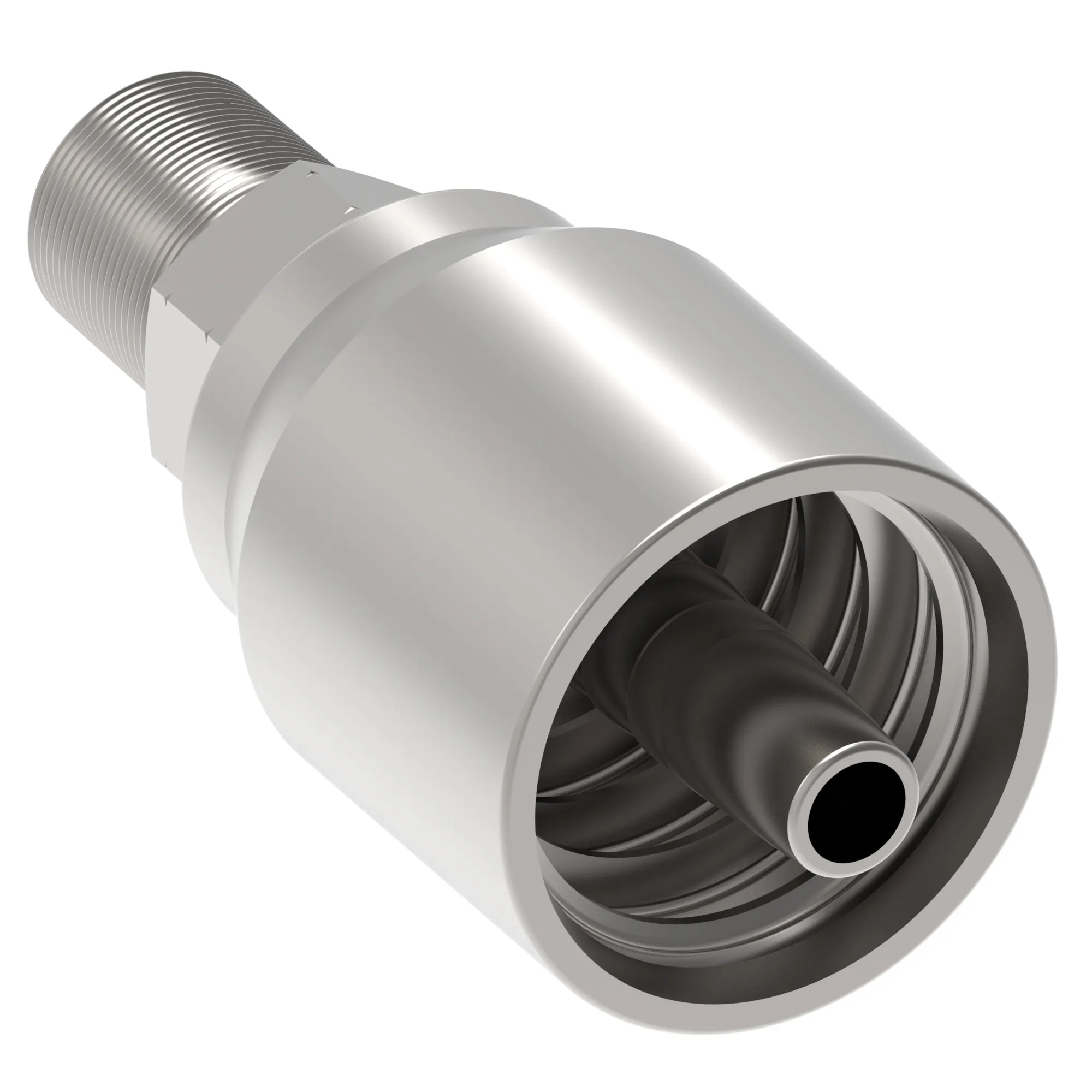

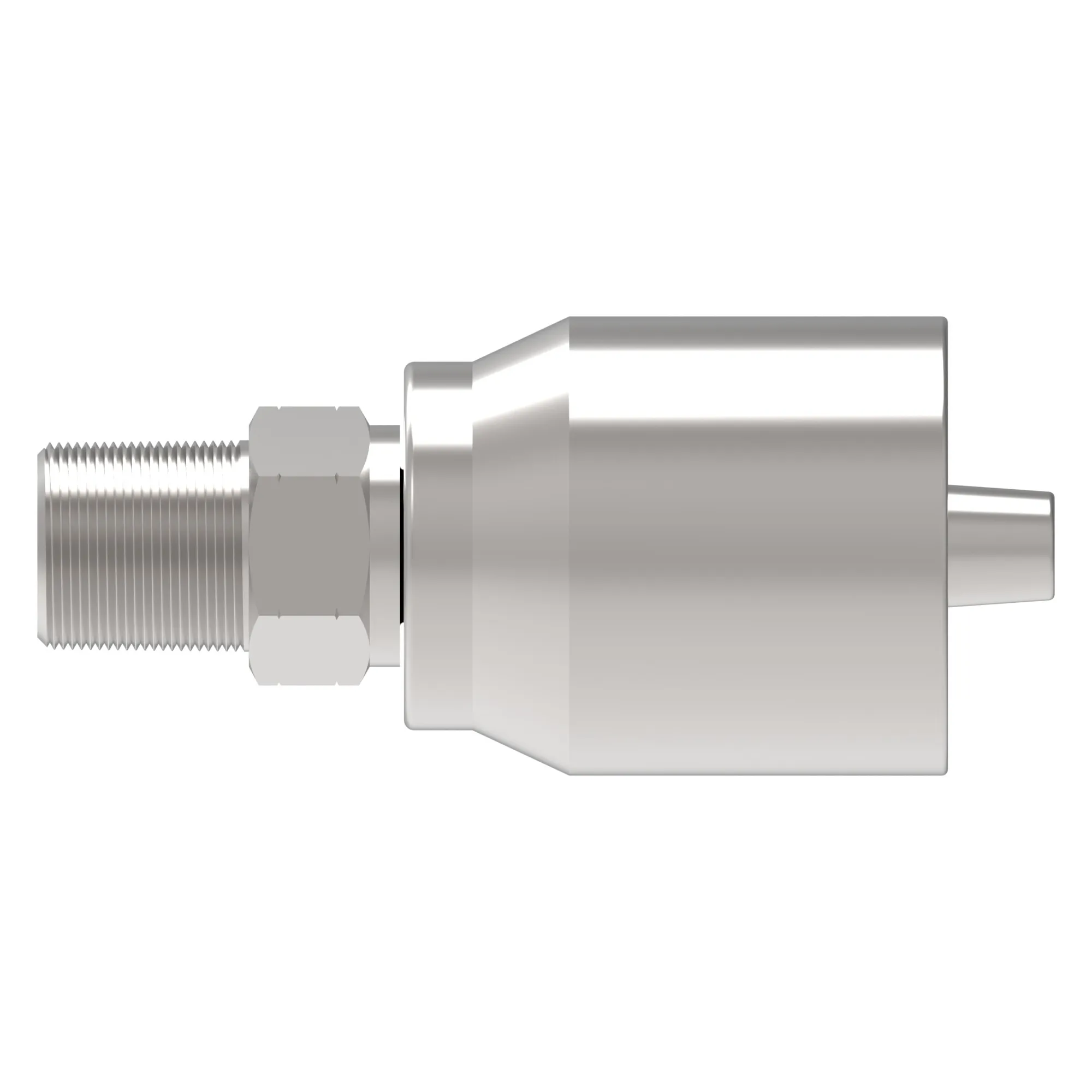

HOSE NIPPLE ASSY,1P/04,NPTF-M/04,CS,STR – 15611Y-04-04FCZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,1P/04,NPTF-M/04,CS,STR – 15611Y-04-04FCZ
Specification
| A Dimension In | 2.200 |
|---|---|
| A Dimension Mm | 56.000 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Construction Style | Crimp |
| End Size 1 | -4 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.669 |
| Hex Size 1 Mm | 17.000 |
| Hose Cut Off Factor In | 1.100 |
| Hose Cut Off Factor Mm | 28.000 |
| Hose Size | -4 |
| Inside Diameter In | 0.157 |
| Inside Diameter Mm | 4.000 |
| Product Height In | 0.772 |
| Product Height Mm | 19.630 |
| Product Length In | 2.204 |
| Product Length Mm | 56.000 |
| Product Material | Carbon steel |
| Product Width In | 0.669 |
| Product Width Mm | 17 |
| Thread Sealant | No |
| Thread Size 1 | 1/4-18 NPTF |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
