Danfoss (Drives) 15611SW-04-06SZ

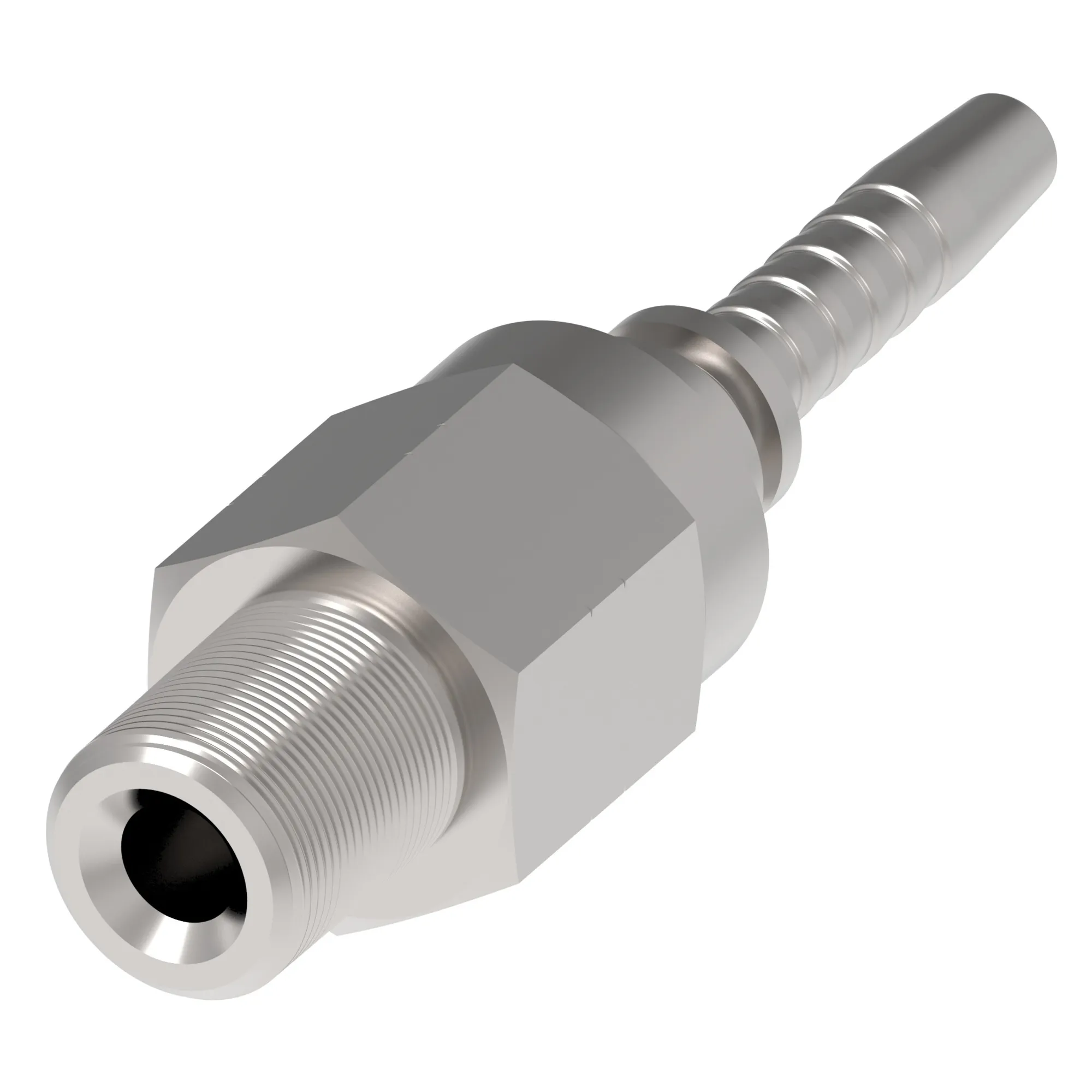

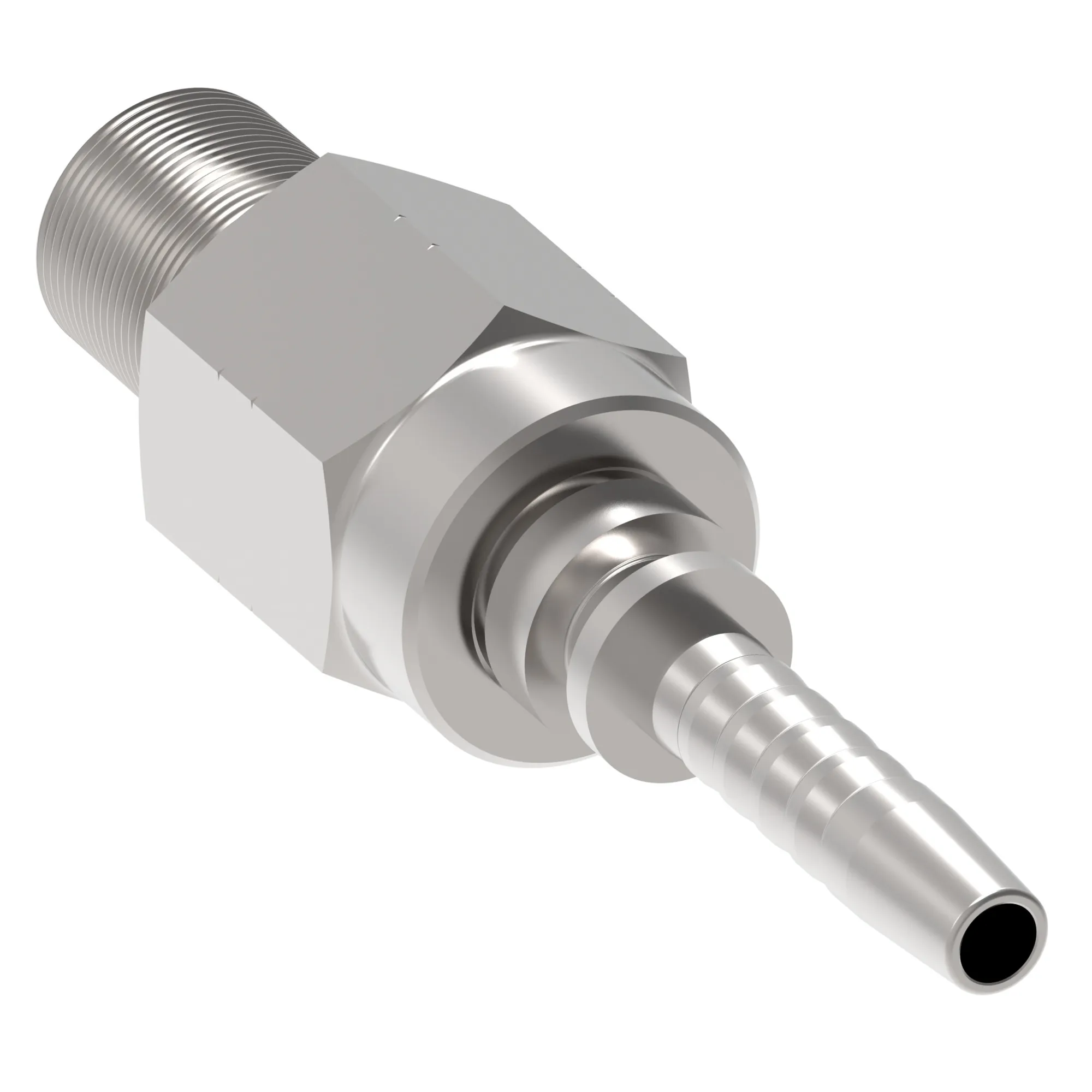

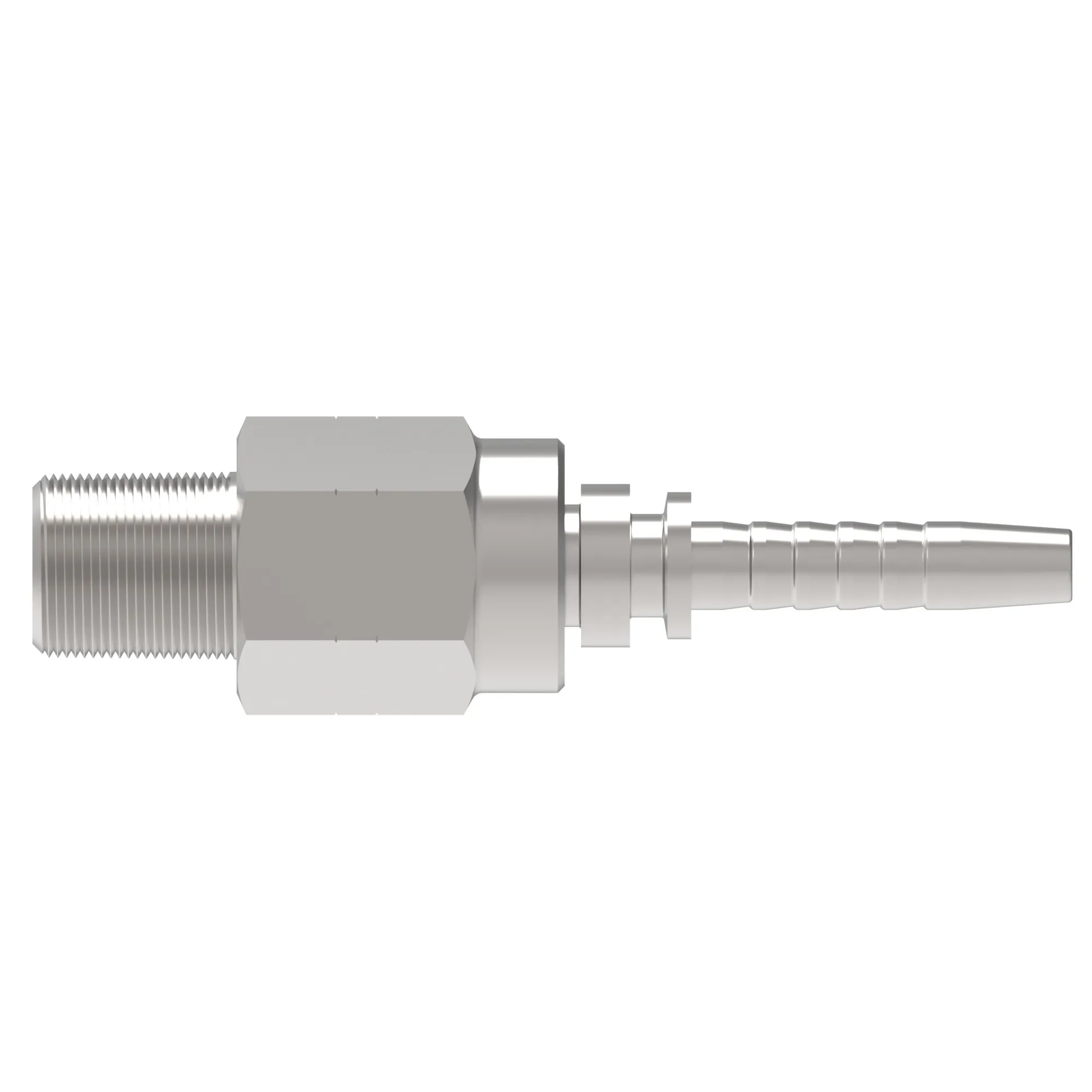

HOSE NIPPLE, 2P/06, NPTF-M/04, CS, STR – 15611SW-04-06SZ
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE, 2P/06, NPTF-M/04, CS, STR – 15611SW-04-06SZ
Specification
| A Dimension In | 2.240 |
|---|---|
| A Dimension Mm | 57.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Crimp |
| End Size 1 | -4 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.670 |
| Hex Size 1 Mm | 17.018 |
| Hose Cut Off Factor In | 1.063 |
| Hose Cut Off Factor Mm | 27.000 |
| Hose Size | -6 |
| Inside Diameter In | 0.280 |
| Inside Diameter Mm | 7.000 |
| Product Height In | 0.770 |
| Product Height Mm | 19.558 |
| Product Length In | 2.244 |
| Product Length Mm | 56.997 |
| Product Material | Carbon steel |
| Product Width In | 0.670 |
| Product Width Mm | 17.018 |
| Series | Winner 2-Piece |
| Thread Sealant | Yes |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
