Danfoss (Drives) 15611-F02-04ZF

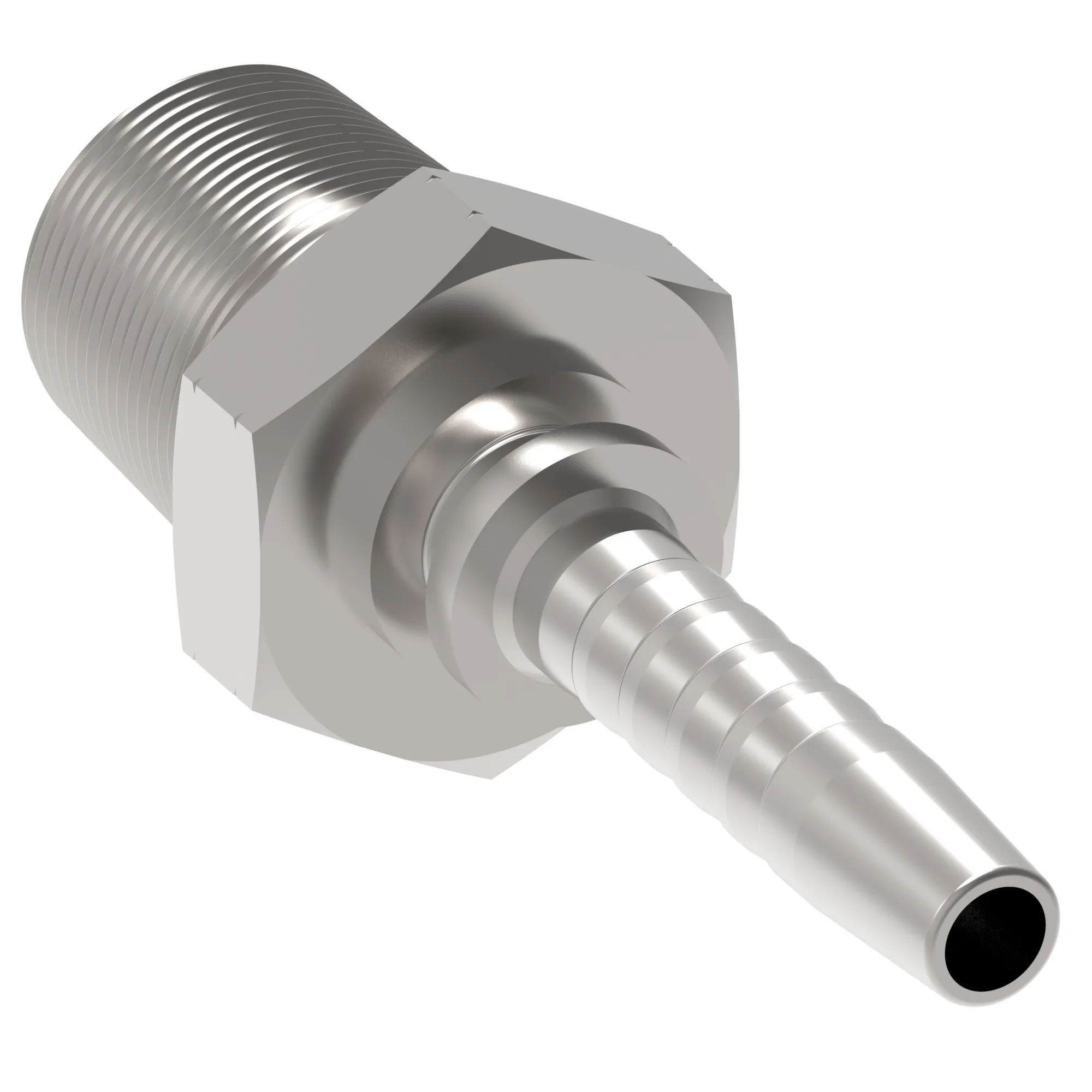

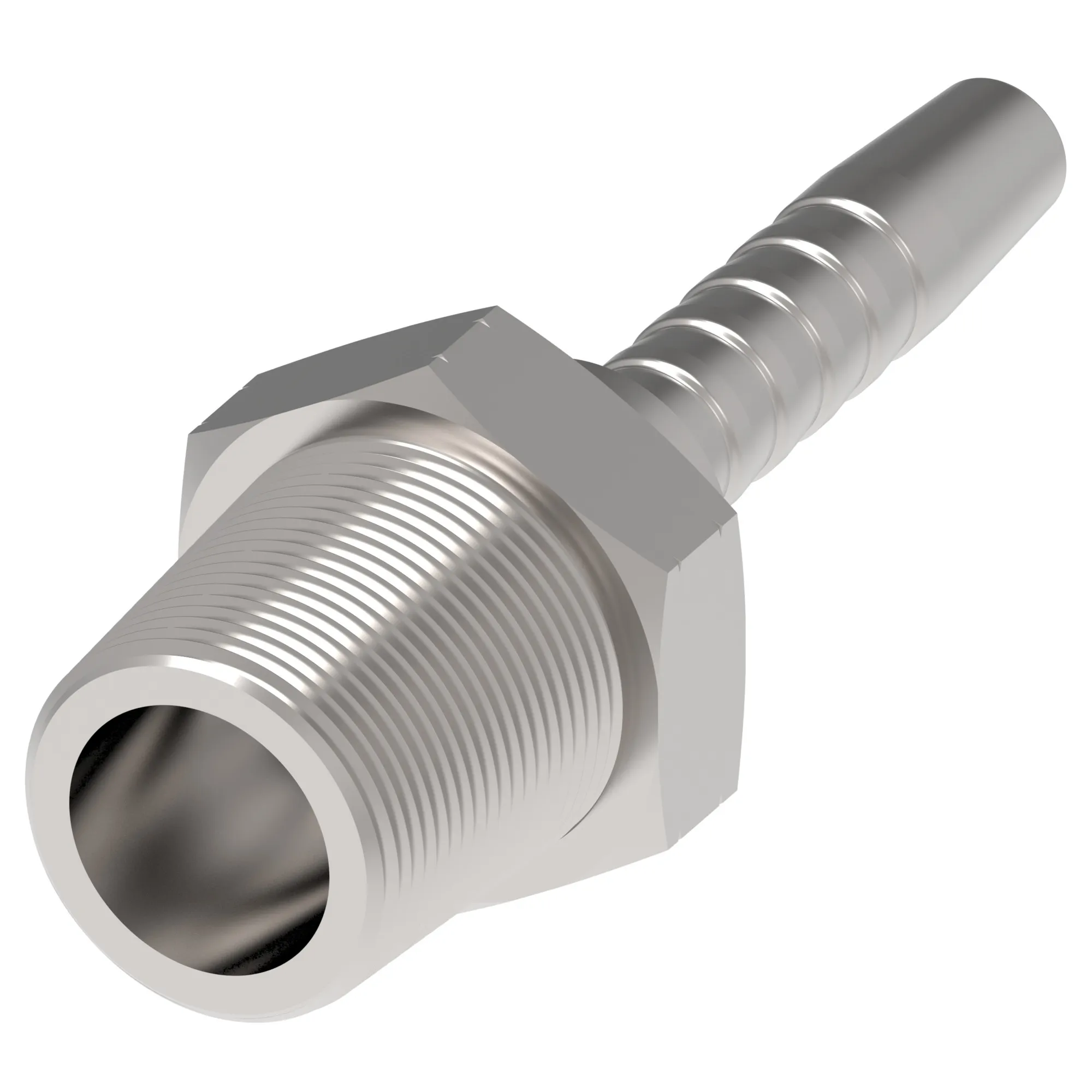

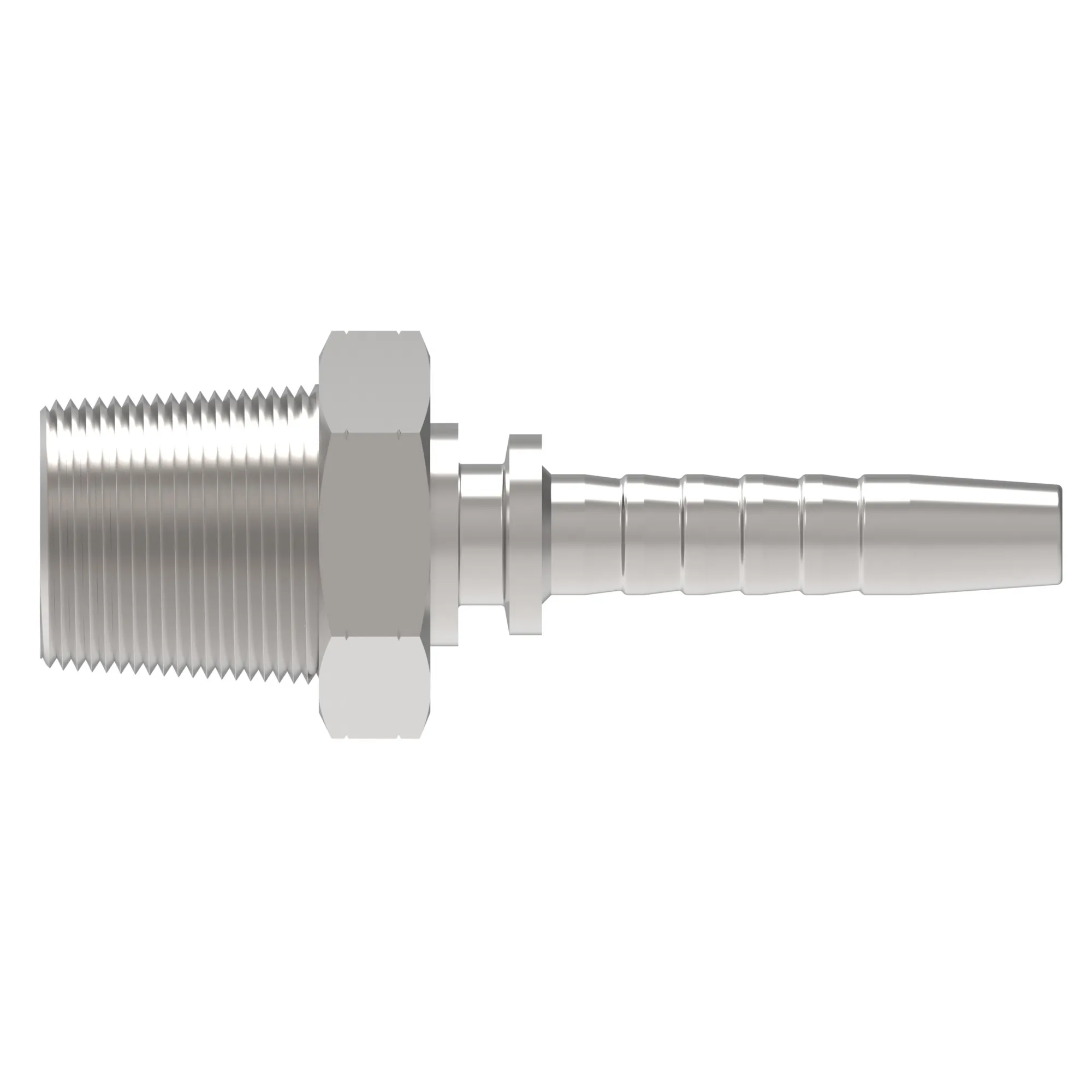

HOSE NIPPLE ASSY,2P/04,NPTF-M/02,CS,STR – 15611-F02-04ZF
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/04,NPTF-M/02,CS,STR – 15611-F02-04ZF
Specification
| E A N/ U P C | 678146191571 |
|---|---|
| A Dimension In | 1.990 |
| A Dimension Mm | 50.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Compatible Hoses | EC110, EC115, EC118, EC210, EC215 |
| Construction Style | Crimp |
| End Size 1 | -2 |
| End Type 1 | Male pipe (NPTF) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.472 |
| Hex Size 1 Mm | 11.989 |
| Hex Size 2 Mm | 12.000 |
| Hose Cut Off Factor In | 0.890 |
| Hose Cut Off Factor Mm | 22.500 |
| Hose Size | -4 |
| Inside Diameter In | 0.157 |
| Inside Diameter Mm | 4.000 |
| Product Height In | 0.540 |
| Product Height Mm | 13.716 |
| Product Length In | 1.990 |
| Product Length Mm | 50.546 |
| Product Material | Carbon steel |
| Product Width In | 0.472 |
| Product Width Mm | 11.988 |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | 1/8-27 NPTF |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
