Danfoss (Drives) 15611-24-22Z

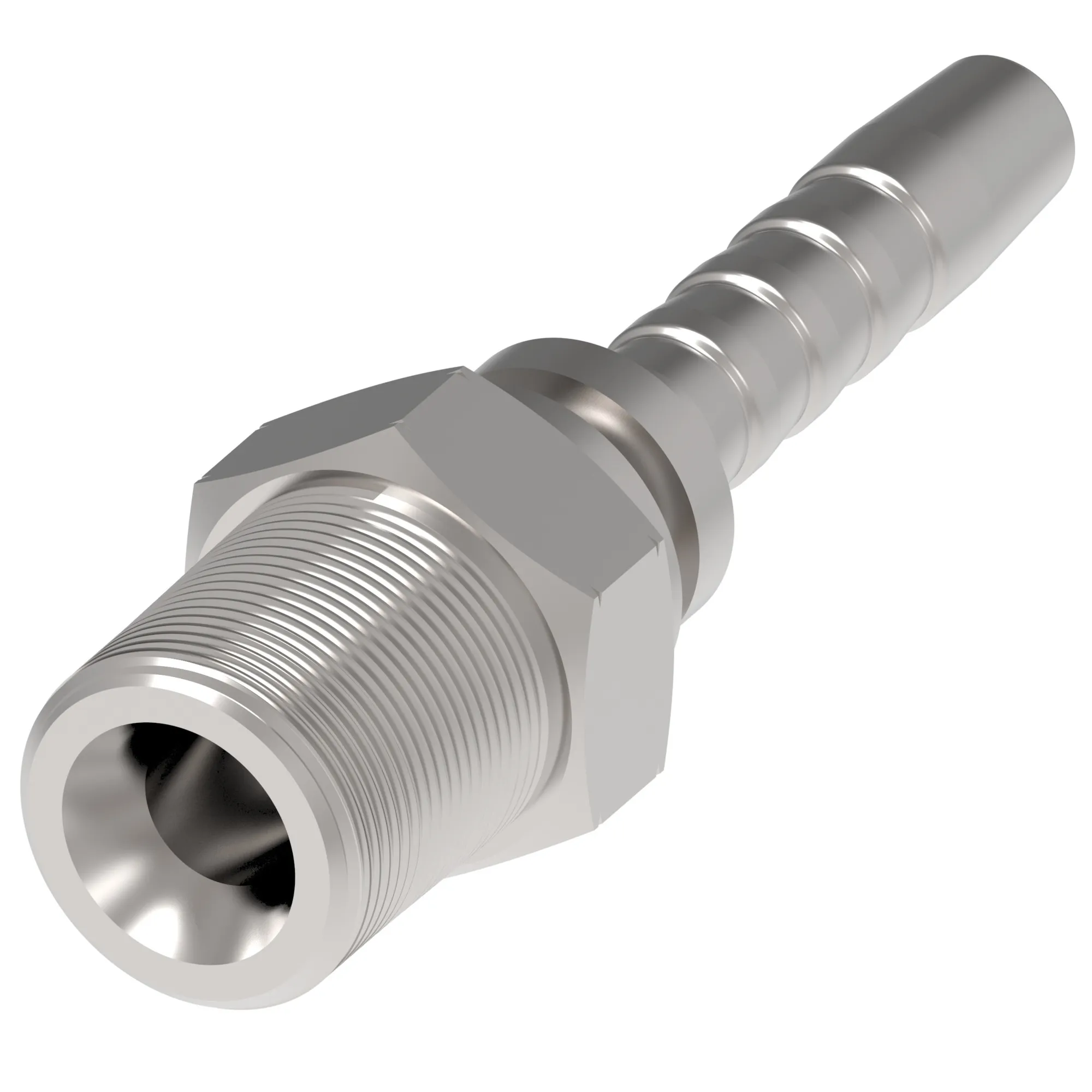

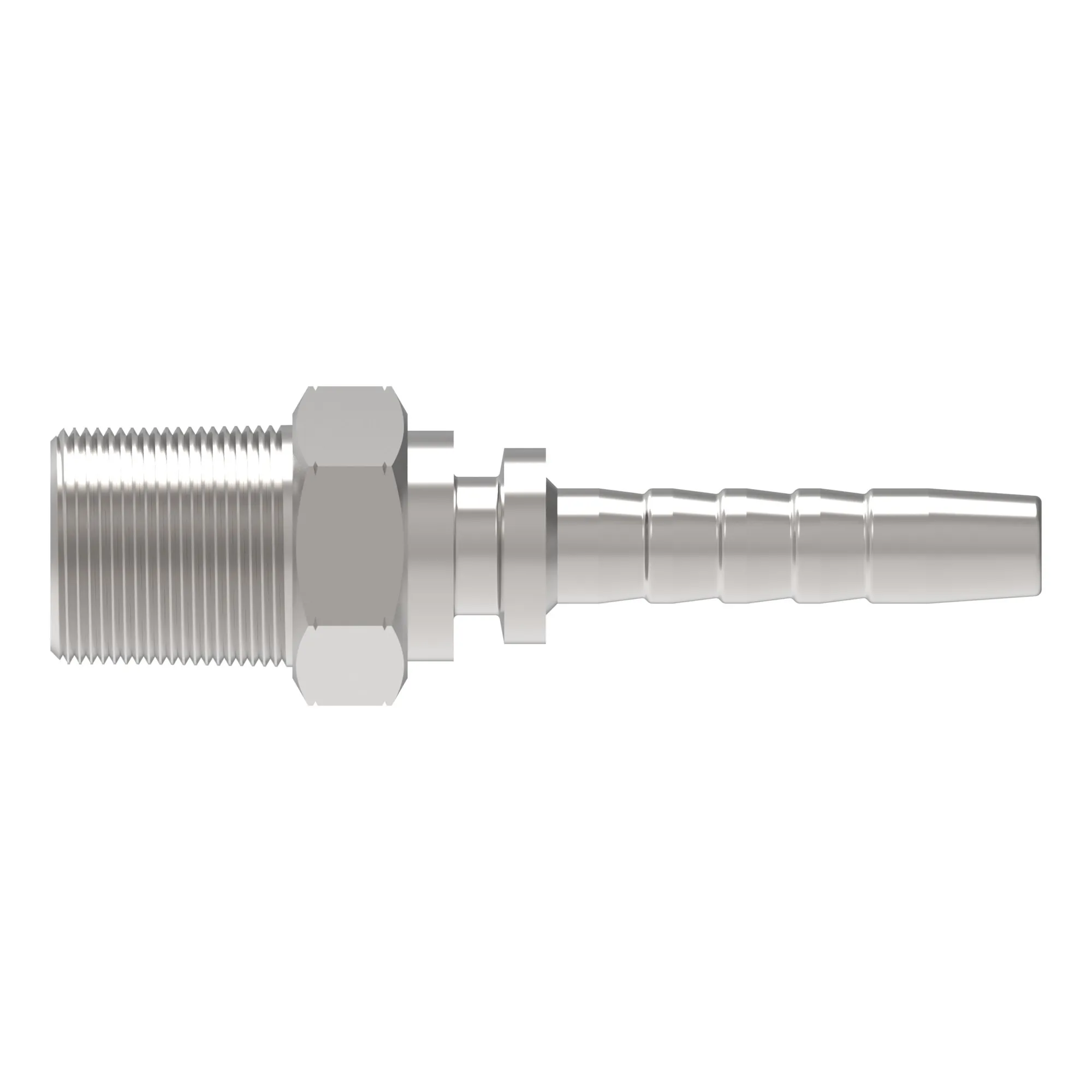

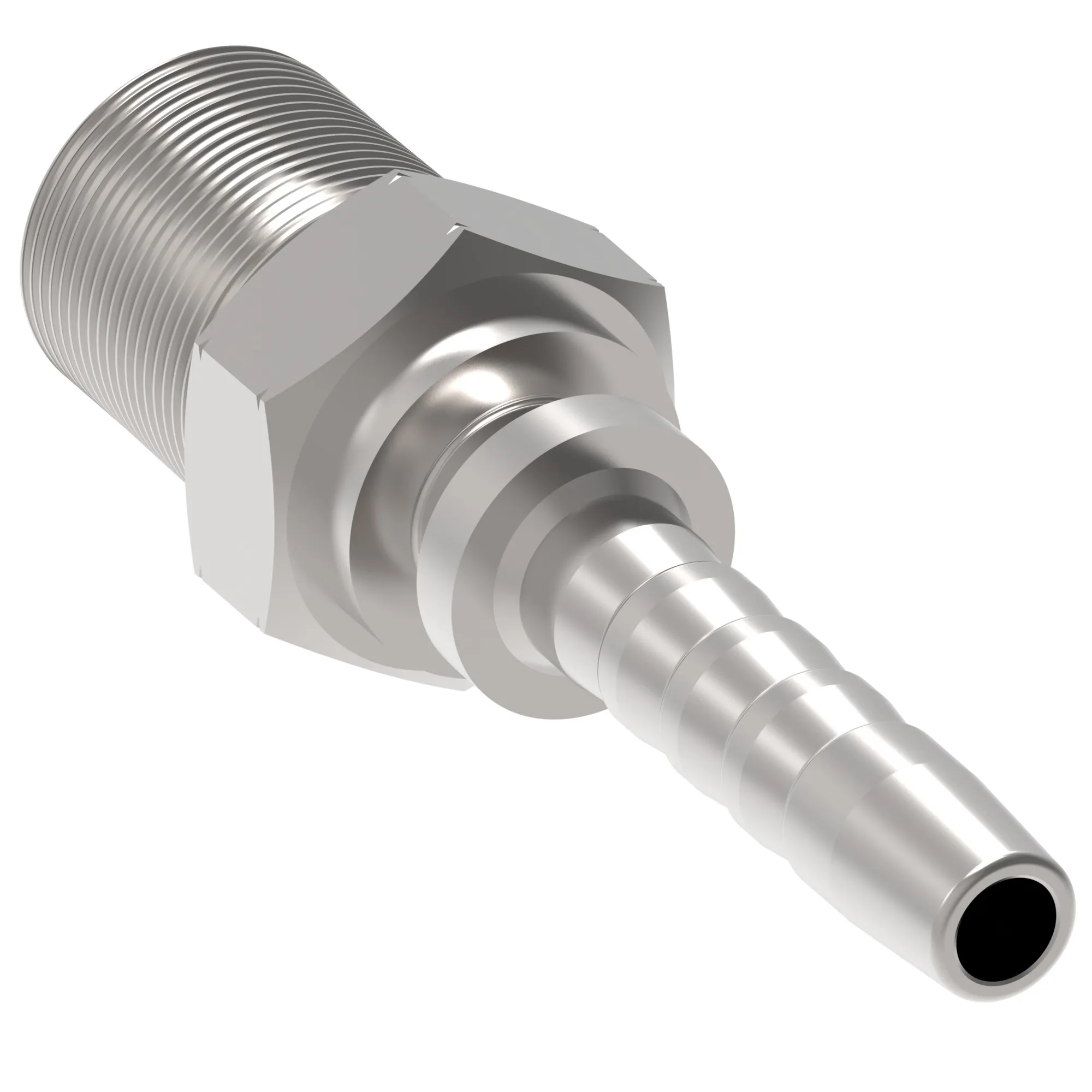

HOSE NIPPLE ASSY,2P/22,NPT-M/24,CS,STR – 15611-24-22Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/22,NPT-M/24,CS,STR – 15611-24-22Z
Specification
| A Dimension In | 4.140 |
|---|---|
| A Dimension Mm | 105.200 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.380 |
| Compatible Hose Id Mm | 34.900 |
| Construction Style | Crimp |
| End Size 1 | -24 |
| End Type 1 | Male pipe (NPT) |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.968 |
| Hex Size 1 Mm | 49.987 |
| Hose Cut Off Factor In | 2.010 |
| Hose Cut Off Factor Mm | 51.200 |
| Hose Size | -22 |
| Inside Diameter In | 1.180 |
| Inside Diameter Mm | 30.000 |
| Product Height In | 2.272 |
| Product Height Mm | 57.708 |
| Product Length In | 4.141 |
| Product Length Mm | 10.518 |
| Product Material | Carbon steel |
| Product Width In | 1.968 |
| Product Width Mm | 49.987 |
| Series | Winner 2-Piece |
| Thread Sealant | Yes |
| Thread Size 1 | 1 1/2-11 1/2 NPTF |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
