Danfoss (Drives) 15610-08-08Z

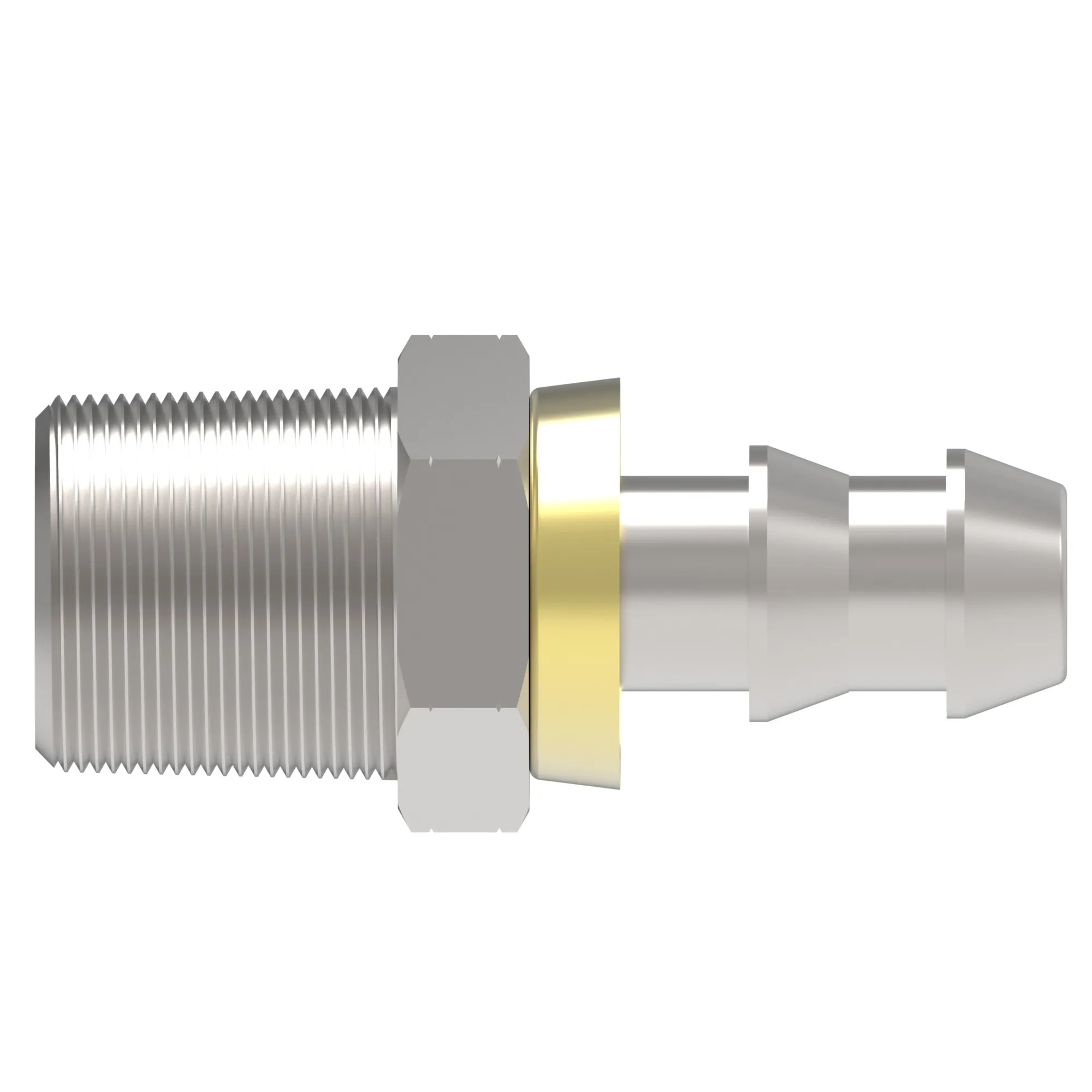

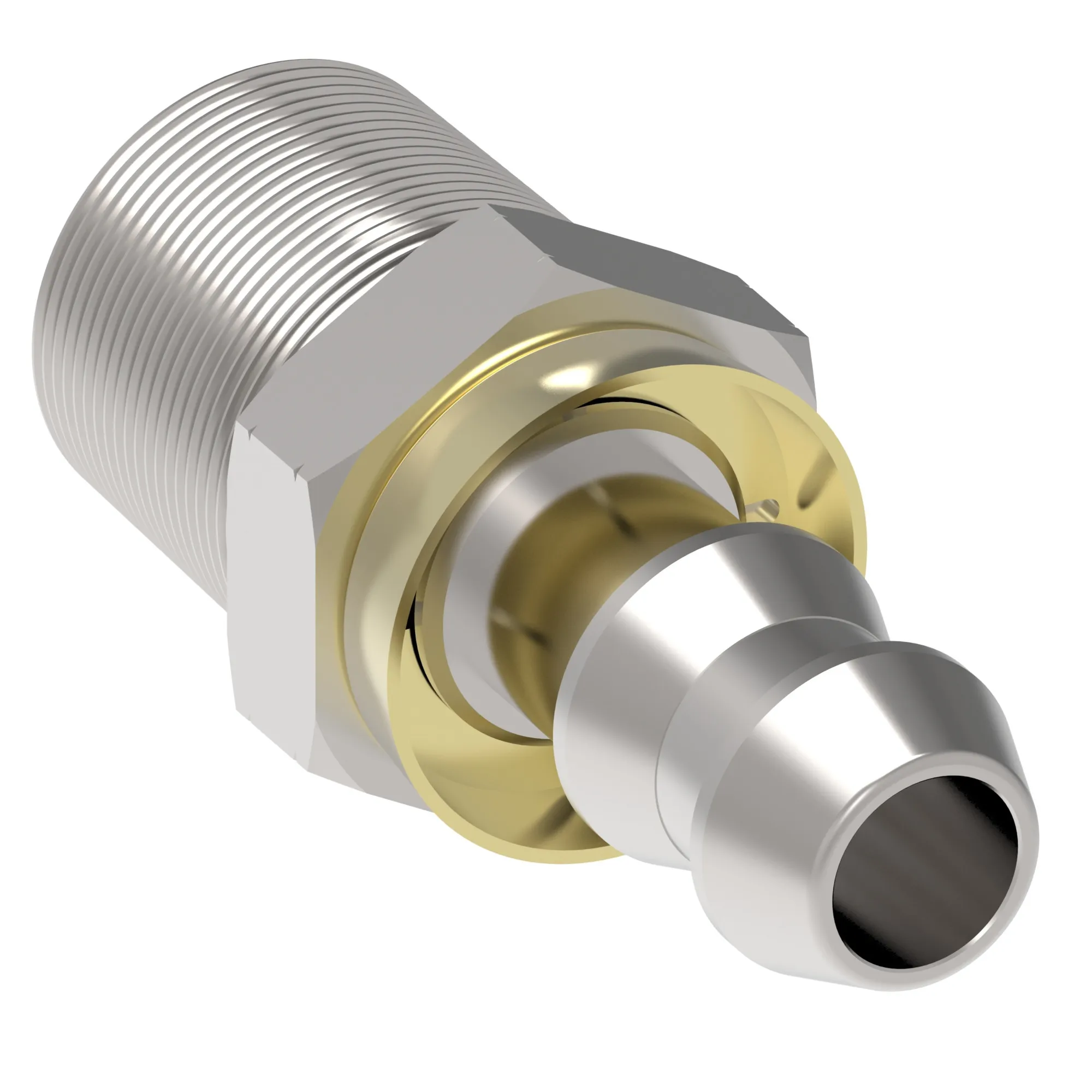

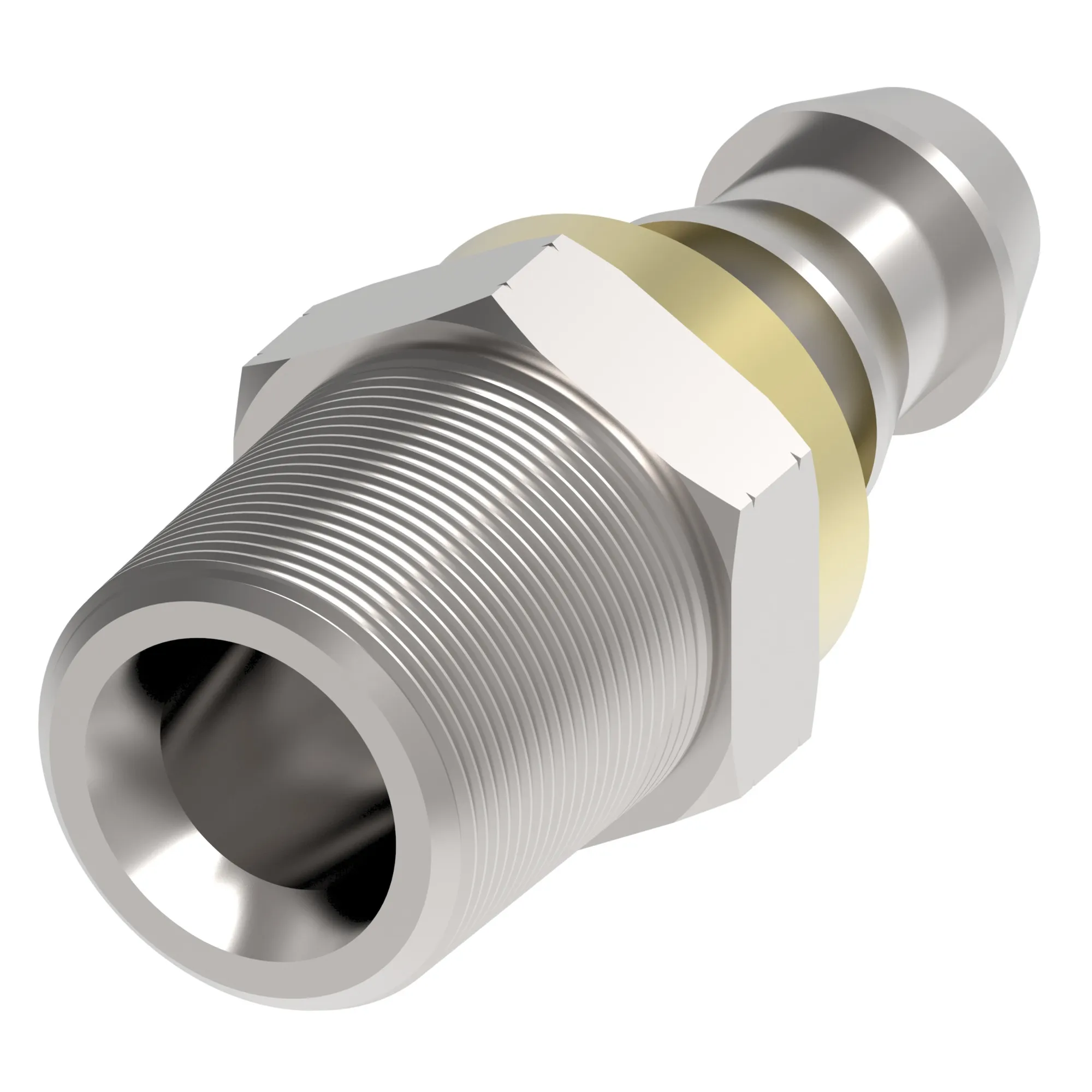

HOSE NIPPLE ASSY,2P/08,NPTF-M/08,CS,STR – 15610-08-08Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/08,NPTF-M/08,CS,STR – 15610-08-08Z
Specification
| A Dimension In | 2.180 |
|---|---|
| A Dimension Mm | 55.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Construction Style | Crimp |
| End Size 1 | -8 |
| End Size 2 | -8 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Male barb |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.866 |
| Hex Size 1 Mm | 22.000 |
| Hose Cut Off Factor In | 1.140 |
| Hose Cut Off Factor Mm | 29.200 |
| Hose Size | -8 |
| Inside Diameter In | 0.380 |
| Inside Diameter Mm | 9.900 |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 2.185 |
| Product Length Mm | 55.500 |
| Product Material | Carbon steel |
| Product Width In | 0.866 |
| Product Width Mm | 22 |
| Series | Winner 2-Piece |
| Thread Sealant | Yes |
| Thread Size 1 | 1/2-14 NPTF |
