Danfoss (Drives) 1531-16-03000
HOSE-AER, 1531, -16, 300IN, CL, AIR BK – 1531-16-03000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

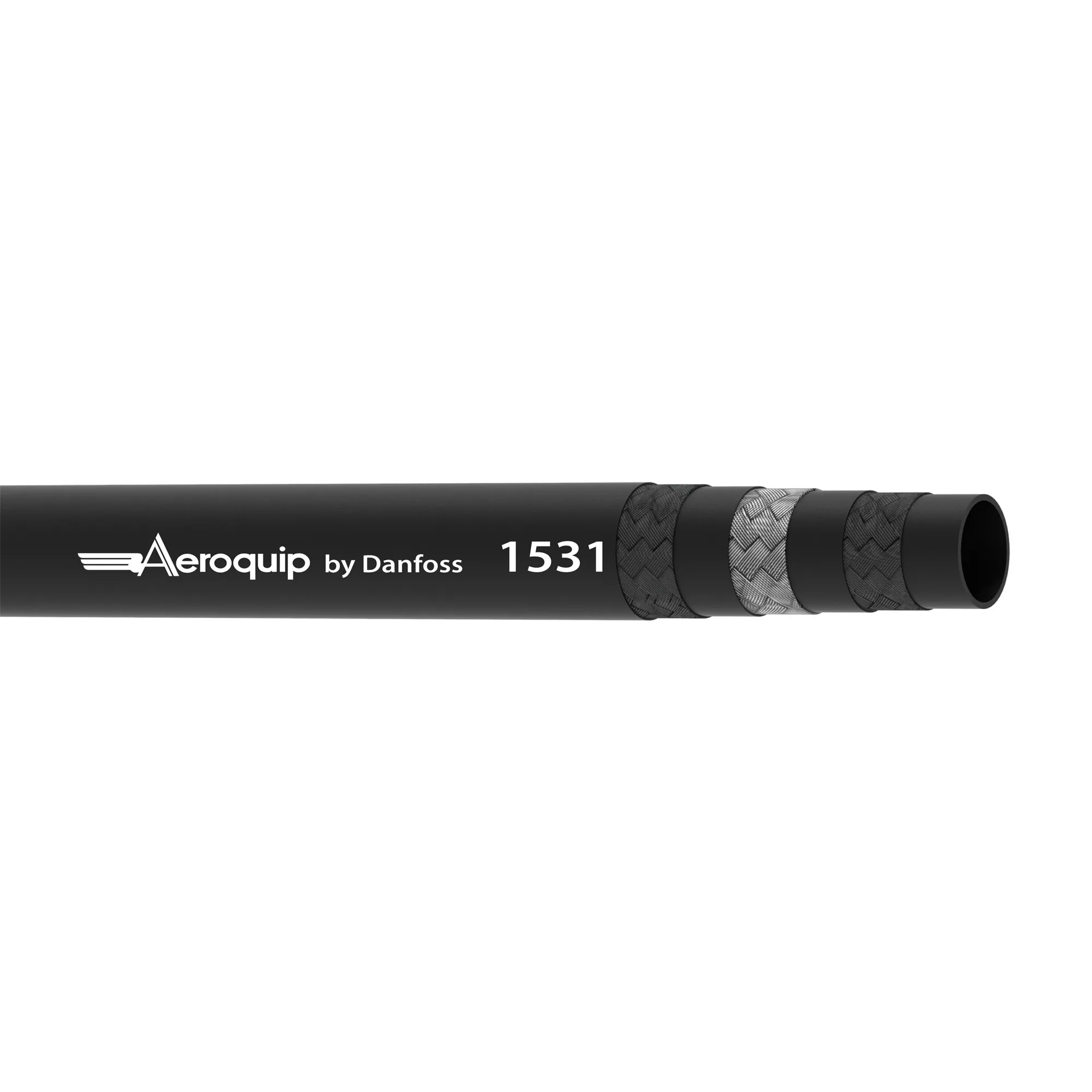

HOSE-AER, 1531, -16, 300IN, CL, AIR BK – 1531-16-03000
Specification
| Abrasion Resistance | Premium |
|---|---|
| Application | Locomotive air brake lines |
| Bend Radius Min (Inch) | 7.380 |
| Bend Radius Min (Mm) | 187.400 |
| Brand | Aeroquip by Danfoss |
| Burst Pressure (Bar) | 83 |
| Burst Pressure (Psi) | 1200 |
| Color | Black |
| Compliances | ASTM D471 |
| Conductivity | Conductive |
| Construction | 2 Wire Braid |
| Cover Material | Nitrile (NBR) |
| Inside Diameter (Inch) | 0.88 |
| Inside Diameter (Mm) | 22.20 |
| Lay Line Style | Ink jet |
| Length (In) | 300.00000 |
| Length (Mm) | 7620.00000 |
| Outside Diameter (Inch) | 1.38 |
| Outside Diameter (Mm) | 34.90 |
| Package Form | Cut length |
| Product Height In | 0.880 |
| Product Height Mm | 22.200 |
| Product Width In | 0.880 |
| Product Width Mm | 22.200 mm |
| Qualified Hose Fittings | NPT |
| Reinforcement Material | Brass plated steel wire |
| Series | 1531 Series |
| Size | -16 |
| Tube Material | Nitrile (NBR) |
| Working Pressure Max (Bar) | 21 |
| Working Pressure Max (Psi) | 305 |
| Working Temperature Max (C) | 100 |
| Working Temperature Max (F) | 212.0 |
| Working Temperature Min (C) | -56 |
| Working Temperature Min (F) | -65.0 |
