Danfoss (Drives) 151Z3278

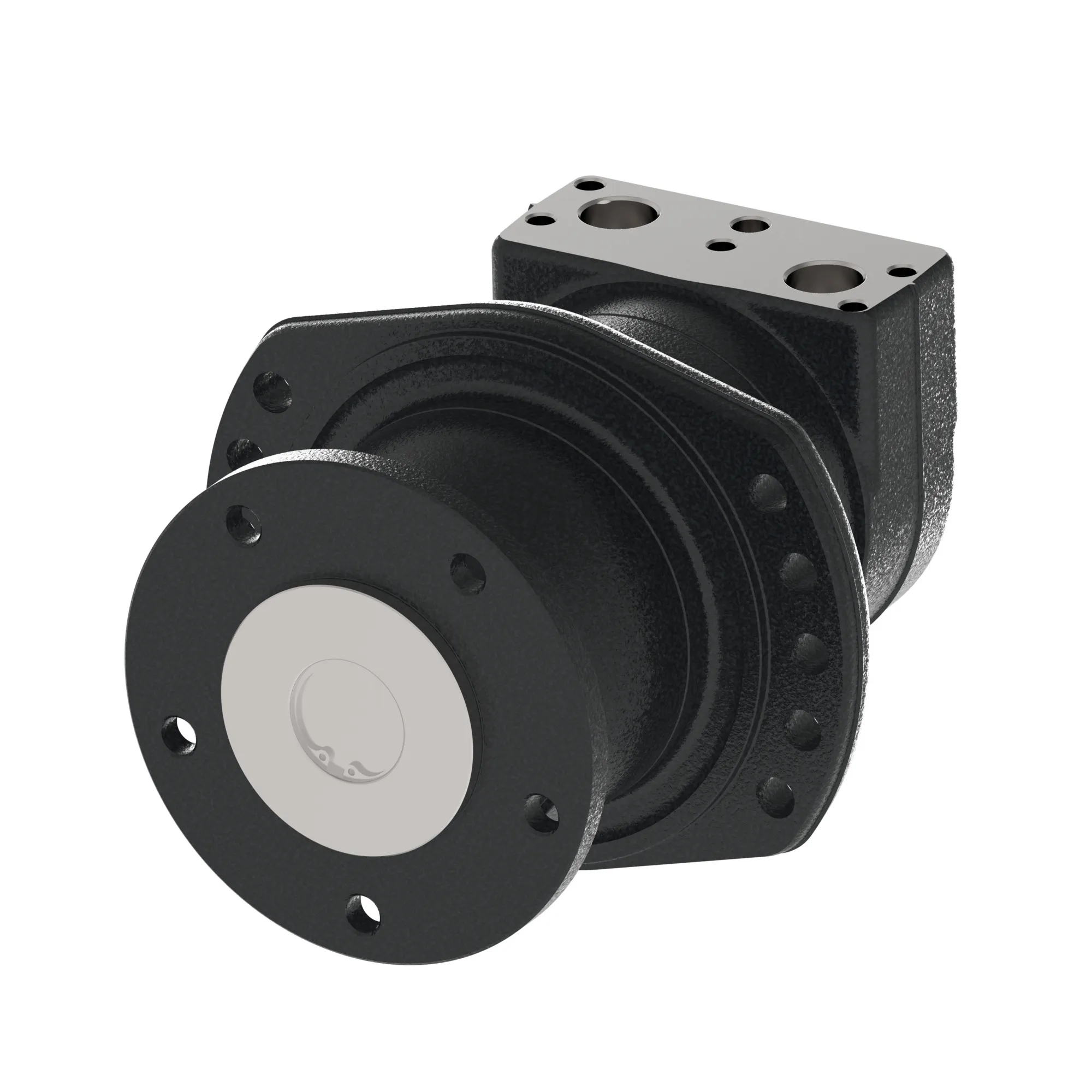

TMTW 630 HYDRAULIC MOTOR – 151Z3278
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TMTW 630 HYDRAULIC MOTOR – 151Z3278
Specification
| Model Code | TMT-0630-B-NN-W59-AV-2E-K10-A-E-2C-0-N-NN-AAE26-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | TMT Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 630 |
| Geometric Displacement [Cm3/R [In3/R]] | 629.1 [38.39] |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 10 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 180.0 x 5.0, 210.0, 14.2 [7.08 x 0.20, 8.27, 0.56] Rear: 180.0 x 5.0, 210.0, 14.2 [7.08 x 0.20, 8.27, 0.56] |
| Shaft Type | Wheel hub |
| Shaft Dimension | Thread Hole Flange: 5 x M12 x 1.5 – BCD 140 mm [5.5 inch] |
| Shaft Key | n/a |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port, – |
| Drain Port Dimension | 9/16 – 18 UNF-2B O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Painted, Black, Medium gloss |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | PU – ring |
| Shaft Seal | NBR – Standard |
| Seal Kit | 11112380 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 00 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
