Danfoss (Drives) 151Z3090

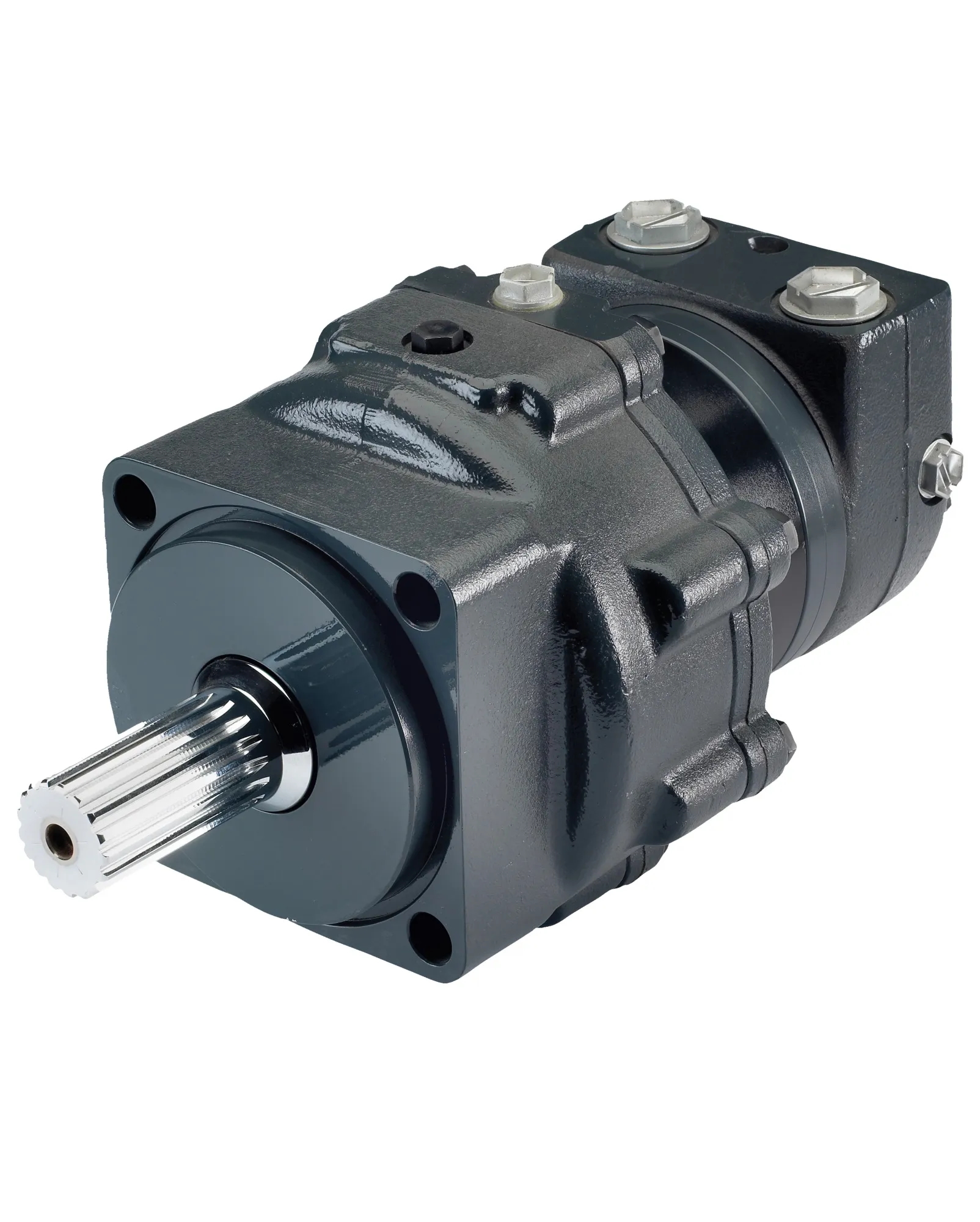

TMT 250 FL HYDRAULIC MOTOR, TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN – 151Z3090
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TMT 250 FL HYDRAULIC MOTOR, TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN – 151Z3090
Specification
| Brake Release Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring Port |
|---|---|
| Check Valve Function | No |
| Design Code | 00 |
| Drain Port Dimension | 9/16 – 18 UNF-2B O-Ring port |
| Dust Seal | Integrated in shaft seal |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 251.8 [15.37] |
| Hydraulic Valve Function | None |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port, – |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | UN / UNF |
| Model Code | TMT-0250-E-BA-C21-AV-2E-E27-A-B-2C-0-B-NN-NNNNN-NN-NN-NN-SP-NNN |
| Motor Function | Brake – Low release pressure |
| Motor Series | TMT Series |
| Motor Size | 250 |
| Motor Type | Motor – Brake |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.5, 161.9, 5/8 – 18 UNF [5.00 x 0.49, 6.37, 5/8 – 18 UNF] |
| Mounting Flange Type | 4 Bolt – C |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | n/a |
| Painted | No |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151Z2059 |
| Sensor | None |
| Shaft Dimension | Dia. 1 1/2 inch, 17T, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Shaft Seal | NBR – Standard |
| Shaft Type | Splined |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
